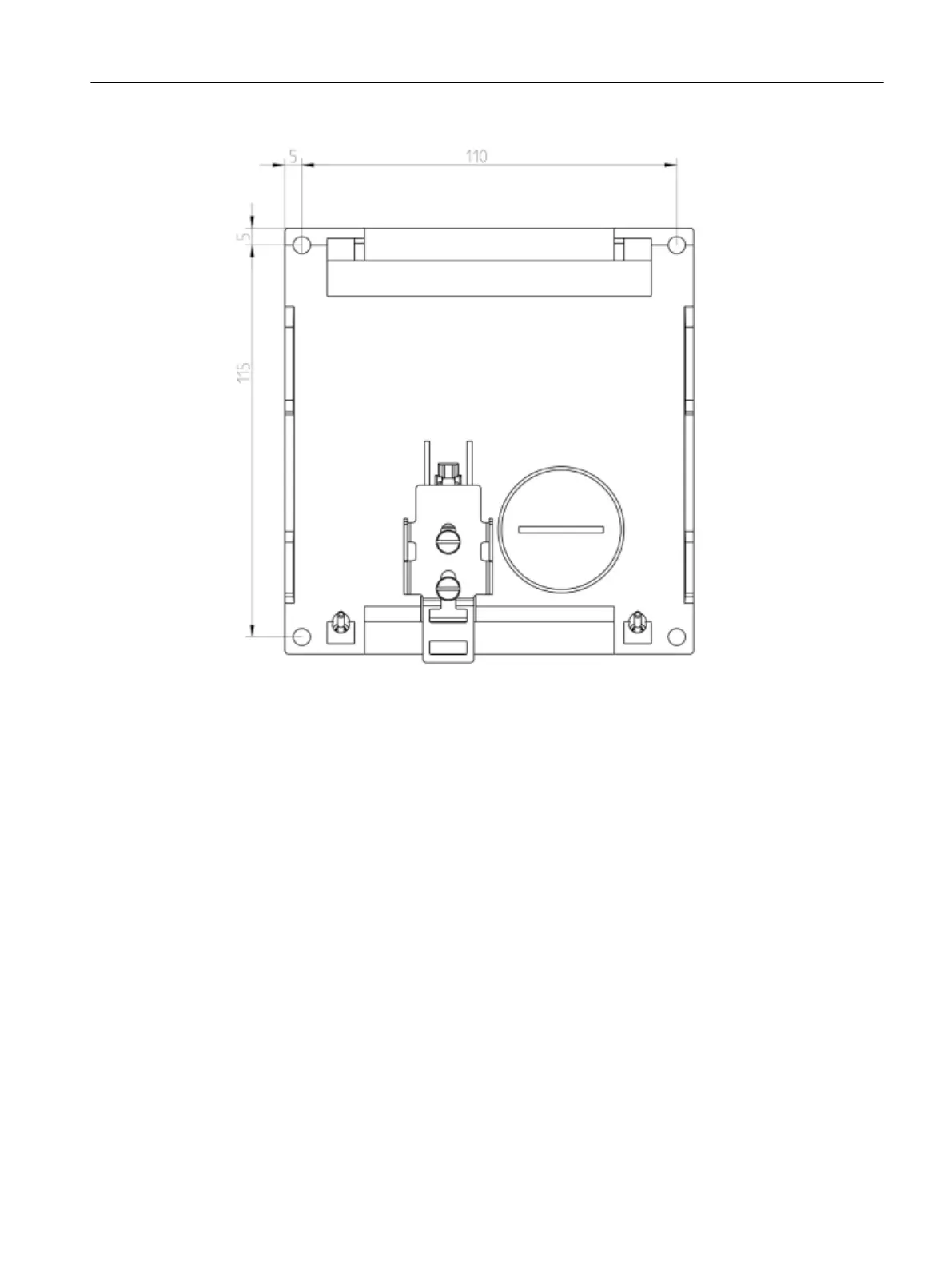

Figure 8-4 Medium design dimension drawing (IE Switch X-300)
Dimension drawings
SCALANCE X-300
Compact Operating Instructions, 11/2019, A5E00982643-18 71
