Assembly
SICAM TM, Installation 39
DC6-015-2.04, Edition 10.2014
3.7.3. Connection

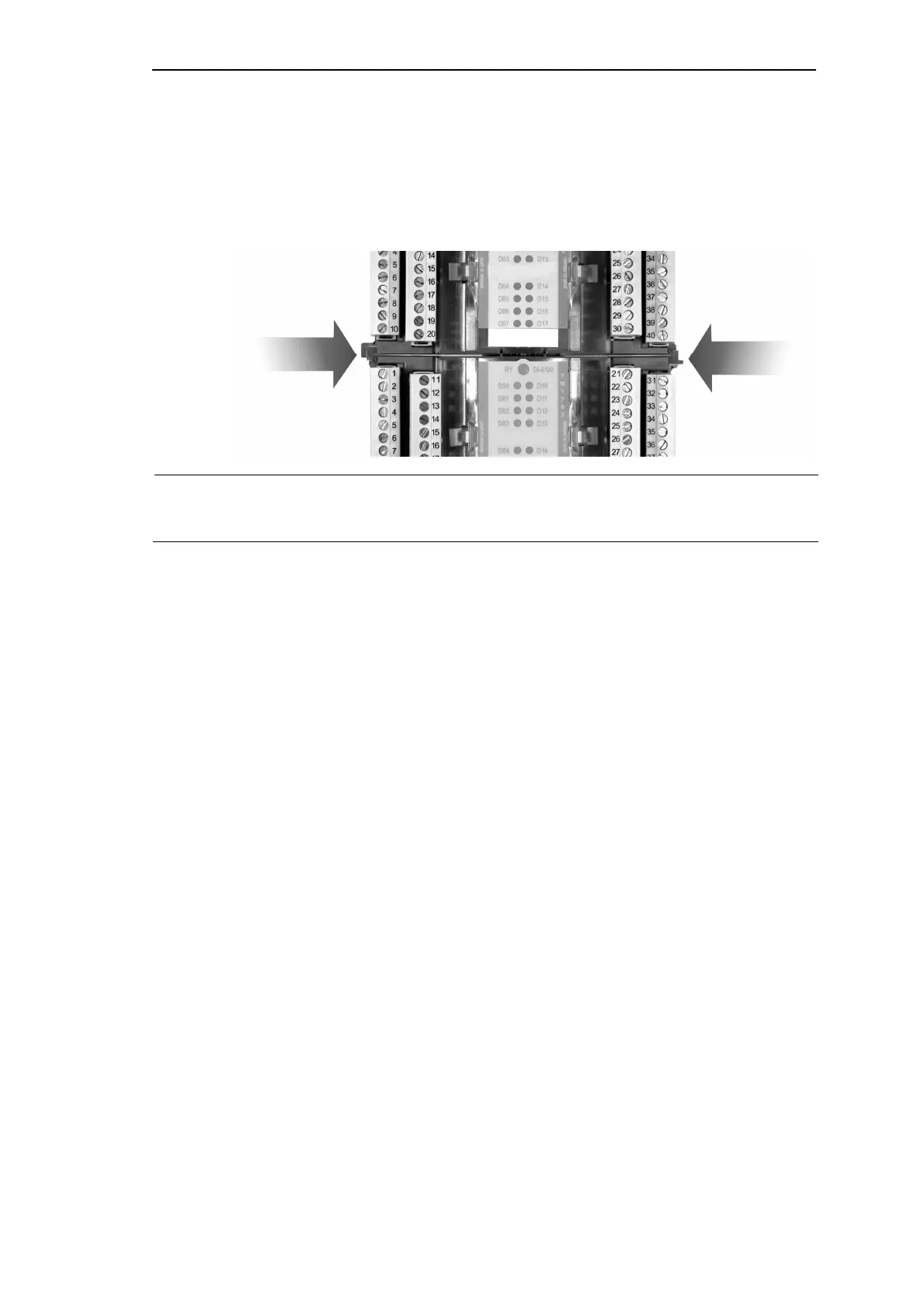

Modules that are adjacent to each other are mechanically connected with each other by
means of the guides at the corners of the housing.
Caution
The housing form of older TM modules does not provide sufficient protection against incorrectly positioned
installation. Therefore pay attention to the correct alignment if you install such modules.
It is correct, when with vertical installation position of the system, the lettering on the front
panel can be read from left to right. With horizontal installation position of the system, it must
be possible to read the lettering on the front panel from botton to top.
