4.2.1. Opening the Housing

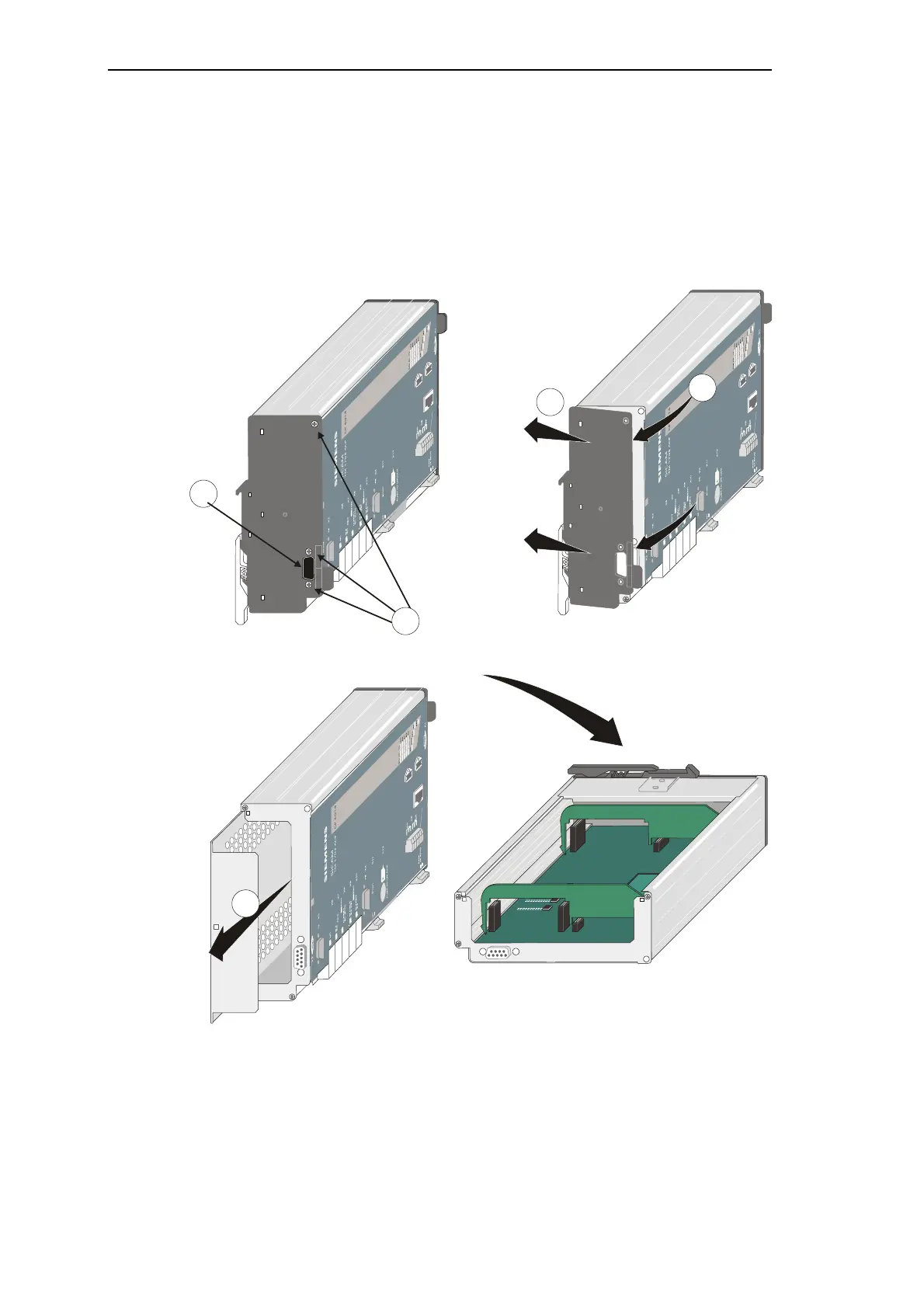

First the dust protection cap must be removed from the D-Sub connector (X2)  and the
screws removed marked with Point . Then the red plastic side panel can be removed by
carefully bending it away from the front side of the housing  and detaching it from the
mounting with a push to the rear . Now the back panel of the housing  can be removed
and one can begin with the installation of the SIMs.
