Wiring Process Peripherals
SICAM TM, Installation 85
DC6-015-2.04, Edition 10.2014
9.2. Peripheral Connector
Terminal Type Designation Lead Exit Cross-section
Screw terminal included in delivery side up to 2.5mm²
up to 1.5mm²
1)
Spring-loaded
terminal
Phönix
FKC 2.5/10-ST-5.08 above up to 2.5mm²
up to 1.5mm²
1)
Crimp terminal
Crimp contact
Phönix
MSTBC 2.5/10-STZFD-5.08
MSTBC-MT 1.5-2.5
above 1.5mm² to 2.5mm²
1.5mm²
2)
1.0mm²
3)
1)
When using a jumper with 0.75mm² or a bridging cable fan
(see: External wiring in 3-wire technique)
2)
Jumper with 0.75mm²
3)
Jumper with 1.00mm²

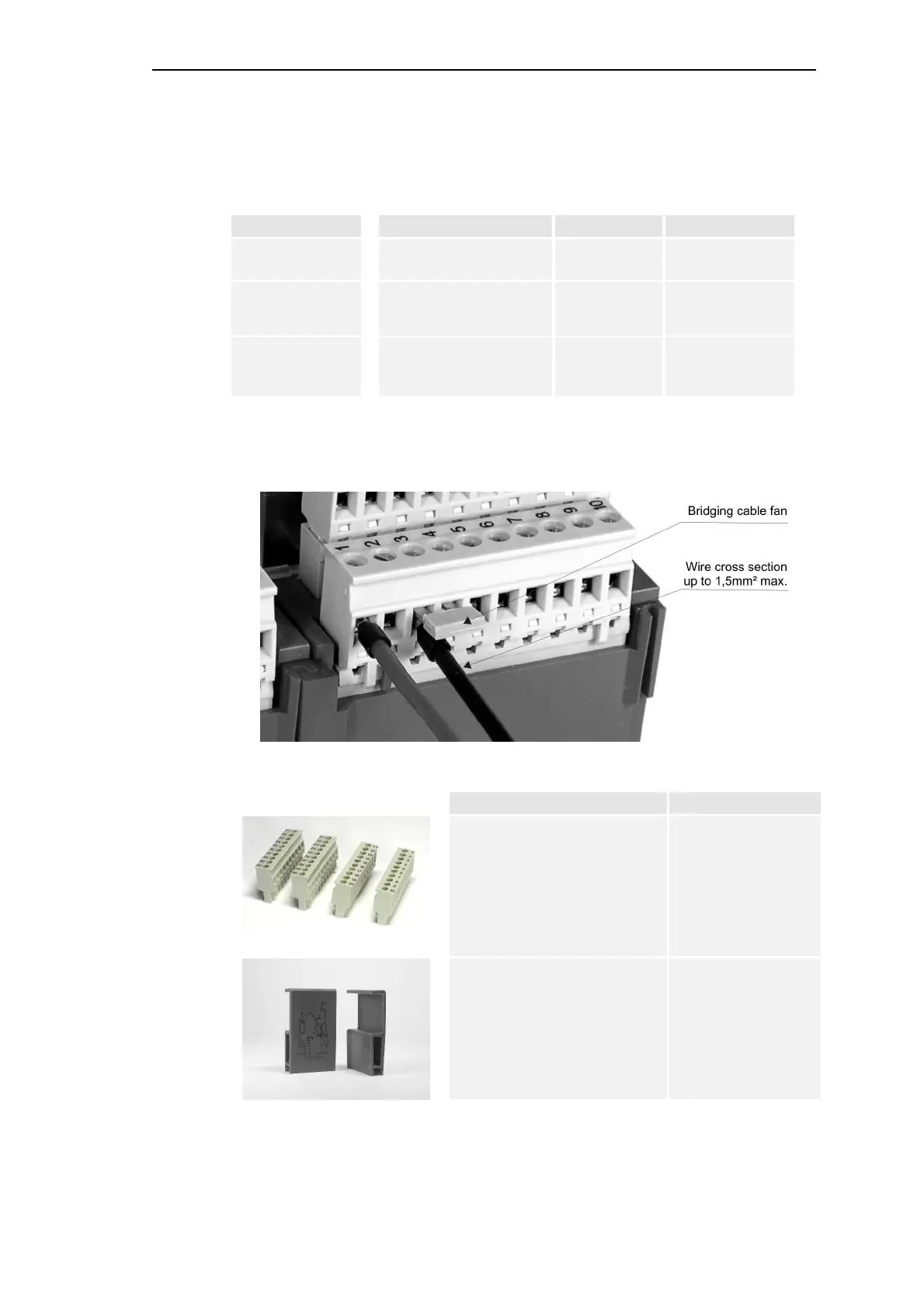

External wiring in 3-wire technique
Designation Item Number / MLFB
Labeled screw terminal (1-10);
without coding
Labeled screw terminal (11-20);
without coding
Labeled screw terminal (21-30);
without coding
Labeled screw terminal (31-40);
without coding
Withdrawal aid for terminals TC6-200
6MF13130GC000AA0
