7.5 4/8 F-DI DC24V PROFIsafe Digital Electronic Module
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
123
The wiring is carried out on the appropriate terminal module.
)',
/ 0 ', ', ', ', ', ', ', ',9V 9V
/ 0
6
6
6
6
30(
7KHOHIWKDQGFKDQQHOVRQWKH)PRGXOHVXSSO\WKHZDQWHGVLJQDOV

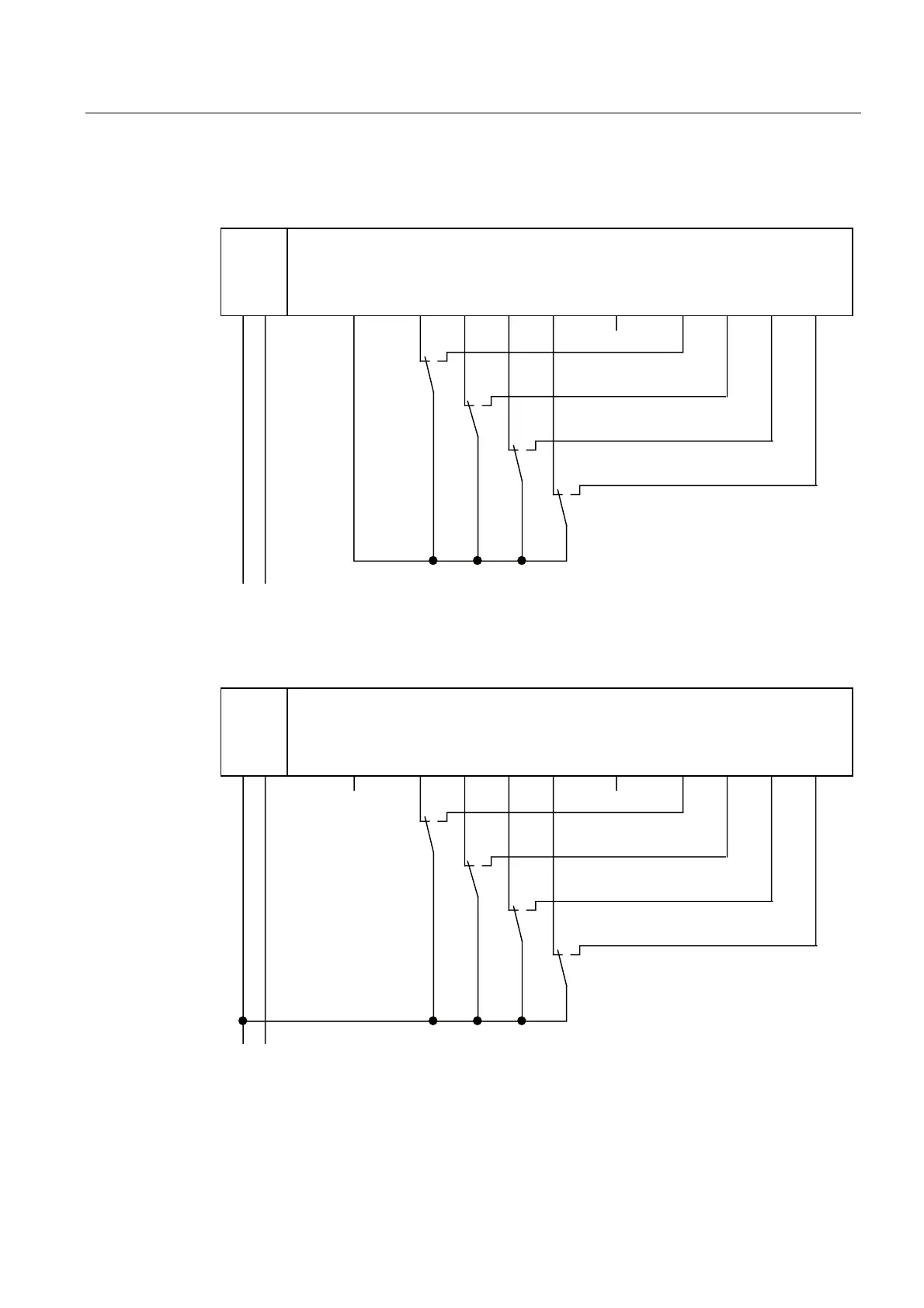

Figure 7-26 Wiring diagram EM 4/8 F-DI DC24V - a nonequivalent 2-channel sensor connected via
two channels non-equivalently, internal sensor supply
)',
/ 0 ', ', ', ', ', ', ', ',9V 9V
/ 0
6
6
6
6
30(
7KHOHIWKDQGFKDQQHOVRQWKH)PRGXOHVXSSO\WKHZDQWHGVLJQDOV
Figure 7-27 Wiring diagram EM 4/8 F-DI DC24V - a non-equivalent sensor connected via two
channels non-equivalently, external sensor supply
