ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
19
Configuring
2
2.1 Configuring ET 200S with Fail-Safe Modules
Introduction
The ET 200S distributed I/O systems support configurations with standard and fail-safe
modules. This chapter presents an example configuration.
Configuration example of ET 200S with Fail-Safe Modules
In the following figure you will find a configuration example using standard and fail-safe
modules in an ET 200S. You
can
divide and install the modules in fail-safe and standard
potential groups. A new potential group always begins with a power module.
30
()
(76
,0
+)
30 )',
)'2 ',
$2
$,
',
', '2'2'2 0630
'
'2
'2
)0
)DLOVDIHPRGXOH
7HUPLQDWLQJPRGXOH
1 2
3
① Fail-safe and standard potential groups mixed
② Fail-safe potential group
③ Standard potential group

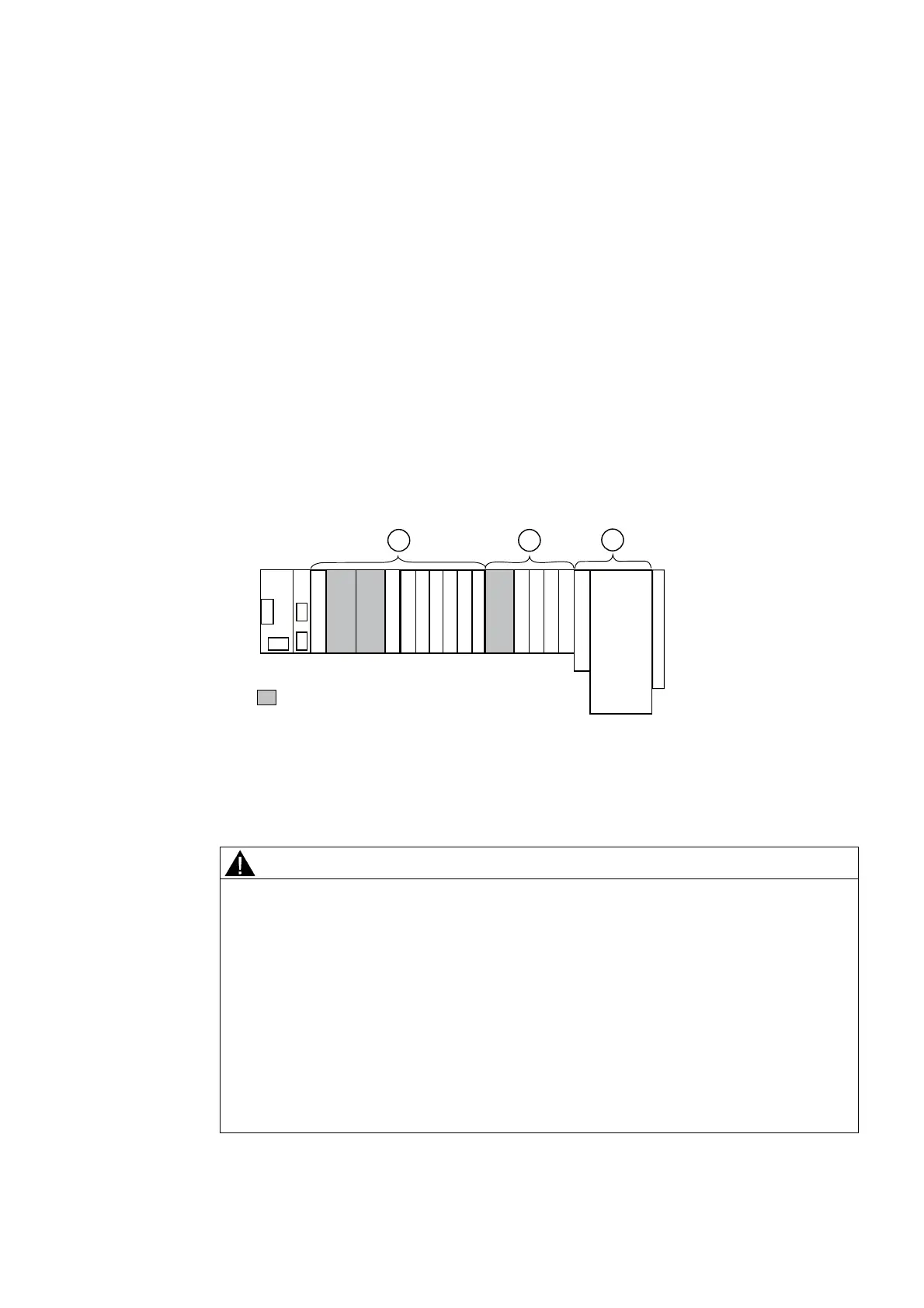

Figure 2-1 ET 200S Configuration Example with Fail-Safe Modules
WARNING
If the implemented standard module has electrical isolation of ≥ 60 VAC / 75 VDC and test
voltage of 500 VDC, it is possible to mix F-DI-/F-DO modules and standard DI-/DO-/FM
modules within one potential group as of the following MLFBs for the SIL3/Category 4/PLe:
• 6ES7138-4CF03-0AB0
• 6ES7138-4CF42-0AB0
• 3RK1903-3BA02
• 6ES7138-4FA04-0AB0
• 6ES7138-4FC01-0AB0
• 6ES7138-4FB03-0AB0
• 6ES7 138-4FR00-0AA0
For the predecessor modules, you can achieve SIL2/Category 3/PLd with a mix of F-DI-/F-
DO modules and standard DI-DO modules.
