Siemens SIMATIC ET 200S - Terminal Assignment of EM 1 F-RO DC24 V;AC24

Fail-Safe Modules
7.8 1 F-RO DC24V/AC24..230V/5A Digital Electronic Module
ET 200S Distributed I/O System - Fail-Safe Modules
178 Installation and Operating Manual, 08/2008, A5E00103686-07
7.8.2 Terminal assignment of EM 1F-RO DC24V/AC24..230V/5A
Front view
6WDWXVGLVSOD\IRU
RXWSXWJUHHQ

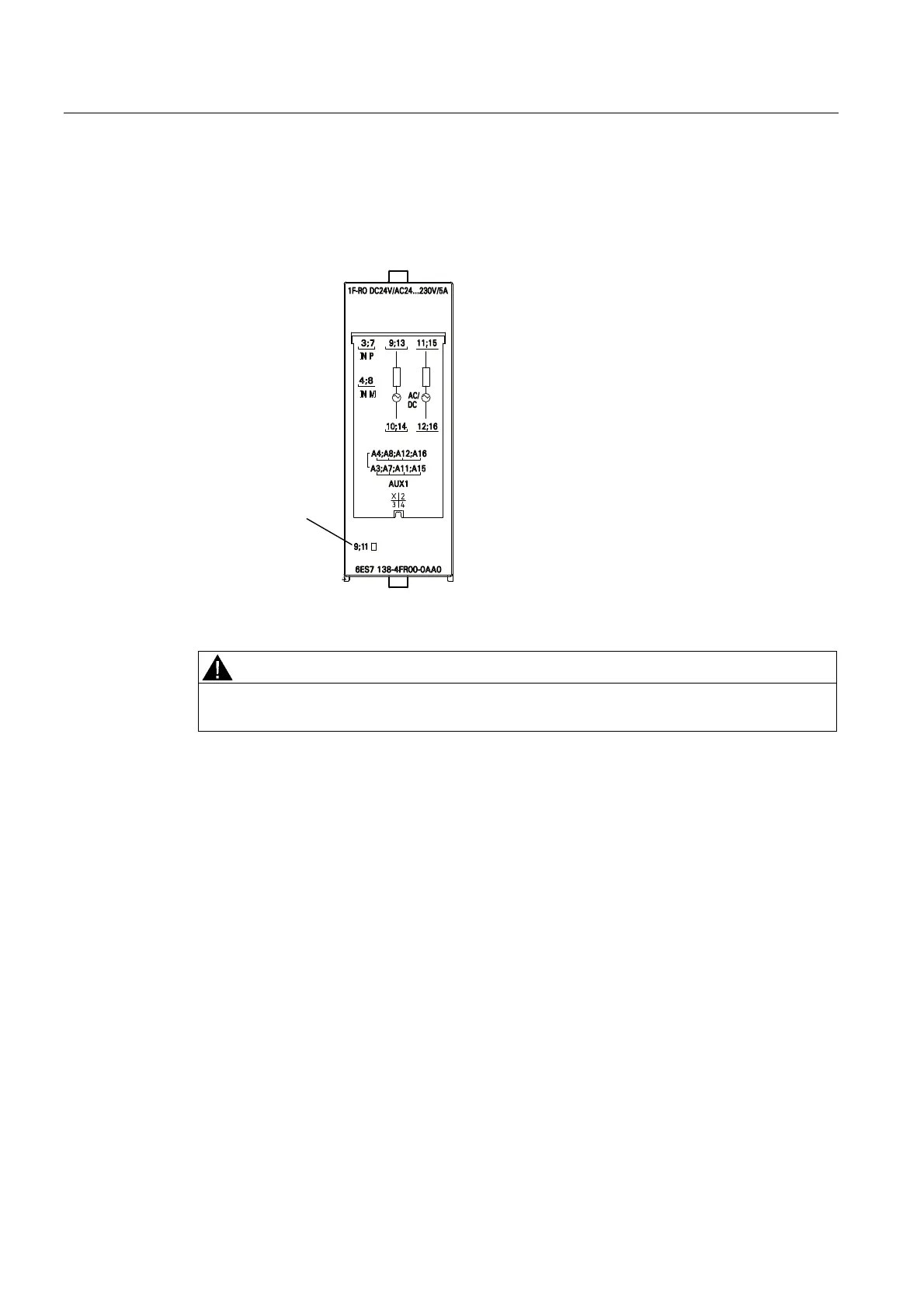

Figure 7-54 Front view EM 1 F-RO DC24V/AC24..230V/5A
WARNING
The status display of the output is not designed for safety-related functions and may
therefore not be evaluated for safety-related activities.
