Fail-Safe Modules
7.8 1 F-RO DC24V/AC24..230V/5A Digital Electronic Module
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
179
Terminal assignment

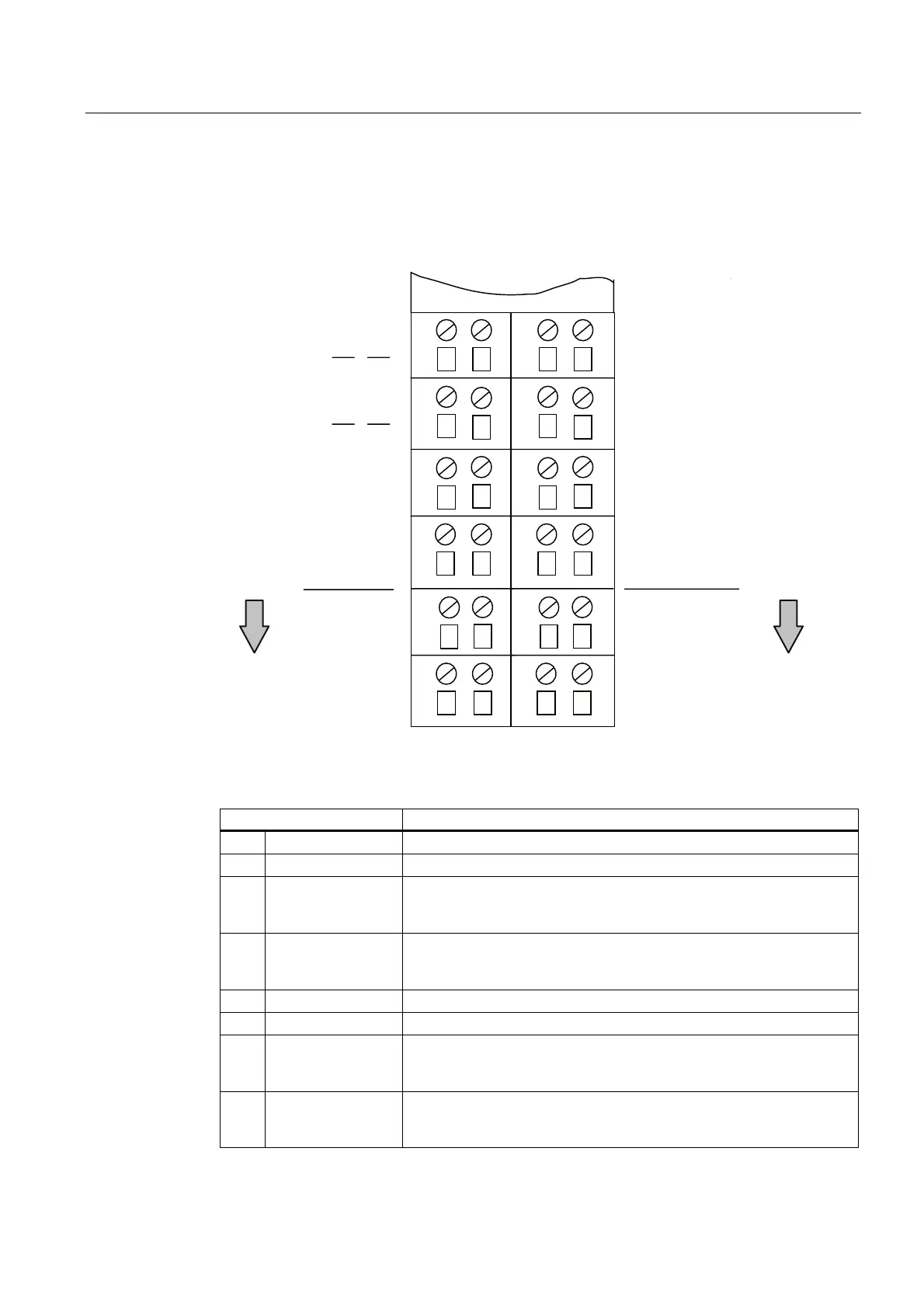

The figure below shows the terminal assignment of the EM 1 F-RO DC24V/AC24..230V/5A
for the supported terminal module TM-E30S44-01, TM-E30C44-01, TM-E30S46-A1 and TM-
E30C46-A1.
,10,10

$8;$8;3( 
$8;$8;3( 
,13,13
  

















$
$
$
$
$
$ $
$

$8;$8;3( 
$8;$8;3( 
287287


287287

287287


287287

70($

70($

Figure 7-55 Terminal assignment TM-E...44-01/TM-E...46-A1 for EM 1 F-RO DC24V/AC24..230V/5A
Table 7- 38 Terminal assignment of the TM-E...44-01/TM-E...46-A1
Terminal Designation
3 IN P Terminal for 24 VDC control voltage
4 IN M Terminal for control voltage ground
A4 AUX 1 At TM-E...46-A1: AUX 1 bus implemented. Connection to terminals A3
to A16 for any PE connection.
Individual grouping of load current supplies is supported.
A3 AUX 1 At TM-E...46-A1: AUX 1 bus implemented. Connection to terminals A3
to A16 for any PE connection.
Individual grouping of load current supplies is supported.
7 IN P Terminal for 24 VDC control voltage
8 IN M Terminal for control voltage ground
A8 AUX 1 At TM-E...46-A1: AUX 1 bus implemented. Connection to terminals A3
to A16 for any PE connection.
Individual grouping of load current supplies is supported.
A7 AUX 1 At TM-E...46-A1: AUX 1 bus implemented. Connection to terminals A3
to A16 for any PE connection.
Individual grouping of load current supplies is supported.
