Getting Familiarized with the SIMATIC Field PG
2-3
SIMATIC Field PG Manual
A5E00075760-04

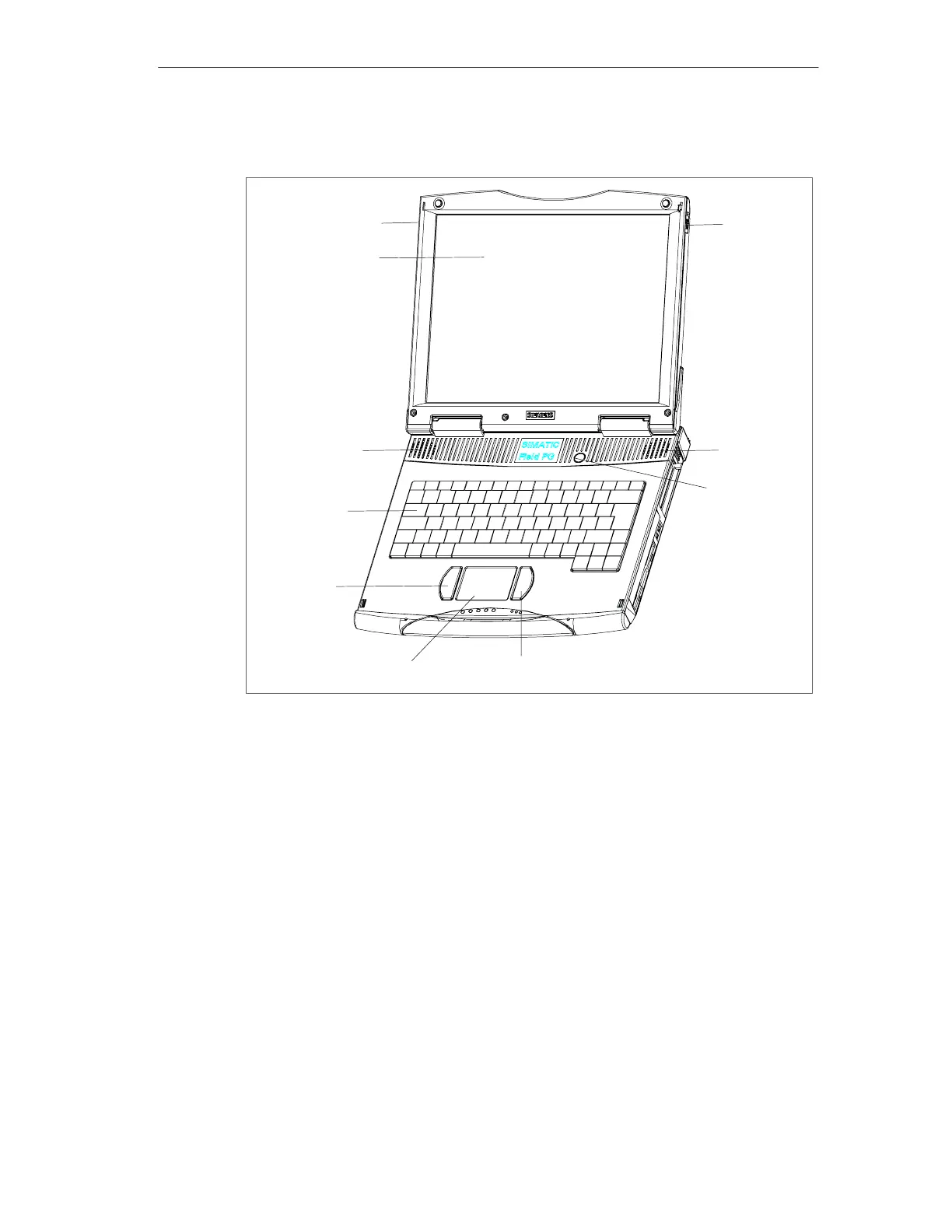

Front view with open display
1
3
2
5
7
4
4
6
7
2
1 Display
The Field PG’S 14.1” TFT display has a resolution of 1024 x 768 pixels with up to
256k colors.
2 Stereo Loudspeaker
The speaker outputs audio and system alarm signals generated by the software.
The loudness is adjusted via speaker icon in the task bar or in the Windows Start
menu via Programs > Accessories > Multimedia > Loudness.
3 Keyboard
The keyboard is split into three key areas: the alphanumerical keyboard with
special keys, the function keys and the control keys.
4 Mouse buttons
You can use the left or right mouse button to select menu items or process text or
graphic objects after having marked the respective object.
