Getting Familiarized with the SIMATIC Field PG
2-6
SIMATIC Field PG Manual
A5E00075760-04

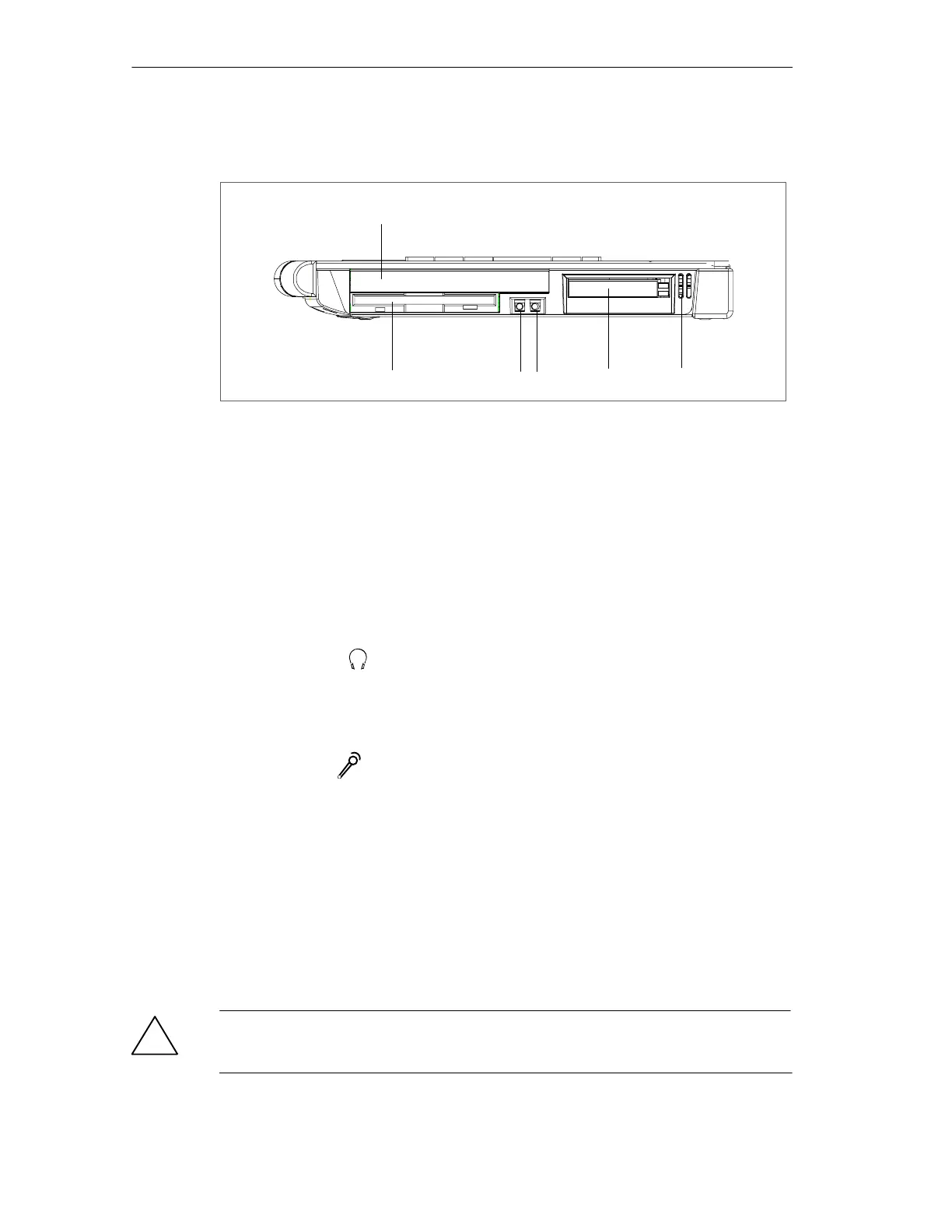

View of the right side
1
632
54
1 Optical drive
Depending on the device configuration, it can come with a CD-ROM, a DVD-ROM
or a DVD-ROM/CD-RW drive. For example, you can read the electronic manual of
the supplied ”Backup PG” CD with this drive.
2 Floppy disk drive
Depending on the device configuration, a standard floppy disk drive (1,44 MB), a
Superdisk LS120 or a Superdisk LS240 drive is built in. 3.5” diskettes (of 1.44 MB)
and Superdisks (up to 120 MB) can be used with the LS120 drive. For LS240,
additional Superdisks up to 240 Mbyte are required.
3 Headphones
You can connect an external stereo headphone or another audio output device to
this headphone jack. The internal speaker is automatically disabled when a
headphone is connected.
4 Microphone
You can connect an external microphone or another audio output device to this
microphone jack.
5 PCCard slot
The PC-Card slot accepts Cardbus (32 Bit) and PCMCIA (16 bit) cards. You can
plug in credit card-size communication modules for MODEM, FAX-MODEM, ISDN,
Token Ring, ETHERNET, memory expansions and SCSI interfaces. CardBus
Cards are not supported by Windows NT.
6 Air venting slots
Here is the ventiduct.
!
Caution
The ventiducts for incoming and outgoing air must not be obstructed. Otherwise,
there is a risk of overheating.
