Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
104 Operating Instructions, 07/2017, A5E36770603-AB
8. If the printer selected can print in color and you wish it to do so, select the "Color" check
box.
9. If you use a Brother HL 2700 printer, select the "CMY" check box.
This allows you to improve the color quality for the printed pages.
10. Confirm your entries with "OK".
The dialog closes.
The printer is now set as specified.
4.3.6.9
Displaying general system properties
Use this function to display the general system information relating to the operating system,
processor and memory. You will need this information when contacting Technical Support
(Page 231).
Requirement
The Control Panel is open.
Procedure
Open the "System Properties" dialog using the "System" icon.

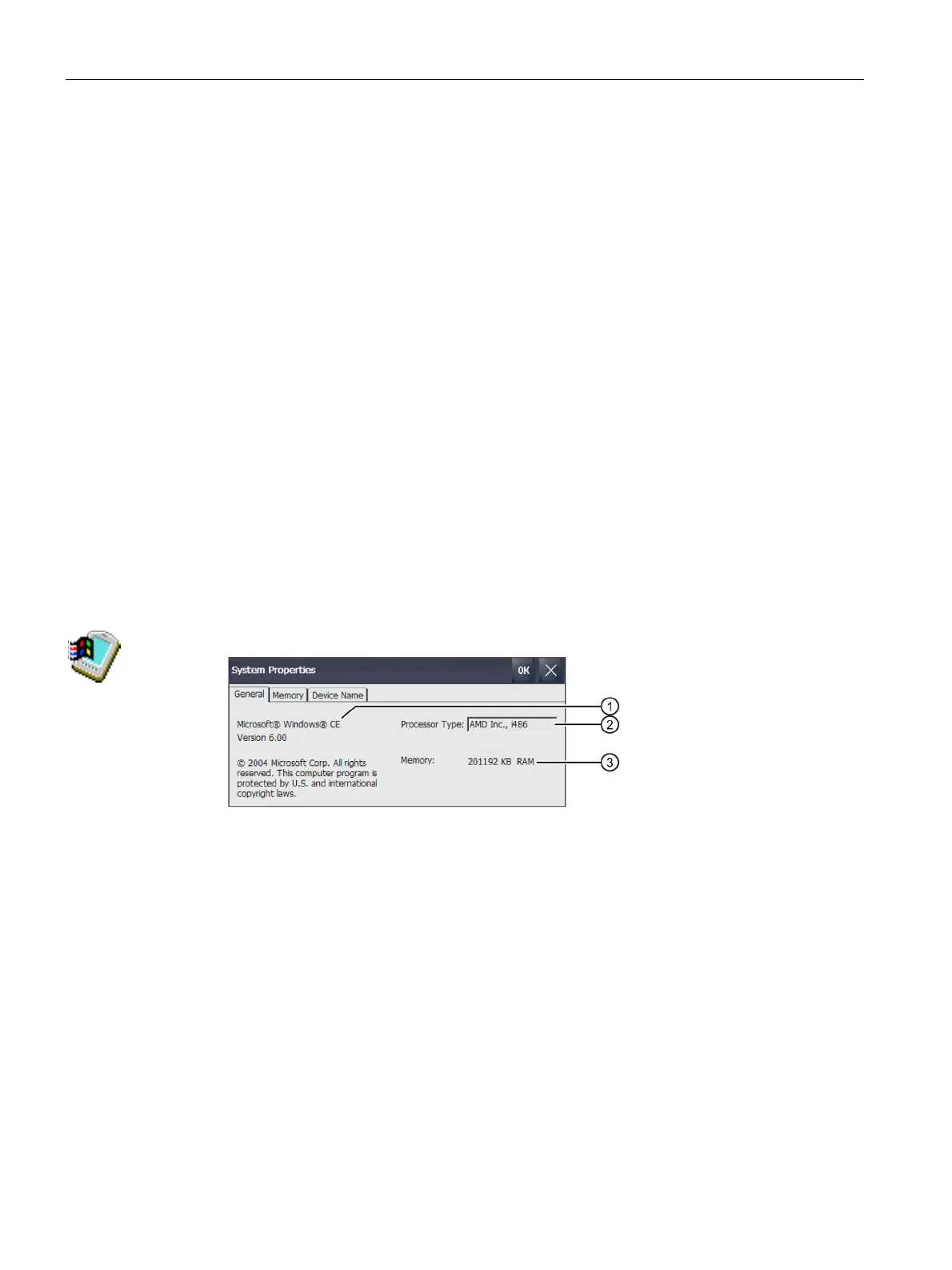

The figure below shows an example for a Comfort V1 device.
Information on the version and the copyright of the operating system
Processor information
Information on the size of the RAM
The displayed data relates to the specific device. The processor and memory information
may deviate from that for this HMI device.
