Mounting and connecting the HMI device
3.2 Mounting the device
Comfort Panels
42 Operating Instructions, 07/2017, A5E36770603-AB
3.2
Mounting the device
Positions of the mounting clips
To achieve the degree of protection for the HMI device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Insert mounting
clips in all stamped cutouts.

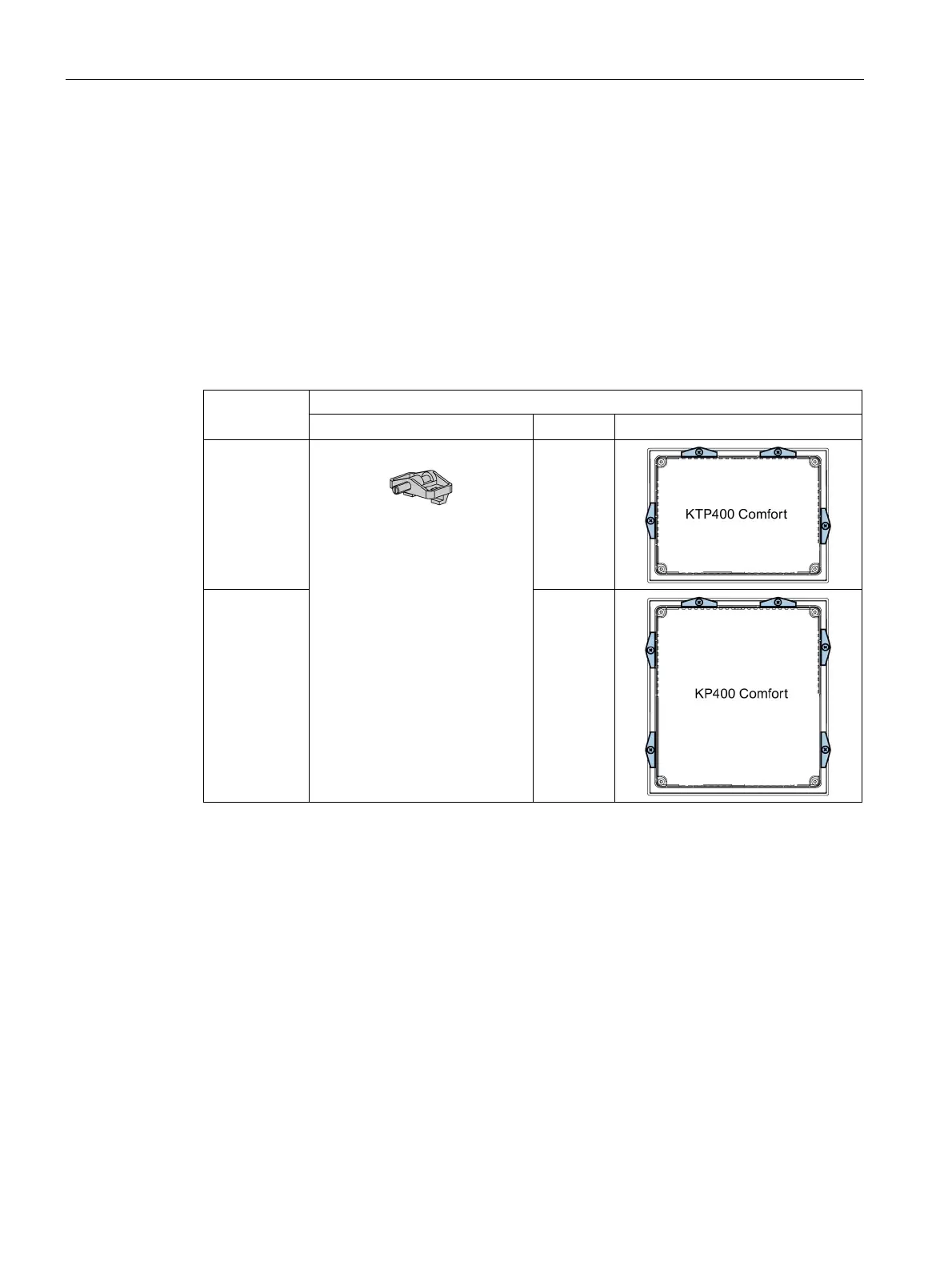

The following table shows the type, number and position of the mounting clips needed for the
respective HMI devices.
Comfort
HMI device
Mounting clips
Type
Quantity
Position on the HMI device
KTP400 Plastic mounting clips 4
KP400 6

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
