Mounting and connecting the HMI device
3.2 Mounting the device
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
43

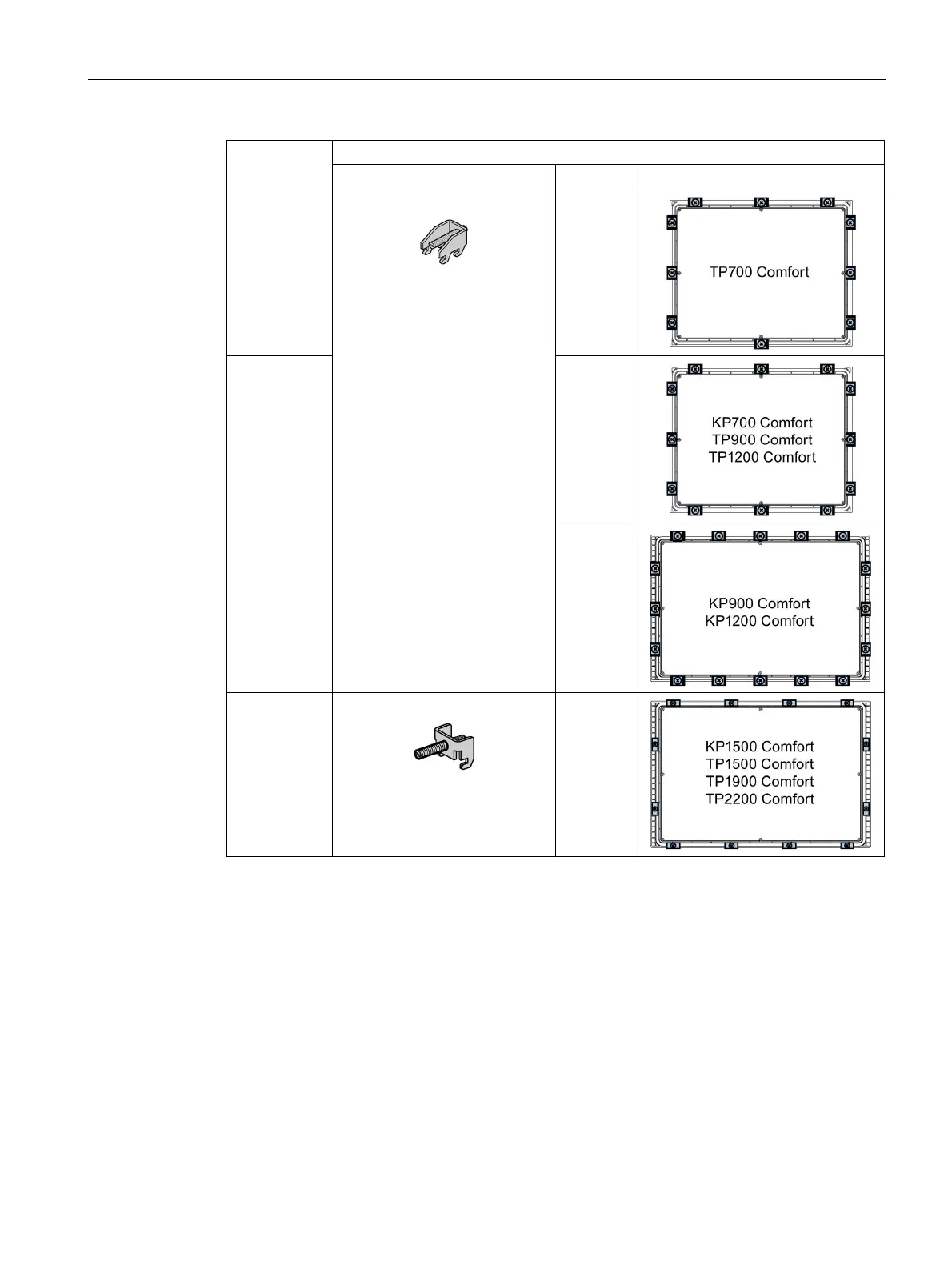

Comfort
HMI device
Mounting clips
Type
Quantity
Position on the HMI device
TP700 Aluminum mounting clips
10
KP700
TP900
TP1200
12
KP900
KP1200
16
KP1500
TP1500
TP1900
TP2200
Steel mounting clips
12
Requirement
● All packaging components and protective films were removed from the HMI device.
● To install the HMI device, you need the mounting clips from the accessories kit.
● The mounting seal must be installed on the HMI device.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Siemens SIMATIC HMI TP700 Comfort and is the answer not in the manual?

Siemens SIMATIC HMI TP700 Comfort Specifications

General IconGeneral
Display Size7 inches
Resolution800 x 480 pixels
Power Supply24 V DC
Number of Colors16 million
Brightness400 cd/m²
TouchscreenYes, analog resistive
Flash Memory12 MB
Protection RatingIP65 (front)
Display TypeTFT
Protection ClassClass III
Memory1 GB Flash
Storage12 MB Flash
Weight1.2 kg
Power Consumption12 W
Interfaces1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
