Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
87
4.3.5.5
Setting the double-click
You start applications in the Control Panel and in the operating system with a double-click.
A double-click corresponds to two brief touches.
In the "Mouse Properties" dialog, make the following settings for operation with the touch
screen:
● Interval between two touch contacts on the touch screen
● Interval between the two clicks of a double-click
Requirement
The Control Panel is open.
Procedure

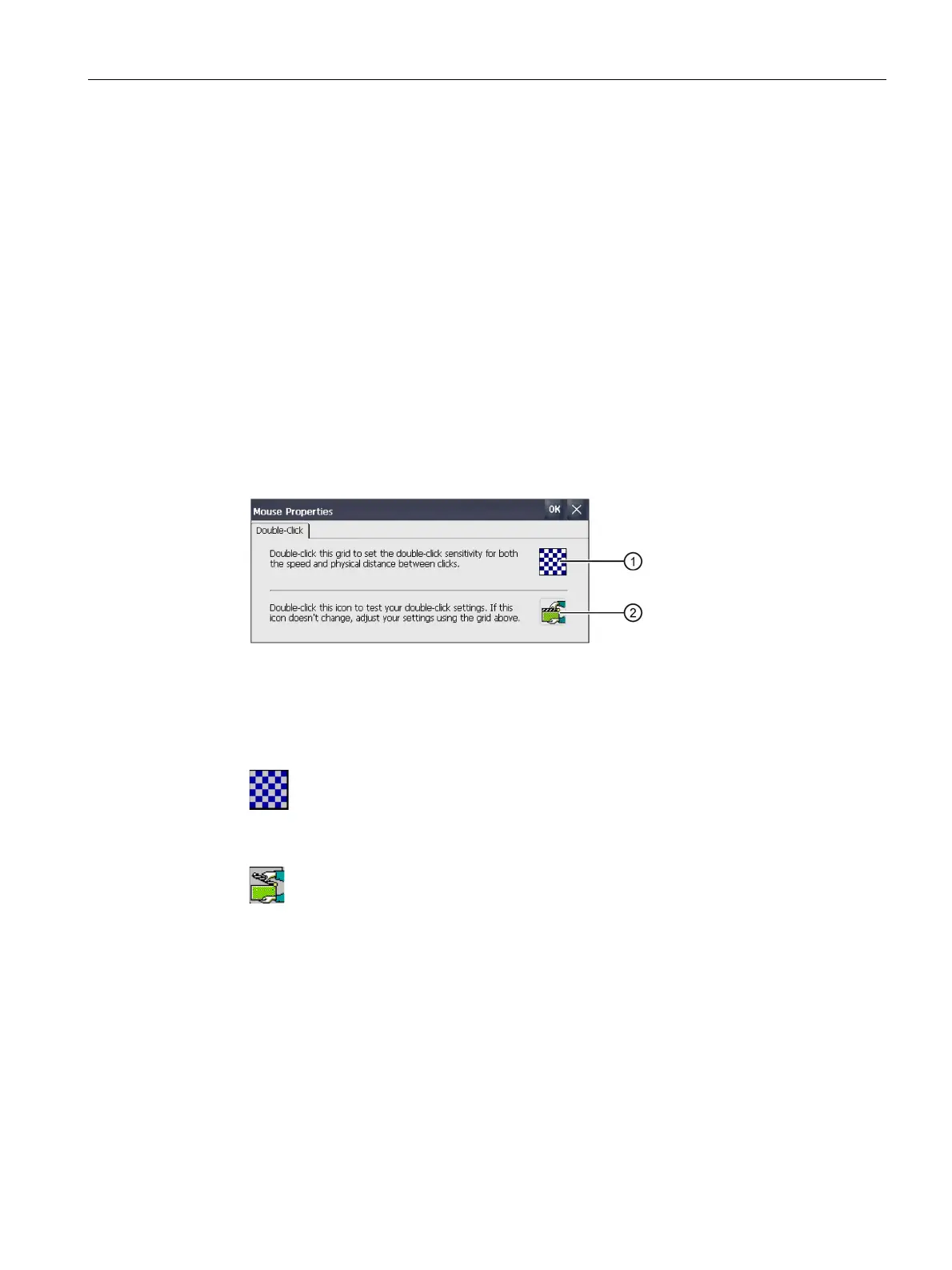

1. Open the "Mouse Properties" dialog using the "Mouse" icon.
①
"Checkered pattern" icon
②
"Test" icon
2. Double-click the "Checkered pattern" icon.
After the double-click, the colors in the pattern are inverted. White boxes become gray.
The timeframe for the double-click is saved.
3. Check the double-click: Press the "Test" icon twice in succession. If the double-click is
recognized, the "Test" icon is displayed as follows:
4. Repeat steps 2 and 3 as necessary until the settings are okay.
5. Confirm your entry with "OK".
The dialog closes.
The double-click adjustment is completed.

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
