1.5 The HMI device in the operating process
Comfort Panels
24 Operating Instructions, 07/2017, A5E36770603-AB
1.5
The HMI device in the operating process
The HMI device is part of the operating process. The following two phases are key to the
way the HMI device is integrated in the process:
● Configuration
● Process management
Configuration

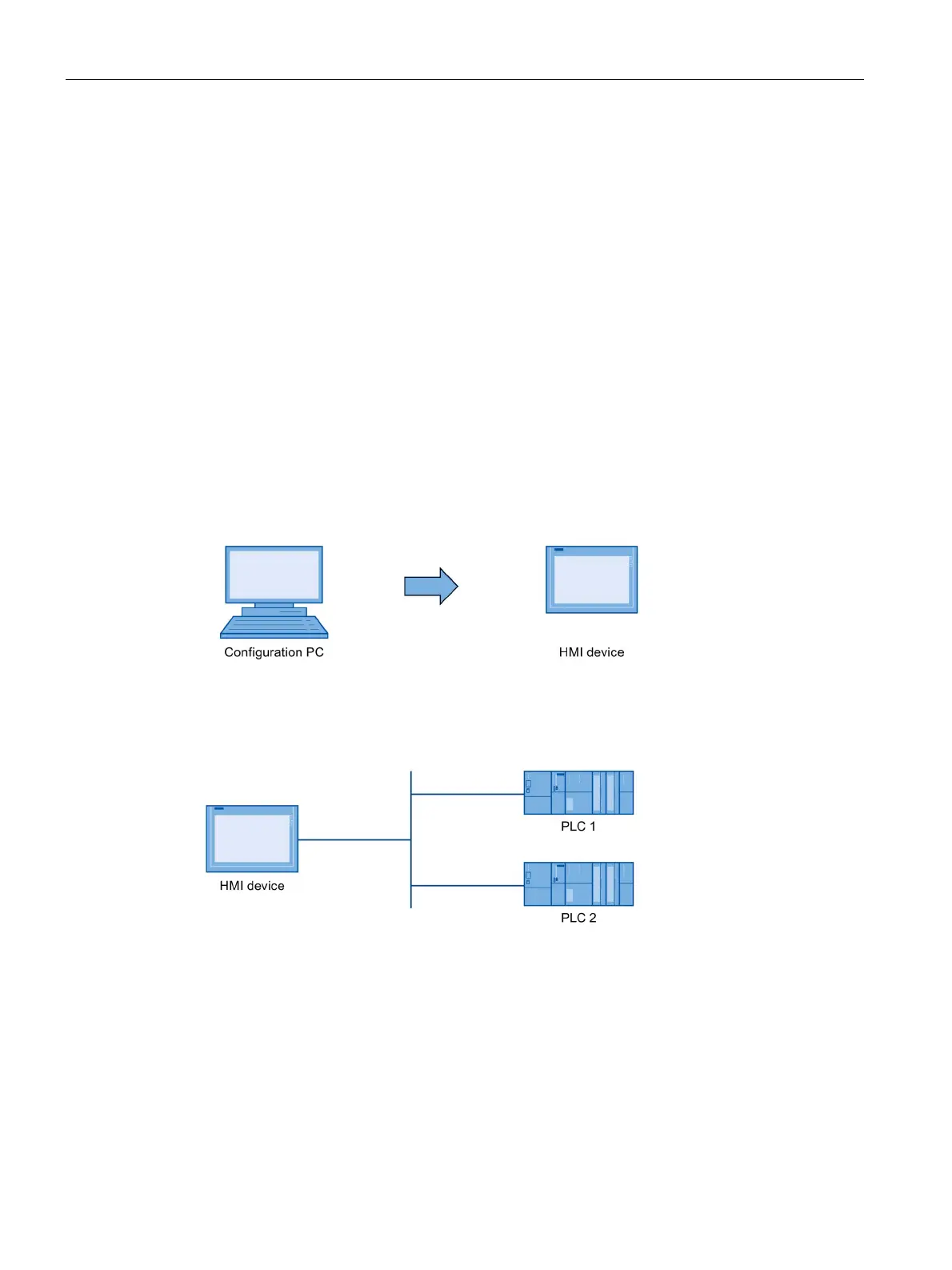

During the configuration phase, you create the user interfaces for operation and monitoring
of the technical process to a configuration PC with WinCC as of version 11. Configuration
also includes:
● Creating project data
● Saving project data
● Testing project data
● Simulating project data
After compiling the configuration, you download the project to the HMI device.
Process management
Process management is marked by two-way communication between HMI device and
controller.
You then use the HMI device to operate and monitor the process.

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
