Siemens SIMATIC HMI TP700 Comfort

Technical information
8.10 Description of the ports
Comfort Panels
224 Operating Instructions, 07/2017, A5E36770603-AB
8.10.3
PROFINET (LAN)
Name of interface on HMI device: PROFINET (LAN) X1

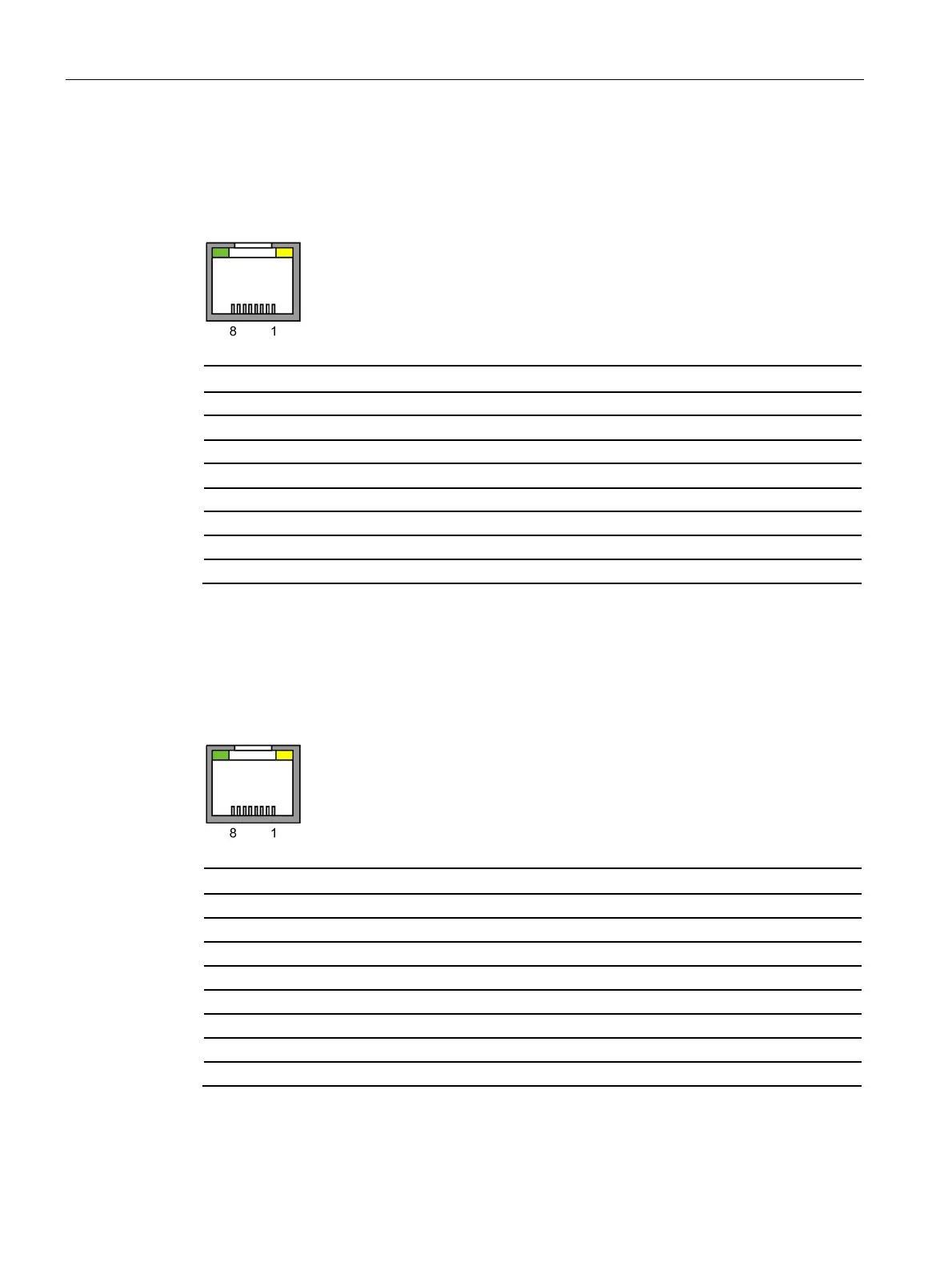

RJ45 plug connector
Pin
Assignment
1
Tx+
2
Tx–
3
Rx+
4
n. c.
5
n. c.
6
Rx–
7
n. c.
8
n. c.
8.10.4
PROFINET (LAN) 10/100/1000 Mb
Models of 15" and more have this interface. Name of interface on HMI device: X3
RJ45 plug connector
Pin
Assignment
1
D1+
2
D1–
3
D2+
4
D3+
5
D3-
6
D2-
7
D4+
8 D4-
