Mounting and connecting the HMI device
3.1 Preparing for installation
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
41

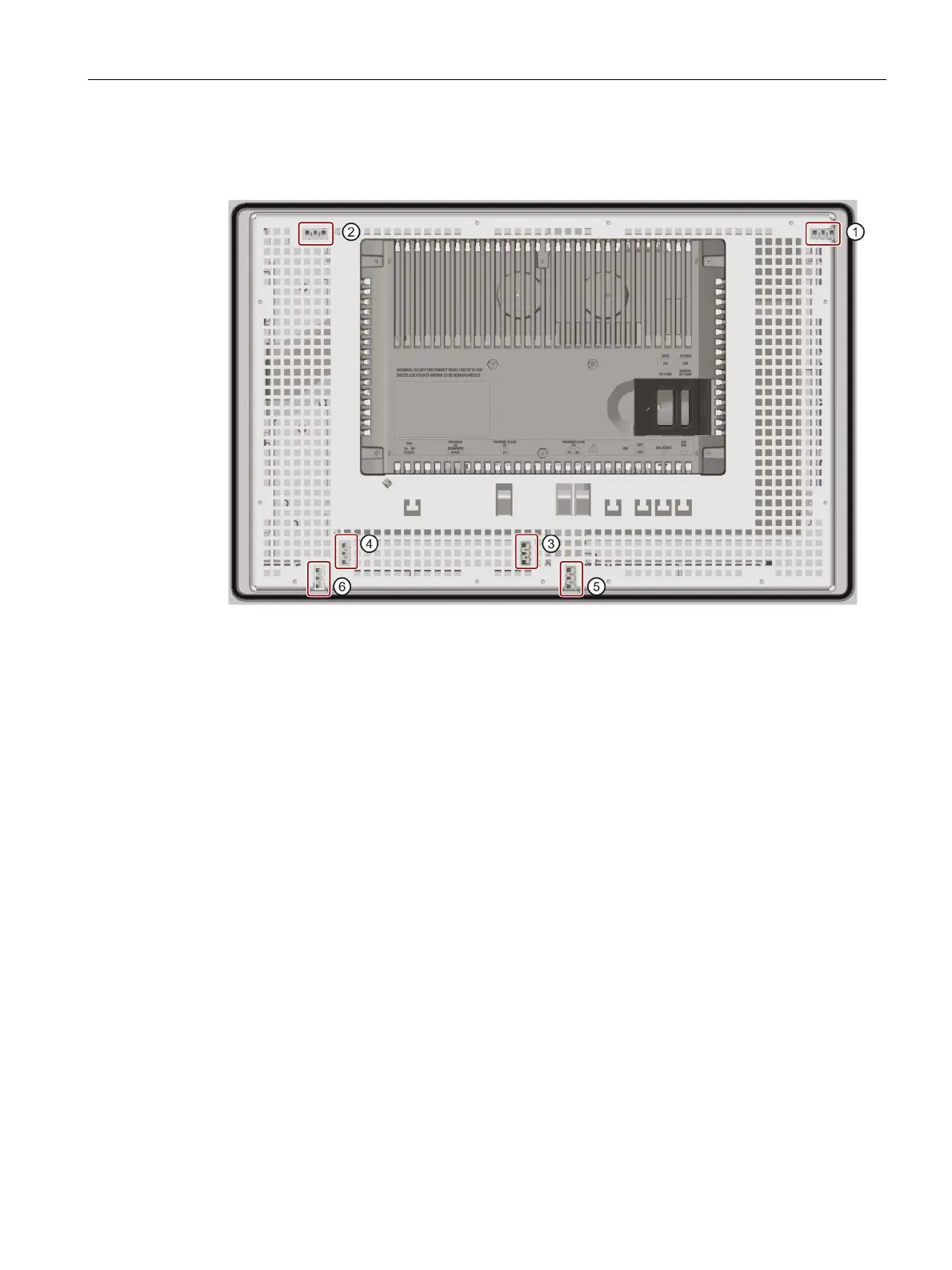

The figure below shows the positions of the guides for labeling strips with Comfort V1 device,
KP1500 Comfort, as an example.
Guide for labeling strips F1, F3 ... F15
Guide for labeling strips F2, F4 ... F16
Guide for labeling strips F17 ... F22
Guide for labeling strips F23 ... F26
Guide for labeling strips F27 ... F31
Guide for labeling strips F32 ... F36
Result
The labeling strips protrude approximately 3 cm out of the slot. The template dimensions for
the labeling strips are designed in such a way that the labeling of the function keys is
correctly placed. Additional securing of the labeling strips is not necessary.
When mounting the HMI device, make sure that the labeling strips do not get jammed
between the mounting cutout and the HMI device.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Siemens SIMATIC HMI TP700 Comfort and is the answer not in the manual?

Siemens SIMATIC HMI TP700 Comfort Specifications

General IconGeneral
Display Size7 inches
Resolution800 x 480 pixels
Power Supply24 V DC
Number of Colors16 million
Brightness400 cd/m²
TouchscreenYes, analog resistive
Flash Memory12 MB
Protection RatingIP65 (front)
Display TypeTFT
Protection ClassClass III
Memory1 GB Flash
Storage12 MB Flash
Weight1.2 kg
Power Consumption12 W
Interfaces1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
