Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
114 Operating Instructions, 07/2017, A5E36770603-AB

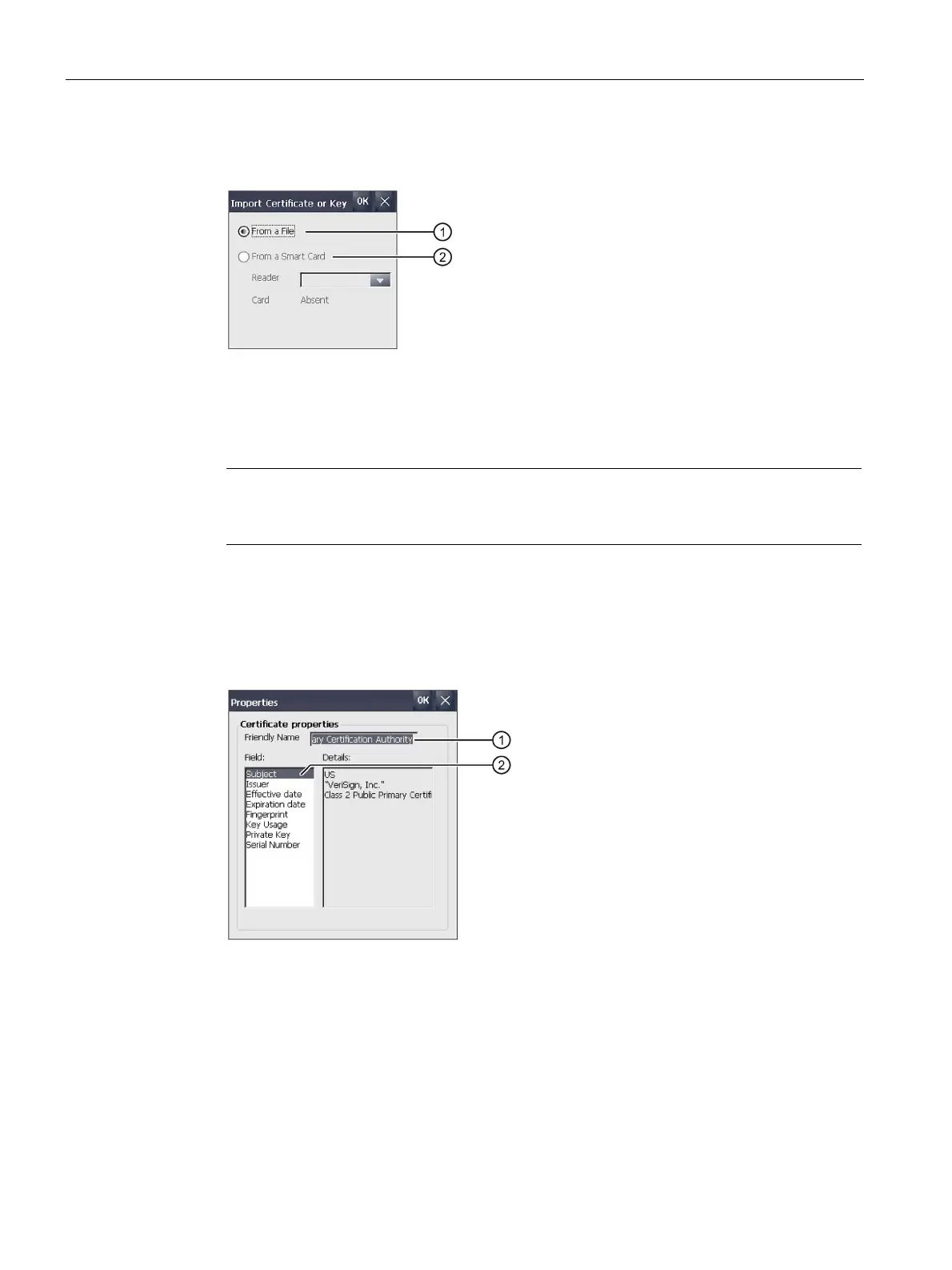

4. Use the "Import.." button to specify the source from which the certificate will be imported.
The following dialog appears:
Import from a file
Import from a smart card reader
5. Select "From a File" or "From a Smart Card" if a smart card reader is connected to the
HMI device.
Note
The Smart Card reader is not an approved source for importing certificates for the HMI
device.
6. Close the dialog with "OK".
7. In the subsequent file selection dialog, select the desired certificate on the USB flash
drive and confirm with "OK".
The certificate will be imported and displayed in the list on the "Stores" tab.
8. You can use the "View.." button to display the properties of a certificate.
Name of the selected certificate
Identity information and other properties of the selected certificate
