Siemens SIMATIC HMI TP700 Comfort User Manual

Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
135

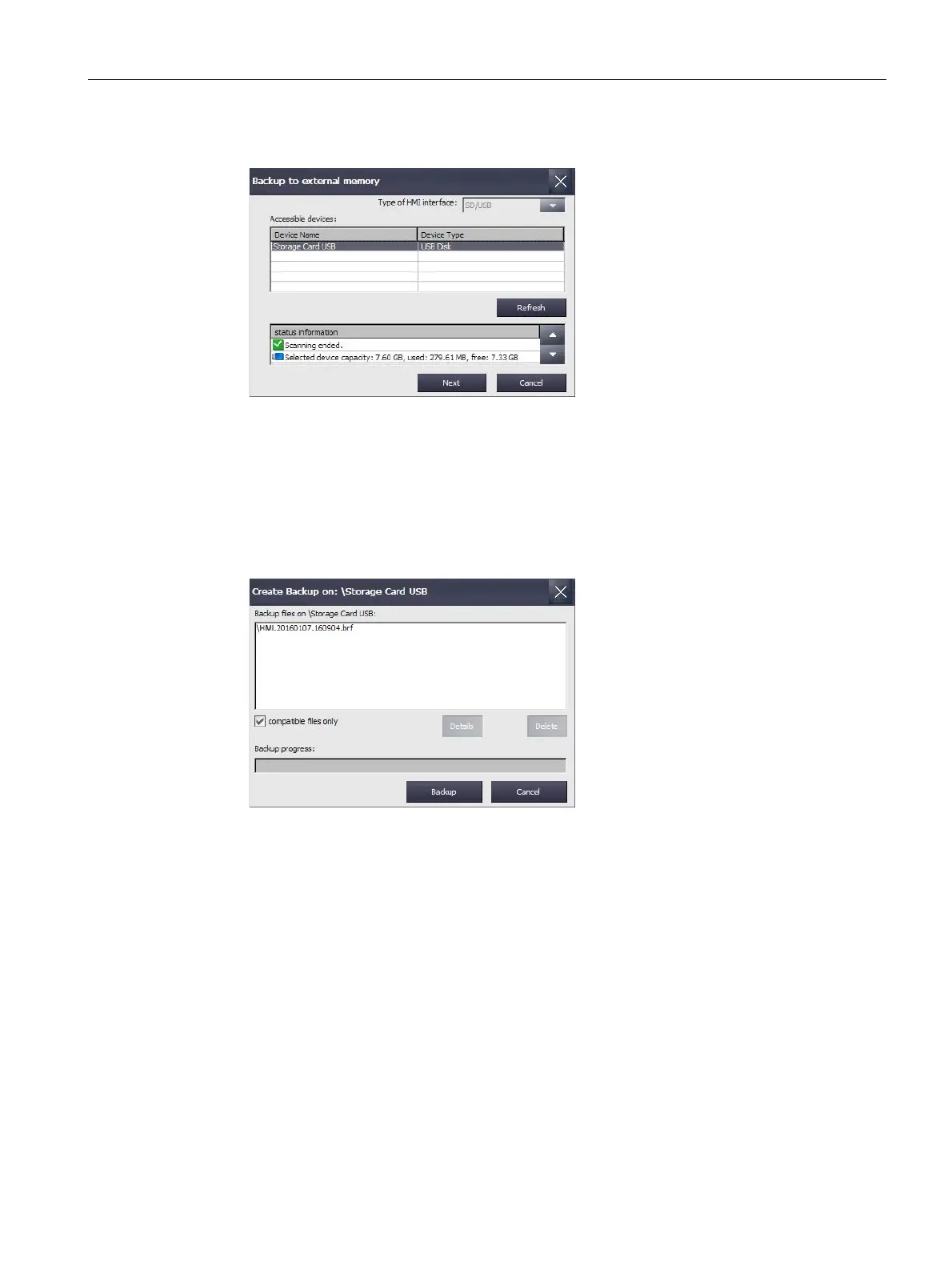

2. Press the "Next" button. The following dialog appears:
The "0 devices found" message appears if there is no storage medium in the HMI device
or if it is defective. Insert a storage media or replace the storage medium.
3. Press the "Refresh" button if necessary.
The "Accessible devices" list is updated and the "status information" field contains
information about the selected storage medium. Note the memory capacity displayed.
4. Select a storage medium from the "Accessible devices" list.
5. Press the "Next" button. The following dialog appears:
6. If you only want to backup compatible files, select the "compatible files only" check box.
– Check box cleared:
The list displays all backup files. This gives the user an overview of the files stored on
the storage medium.
– Check box selected:
The list only displays the backups that are compatible with the device currently in use.

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
