Siemens SIMATIC HMI TP700 Comfort

Overview
1.3 Configuration of the devices
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
17
Rear view

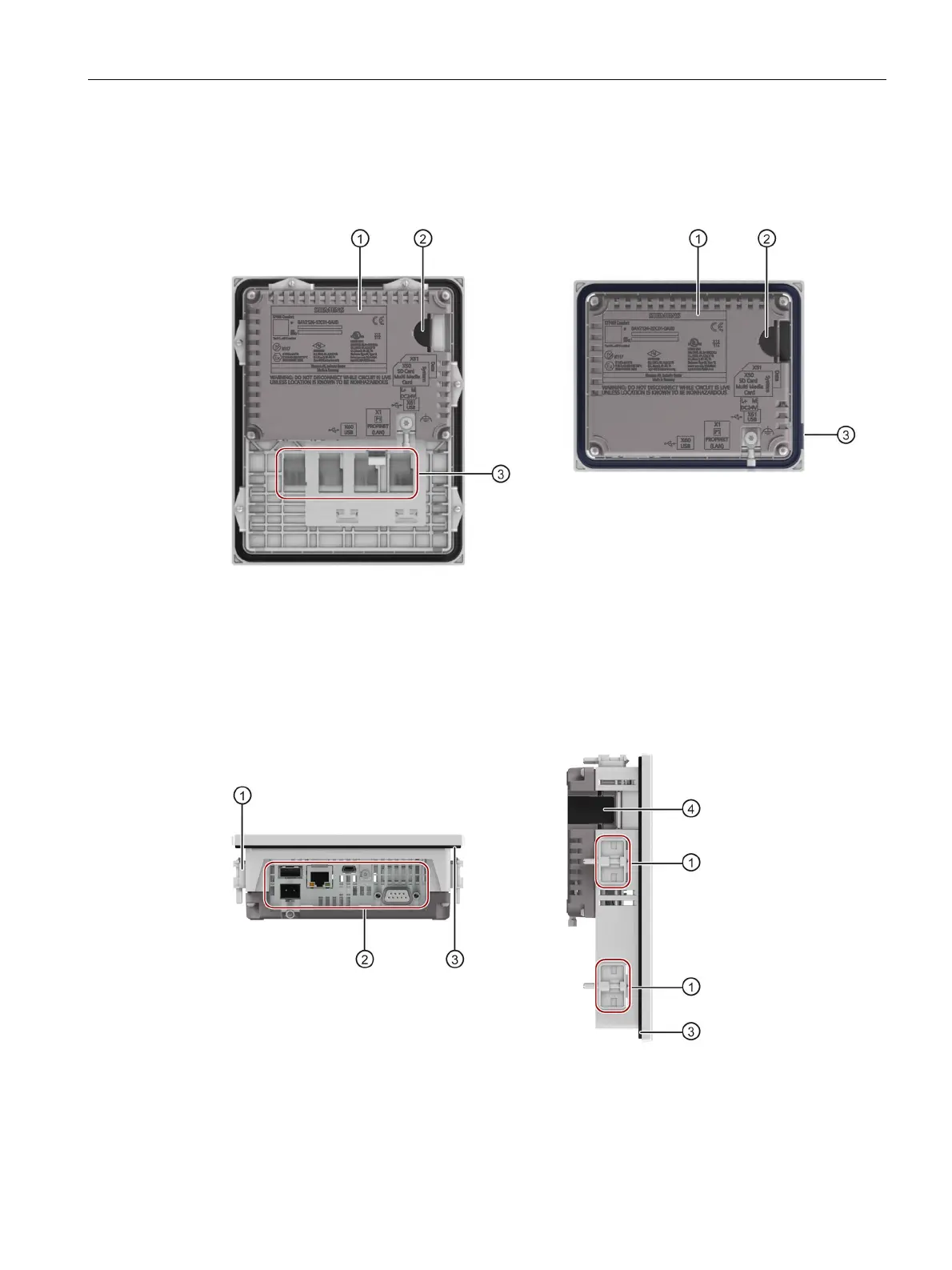

The figure below shows the rear view of the HMI devices, KP400 Comfort (left) and KTP400
Comfort (right):
①
Rating plate
②
Slots for SD memory cards - accessible from the device side
③
Labeling strip
Side view
The figure below shows the side views of the HMI devices, KP400 and KTP400 Comfort:
①
Cutouts for mounting clips
②
Interfaces
③
Mounting seal
④
Slots for SD memory cards
