Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
60 Operating Instructions, 07/2017, A5E36770603-AB
Installing a strain relief
With the 4" and 7" models, protect the cables with a separate strain relief. Install the strain
relief on the HMI device.

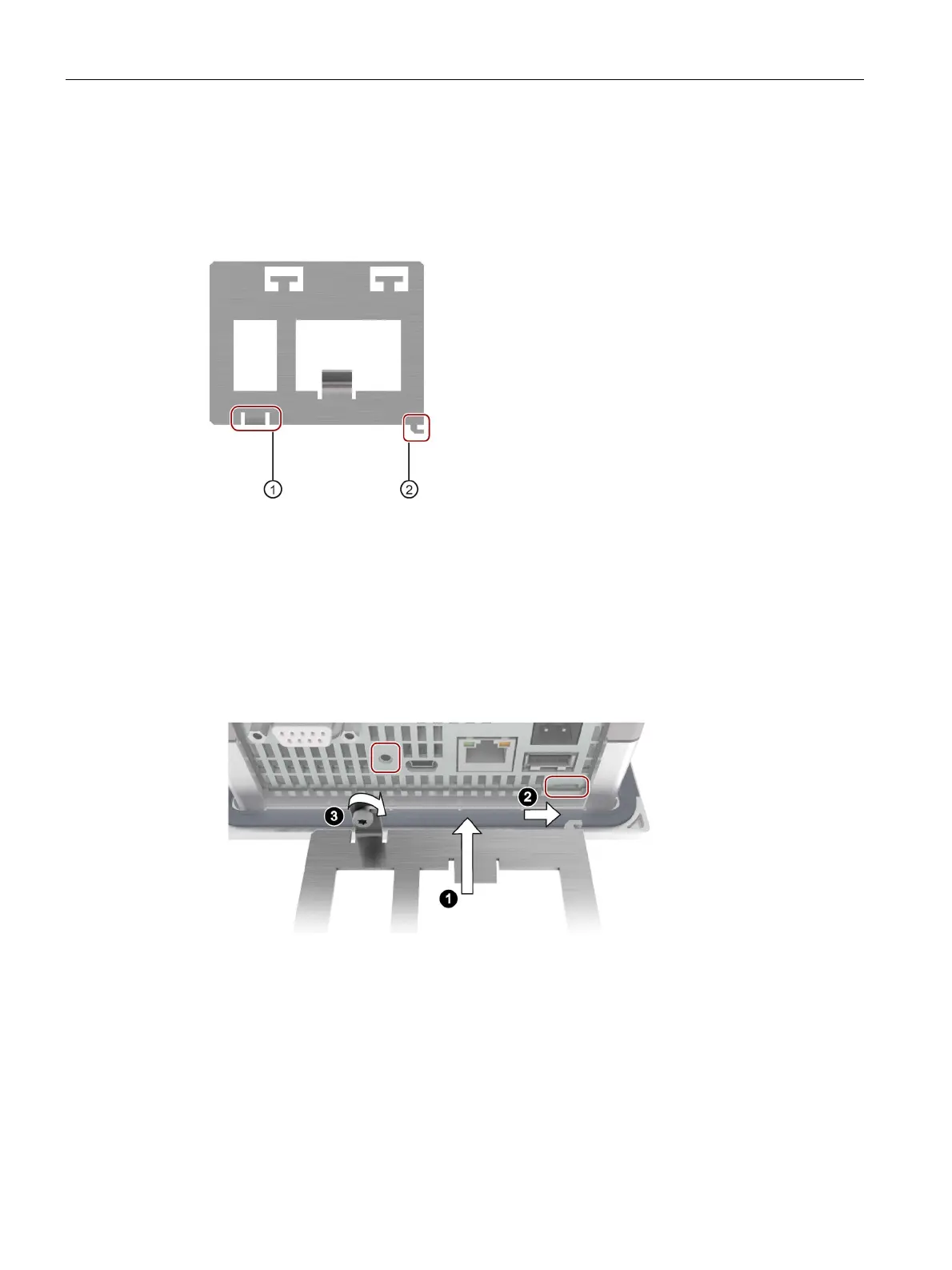

The following figure shows the fixing elements of the strain relief for the 4" model:
①
Bore hole for Torx screw
The strain relief is fastened with the Torx screw of the connection for equipotential bonding.
Before you install the strain relief, remove the Torx screw.
②
Safety latch
Proceed as follows:
1. Position the strain relief flush with the HMI device.
2. Push the strain relief to the right.
3. Secure the strain relief with the Torx screw.

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
