Commissioning the device
4.1 Overview
Comfort Panels
64 Operating Instructions, 07/2017, A5E36770603-AB
Slots for memory card and system memory card
The slots for memory card and system memory card are on the back of the enclosure for the
7" models. The memory cards and system memory cards are thus accessible at the rear of
the cabinet. The memory cards and system memory cards are protected by a safety catch.
The memory cards and system memory cards can be hot-swapped during ongoing operation
of the HMI device.
The slots are on the back of the enclosure for the 4" models.

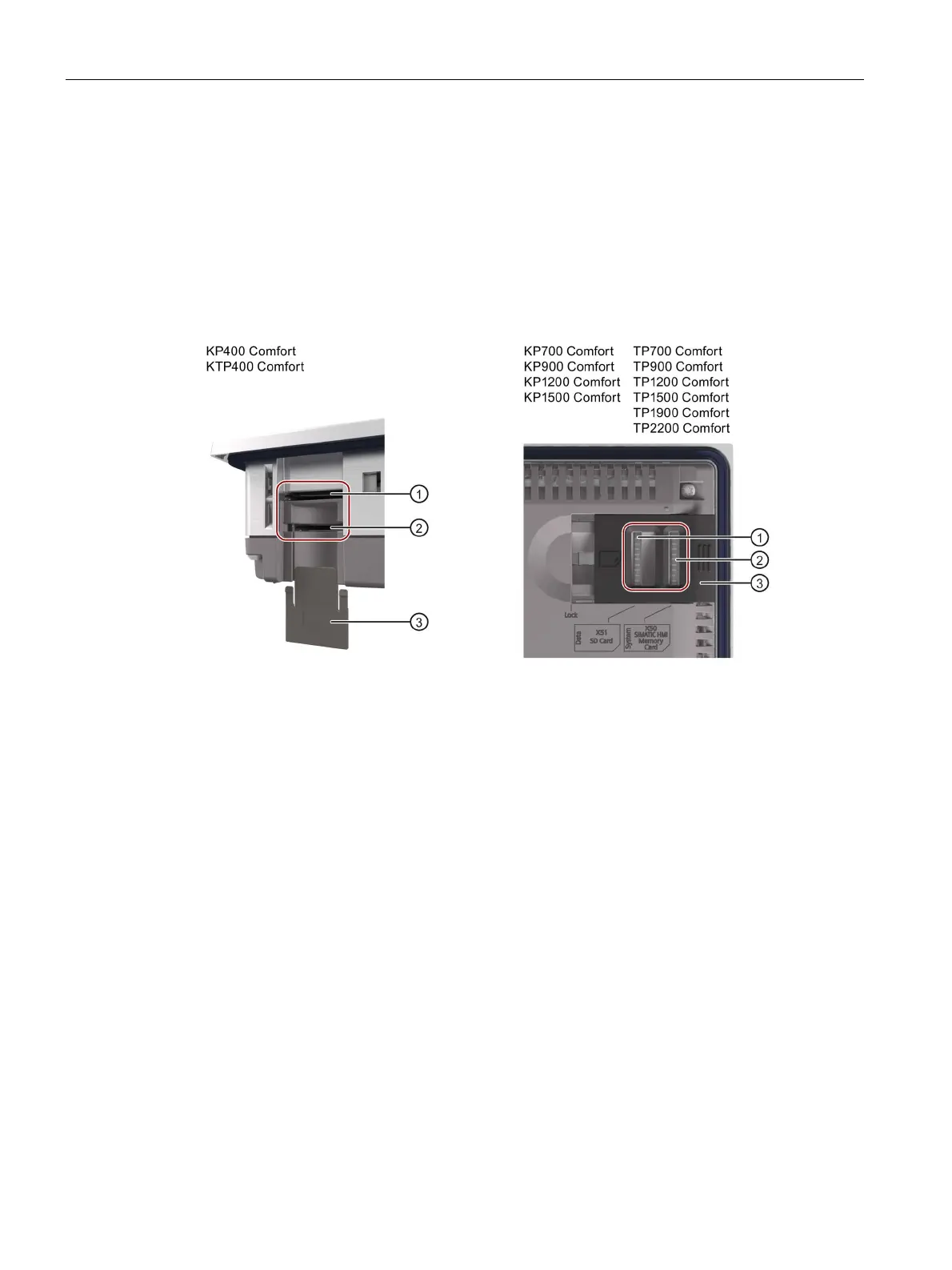

The figure below shows the slots with safety catch with the Comfort V1 devices as examples.
①
Slot for memory card in the "SD(IO / HC)" or "MMC" format.
Recommendation: SIMATIC HMI memory card
②
Slot for the system memory card.
Permitted: SIMATIC HMI Memory Card ≥ 2 GB
③
Safety catch
KP400 Comfort and KTP400 Comfort: infinitely variable
KP700 Comfort and TP700 Comfort and higher: two-level

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
