Commissioning the device
4.2 Operating the device
Comfort Panels
72 Operating Instructions, 07/2017, A5E36770603-AB
Operating the Control Panel and dialogs

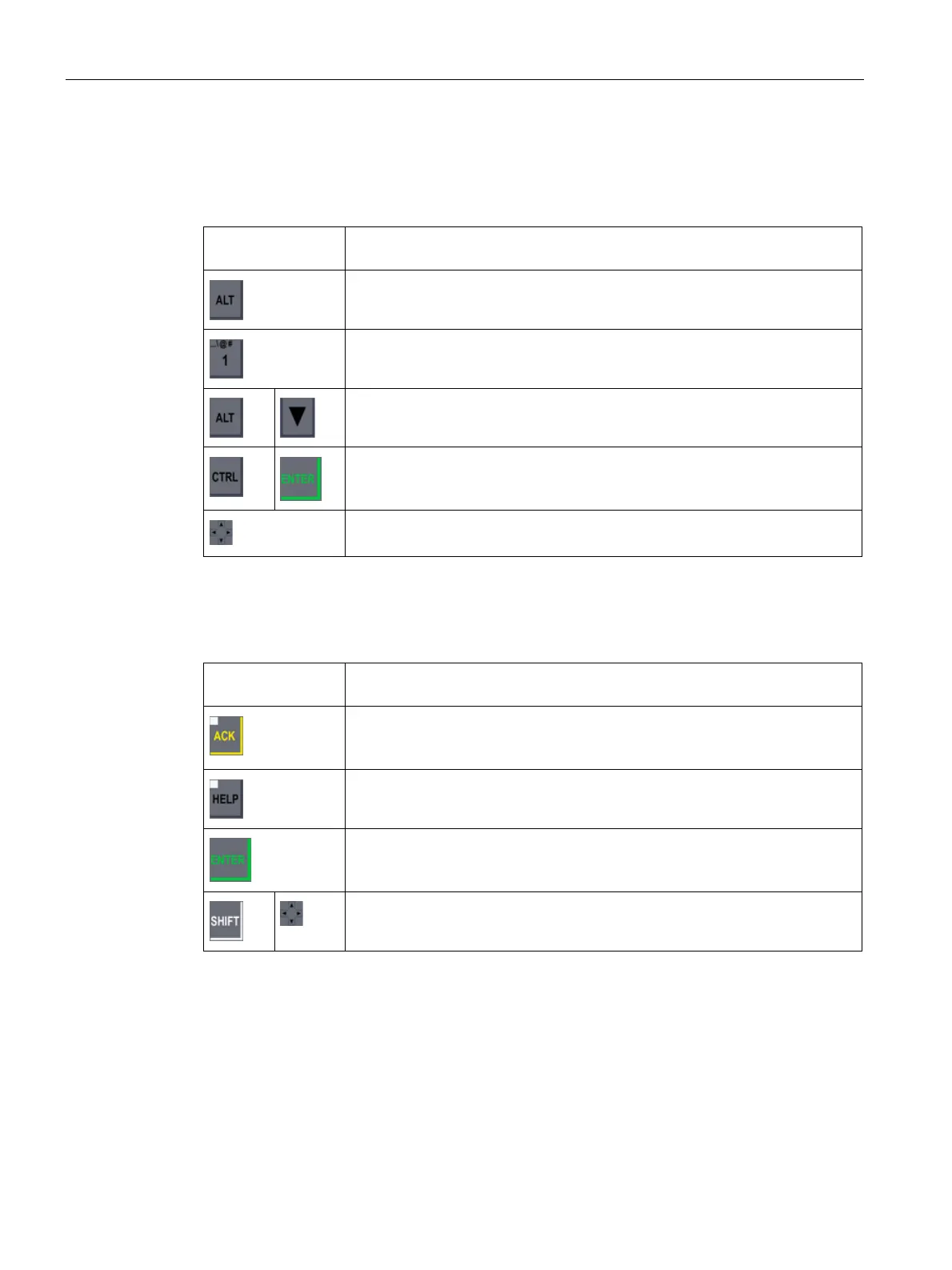

The table below shows the system key functions when operating the Control Panel and
dialogs:
Key or keyboard
shortcut
Function
Activates the menu.
Use the cursor keys to navigate in the menu.
Selects or clears a check box.
Opens a drop-down list box.
Selects a list item without closing the dialog.
Navigates through tabs or options.
Activate the tab or the options, in each case with <TAB>.
Operating a project
The table below shows the system key functions when operating an ongoing project:
Key or keyboard
shortcut
Function
Acknowledges the currently displayed fault or all alarms of an alarm group as
group acknowledgment.
A lit LED indicates unacknowledged faults.
Calls up the configured infotext for an operating element.
When the LED is lit, it indicates that an infotext is available.
Enables the operation of an operating element.
Position the cursor within an I/O field.
See also
Input of values (Page 178)
Entering and editing numerical values (Page 179)
Entering or changing alphanumeric values (Page 180)

Siemens SIMATIC HMI TP700 Comfort Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Power Supply	24 V DC
Number of Colors	16 million
Brightness	400 cd/m²
Touchscreen	Yes, analog resistive
Flash Memory	12 MB
Protection Rating	IP65 (front)
Display Type	TFT
Protection Class	Class III
Memory	1 GB Flash
Storage	12 MB Flash
Weight	1.2 kg
Power Consumption	12 W
Interfaces	1x Ethernet (RJ45), 2x USB, 1x RS422/RS485
