Expanding and assigning parameters to the device
6.3 Expansion cards
SIMATIC IPC BX-39A
58 Operating Instructions, 07/2022, A5E50715883-AA
Device versions

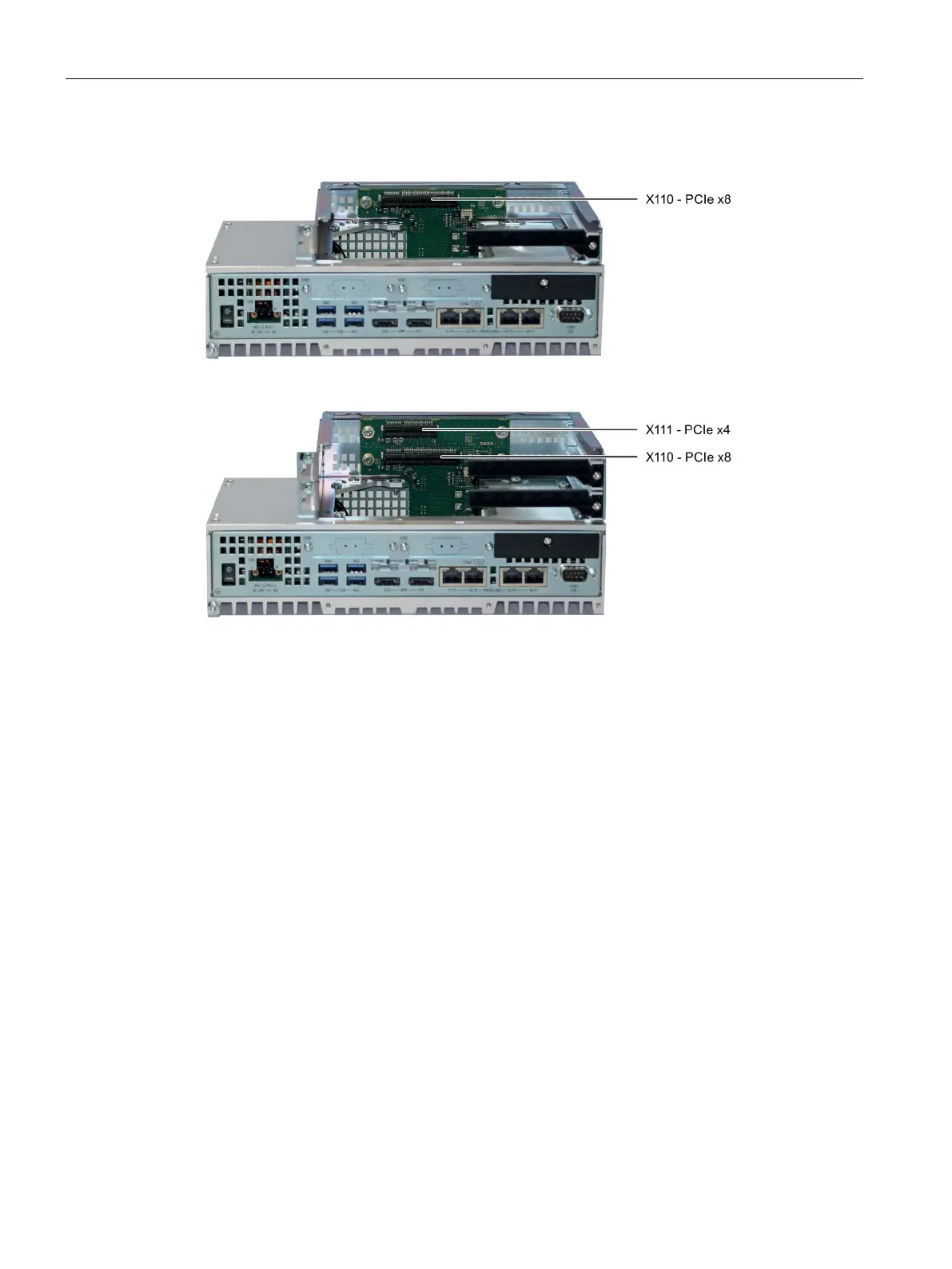

Figure 6-1 Device version with one PCIe slot
Figure 6-2 Device version with two PCIe slots
Requirements
• You are familiar with the information on expansion cards and the conditions of use of
expansion cards, see "Usable expansion cards (Page 57)".
• The device is open, see important information regarding this under "Open device with
expansion slots (Page 55)".
• If the PCIe card to be used has external interfaces, you can use the built-in slot plates to
install the plug-in connectors. You can also use a slot plate with connector perforations.
• Screwdriver of type Torx T10
