Expanding and assigning parameters to the device
6.3 Expansion cards
SIMATIC IPC BX-39A
Operating Instructions, 07/2022, A5E50715883-AA
59

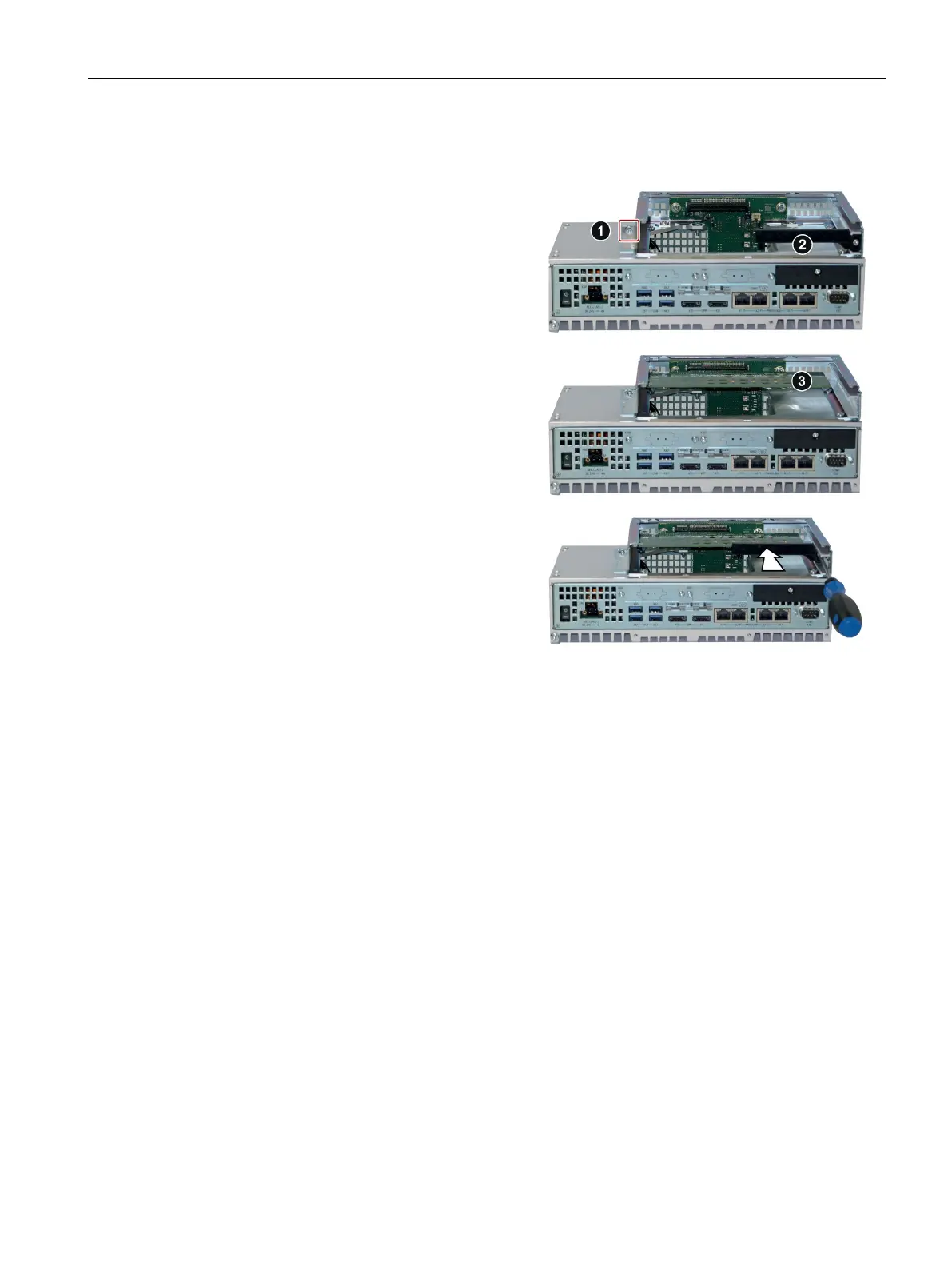

Procedure - Installation
1.
Remove the screw (1) in the blanking
plate for the slot you require and remove
the blanking plate.
2.
Remove the retainer (2).
3.
Insert the expansion card into the slot on
the bus board (3).
Secure the expansion card with the corre-
sponding screw.
4.
Reinsert the clamp and slide the clamp in
the direction indicated.
Secure the clamp with the corresponding
screw.
5.
Close the device as specified in section "Open device with expansion slots (Page 55)".
Procedure - Removal
Proceed in reverse order of installation.
Configuring BIOS setup
You may need to make settings in the BIOS Setup. For detailed information about installation,
please refer to the documentation provided with the specific expansion card.
