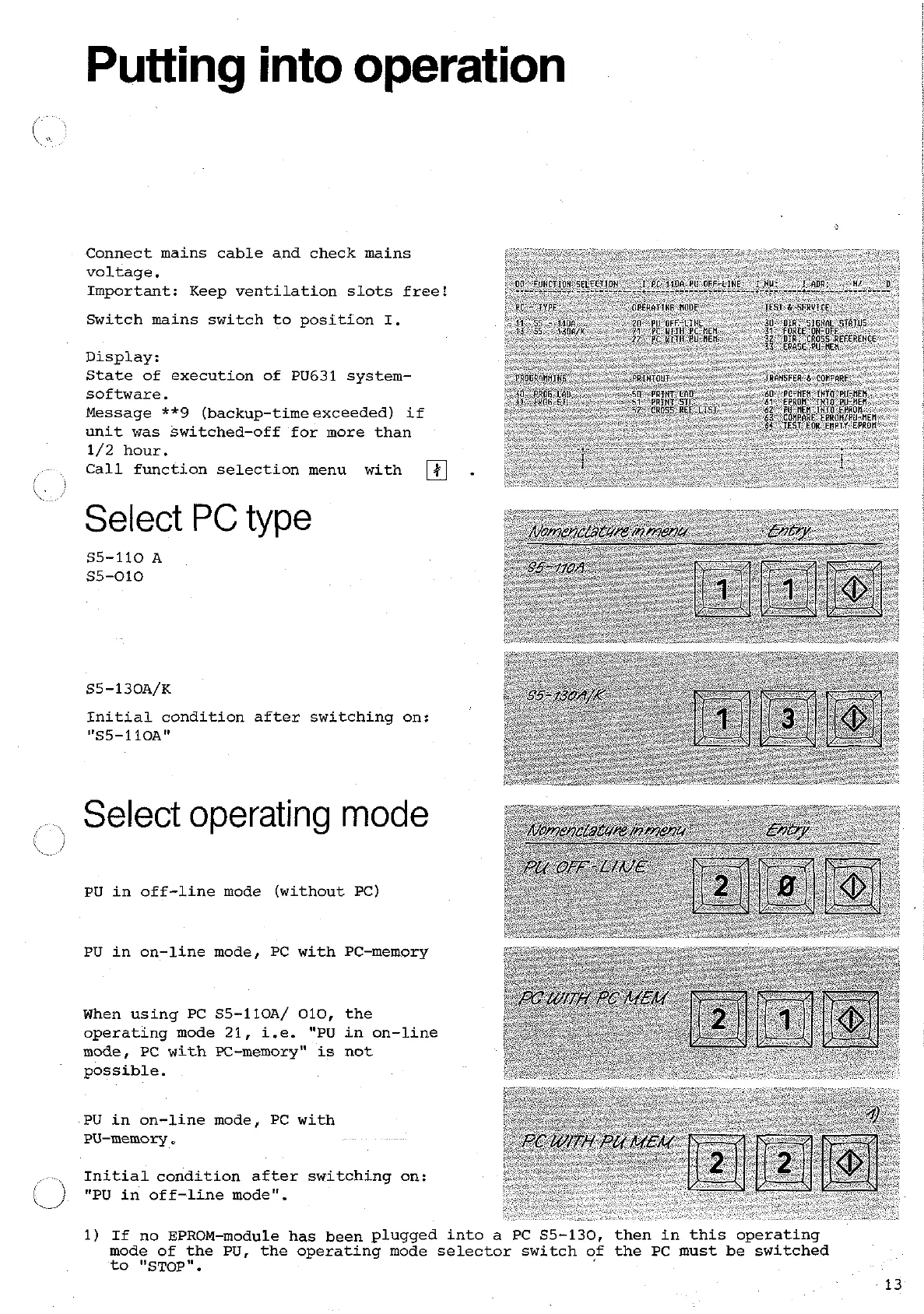

Siemens SIMATIC S5 Operating Instructions

Putting into operation
Connect mains cable and check mains
voltage.
Important: Keep ventilation slots free!
Switch mains switch to position
I.
Display:
State of execution of
PU631 system-
software.
Message
**9 (backup-timeexceeded) if
unit was switched-off for more than
1/2 hour.
Call function selection menu with
\
Select PC type
Initial condition after switching on:
"55-1 10A"
Select operating mode
PU in off-line mode (without PC)
PU in on-line mode, PC with PC-memory
When using PC
S5-llOA/ 010, the
operating mode 21, i.e.
"PU in on-line
mode, PC with PC-memory"
is not
possible.
PU in on-line mode, PC with
PU-memory
.
Initial condition after switching on:
L..,)
"PU in off-line mode".
1) If no EPROM-module has been plugged into
mode of the PU, the operating mode select
to "STOP".
a PC 55-130, then in this operating
:or switch of the PC must be switched
