Siemens SIMATIC S5 Operating Instructions

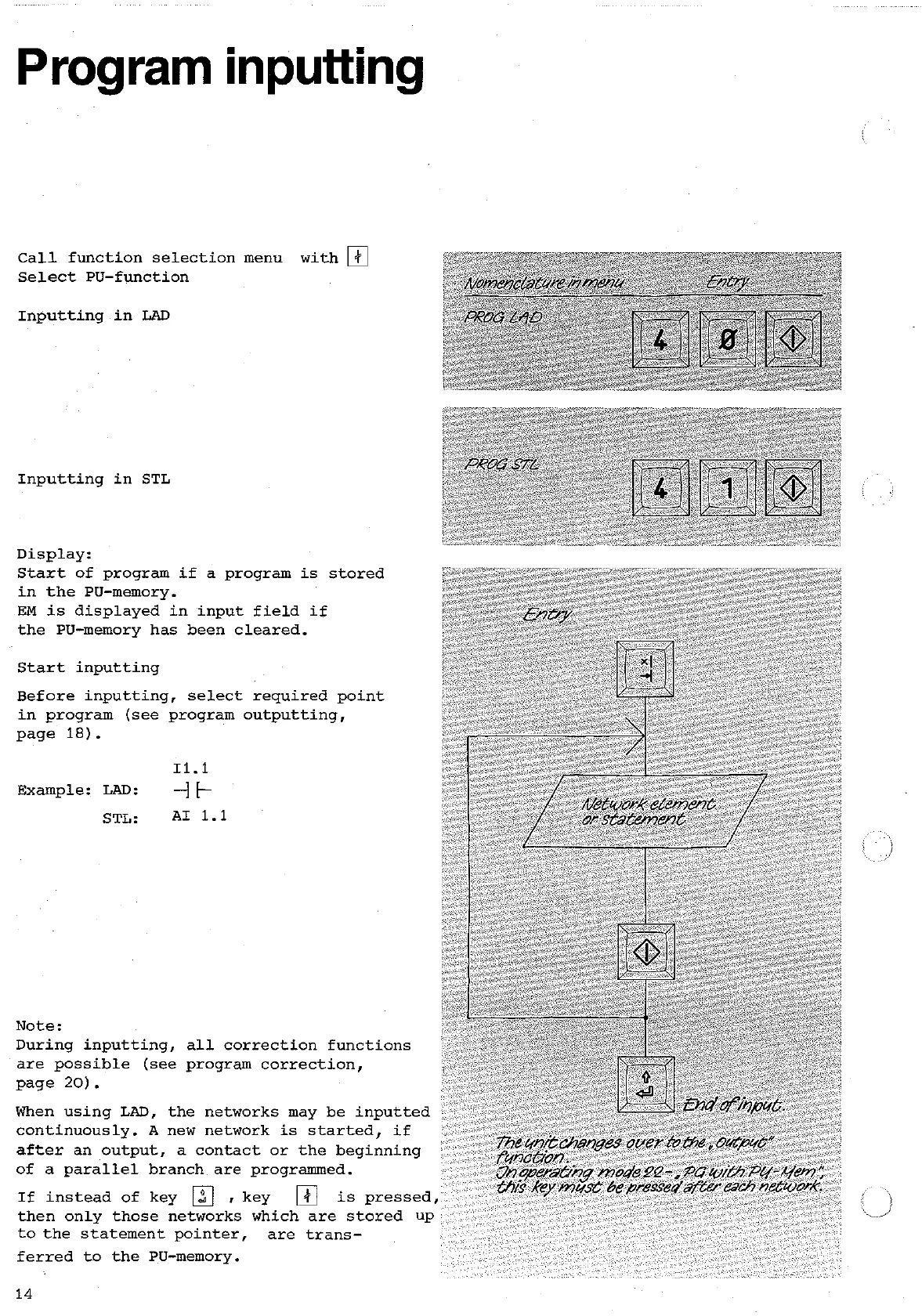

Program inputting
Call function selection menu
with
Select PU-function
Inputting in
LAD
Inputting in STL
- -
Start of program if a program is stored
in the PU-memory.
EM is displayed in input field if
the PU-memory has been cleared.
Start inputting
Before inputting, select required point
in program (see program outputting,
page
18).
11.1
Example:
LAD: 4
STL: AI 1.1
Note:
During inputting, all correction functions
are possible (see program correction,
page
20).
When using LAD, the networks may be inputted
continuously.
A new network is started, if
after an output, a contact or the beginning
of a parallel branch are programmed.
If instead of key
a , key m is pressed
then only those networks which are stored up
to the statement pointer, are trans-
ferred to the PU-memory.
