① Optional load current supply and first R/H-CPU
② Optional load current supply and second R/H-CPU

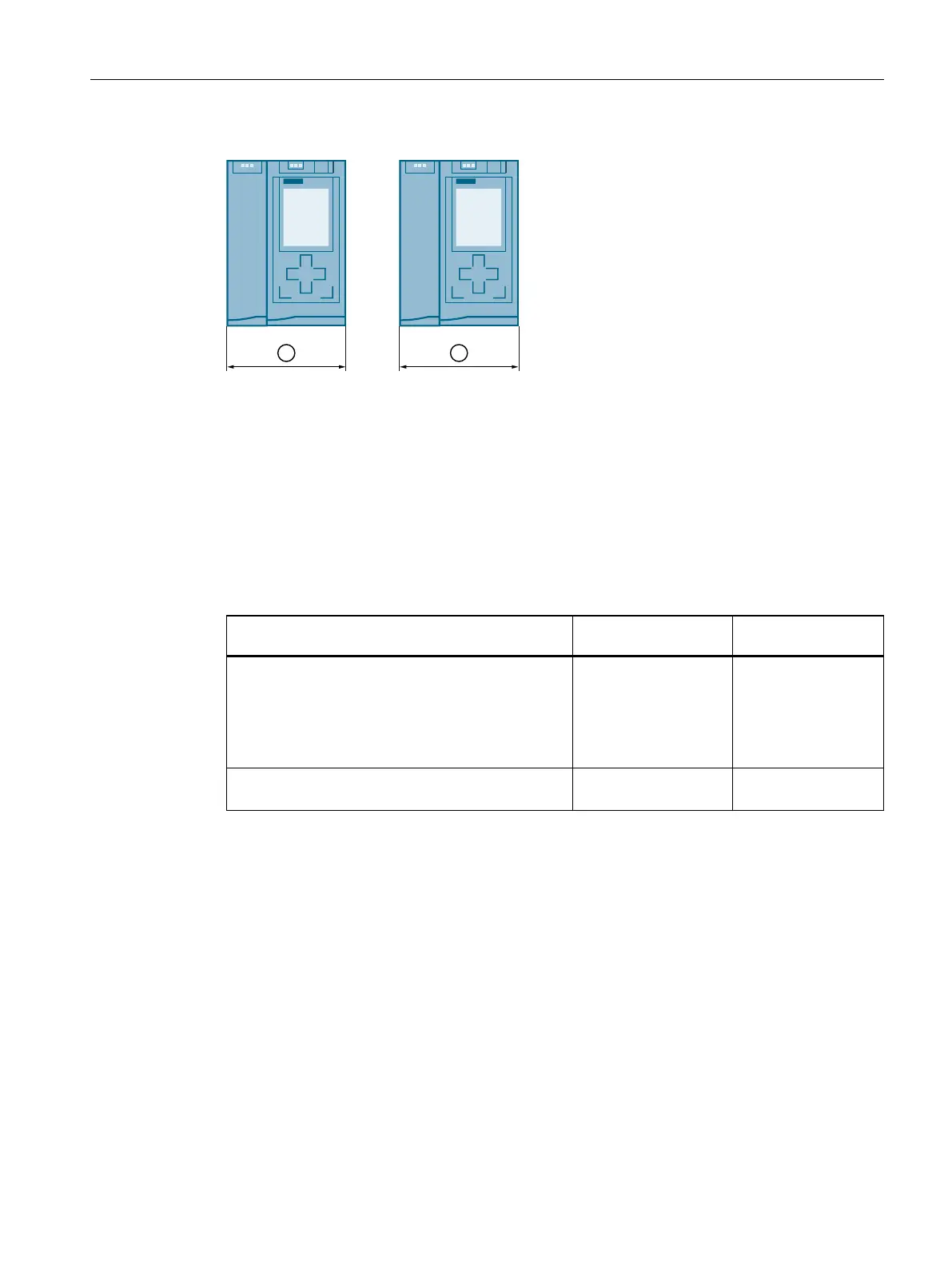

Figure 5-48Assignment of slot numbers
Maximum number of PROFINET devices, IO devices in the redundant system
The table below shows the maximum number of PROFINET devices, IO devices in the
redundant system.
Table 5-6Number of PROFINET devices, IO devices in the redundant system
Maximum number of devices Maximum number of
S7-1500R
Maximum number of
S7-1500H
Maximum number of PROFINET devices in the
PROFINET ring of the R/H system
The maximum number includes configured switches,
S7-1500R/H CPUs, S7-1500 CPUs (as of V2.5), HMI
devices and IO devices. It does not include media con
verters.
50 (Recommendation
16)
1)
50
Maximum number of connectable IO devices at the
R/H CPUs
64 256
1)
Recommendation: The number of devices in the PROFINET ring affects the availability of the
S7-1500R system. The number of PROFINET devices including R-CPUs in the PROFINET ring should
not exceed 16. If you operate significantly more devices in the PROFINET ring, the availability is
reduced.
5.7 Using HMI devices
Introduction
You can use the same HMI devices for the S7‑1500R/H redundant system as for the S7‑1500
automation system.
If you use HMI devices in the PROFINET ring with S7-1500R, those HMI devices must support
media redundancy. The H-Sync forwarding function is also recommended.
