Connecting PROFINET rings with R1 devices
Plug the RJ45 connectors of the left PROFINET ring (PROFINET ring 1 with left interface
modules) into the RJ45 sockets of the PROFINET interfaces X1 P1R/X1 P2R of the H-CPU with
redundancy ID 1.
Plug the RJ45 connectors of the right PROFINET ring (PROFINET ring 2 with right interface
modules) into the RJ45 sockets of the PROFINET interfaces X1 P1R/X1 P2R of the H-CPU with
redundancy ID 2.
)$16)$16
&541)"
&541

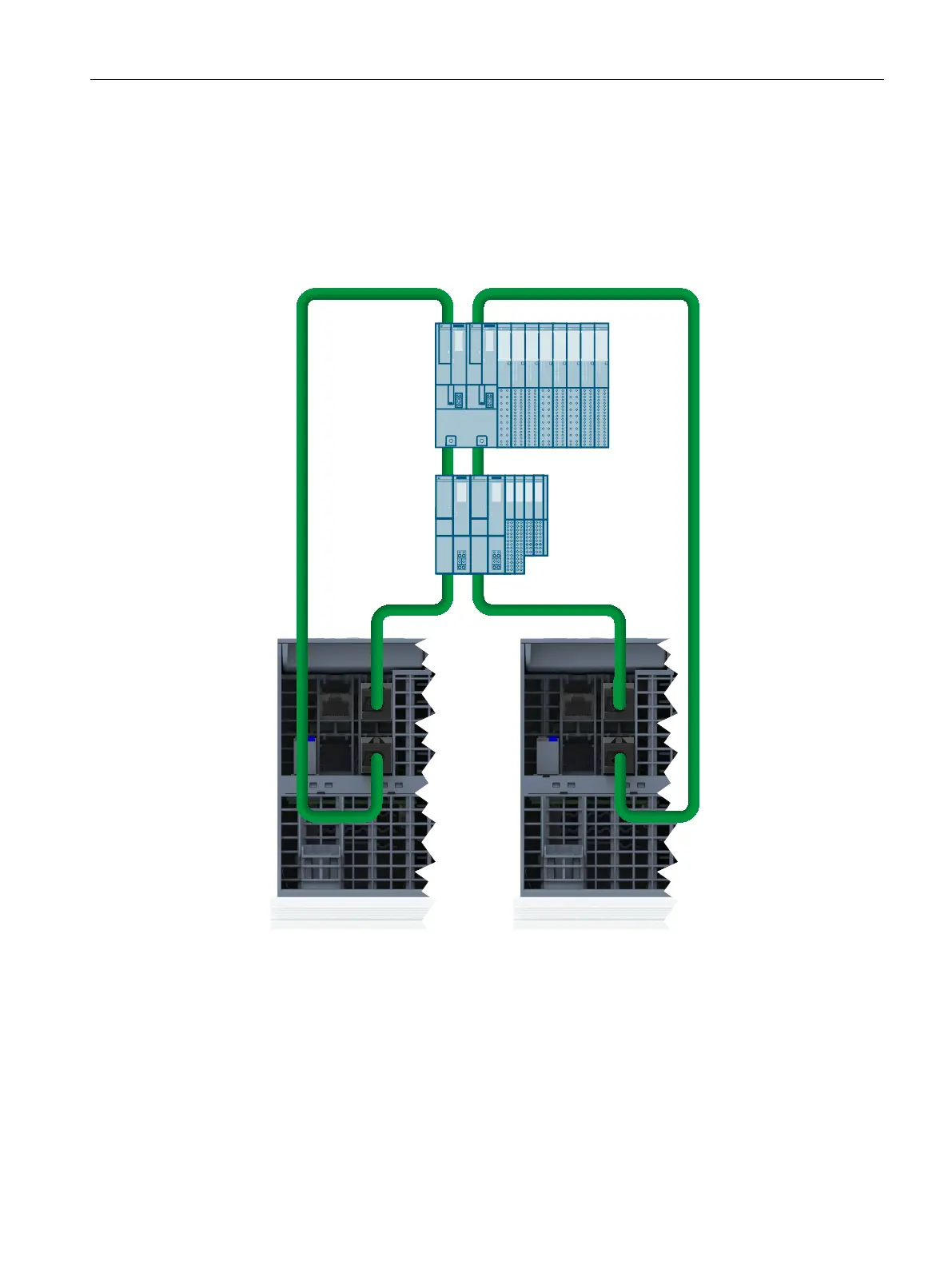

Figure 7-14Connecting PROFINET rings with R1 devices
7.9.3 Connecting line topology to S7-1500H
Introduction
You connect the line topology via the RJ45 sockets of the PROFINET interfaces X1 P1R.
