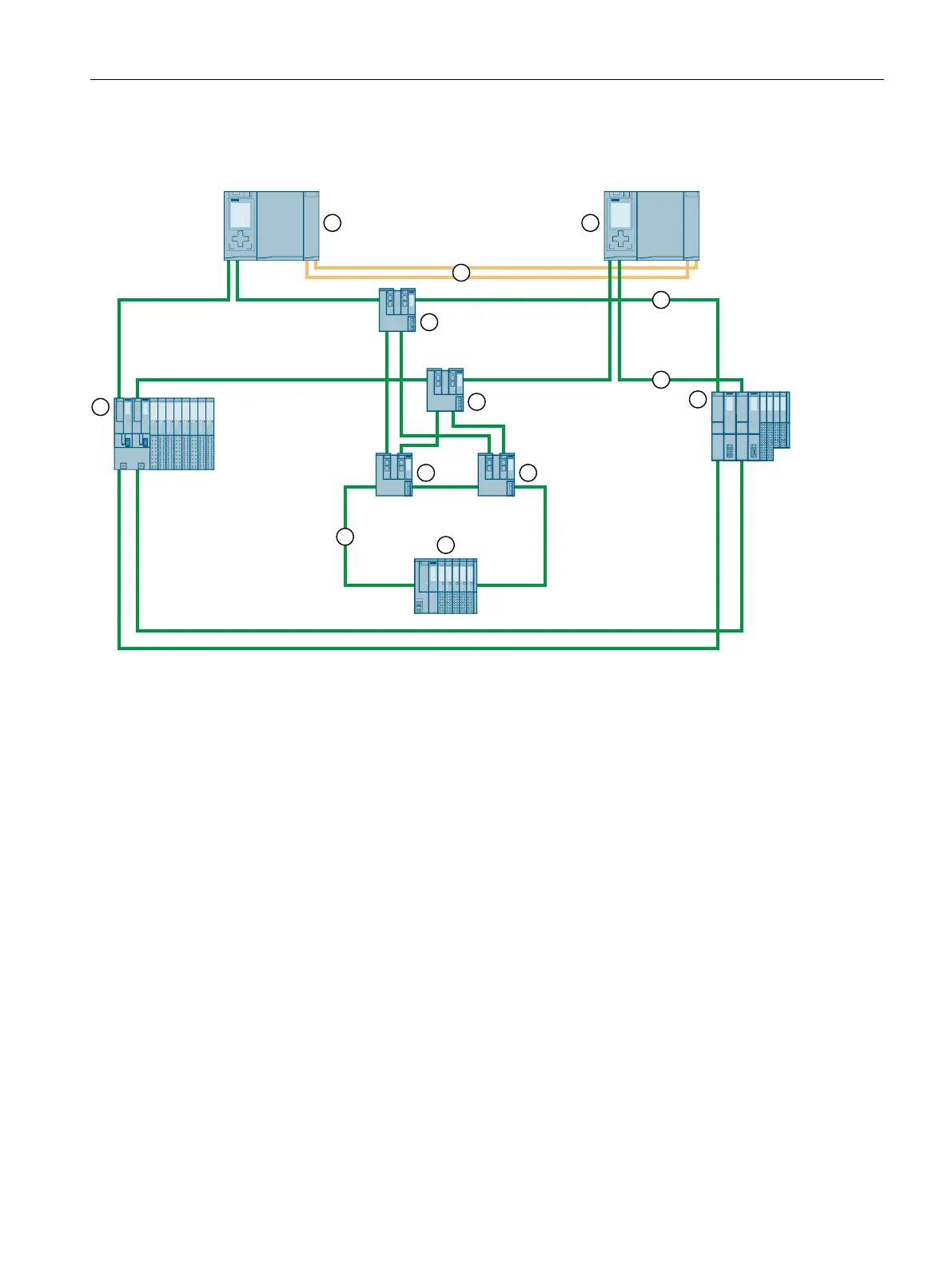

Configuration of S7-1500H with R1 devices and Y-switches with DNA redundancy in PROFINET
ring
① CPU 1
② CPU 2
③ Two fiber-optic cables (redundancy connections)
④ PROFINET cable (PROFINET ring 1)
⑤ PROFINET cable (PROFINET ring 2)
⑥ Switch (SCALANCE XF204-2BA)
⑦ IO device ET200SPHA (with system redundancy R1)
⑧ IO device ET 200SP (with system redundancy R1)
⑨ Y-switch (SCALANCE XF204-2BA DNA)
⑩ PROFINET cable (PROFINET ring 3)
⑪ IO device ET 200SP (with system redundancy S2)
Figure 5-12Configuration of S7-1500H with R1 devices and Y-switches with DNA redundancy in the PROFINET rings
5.3.3.5 Configuration of line topology with R1 devices
Introduction
The section below shows you the configuration of the S7-1500H redundant system with R1
devices in a line topology.
