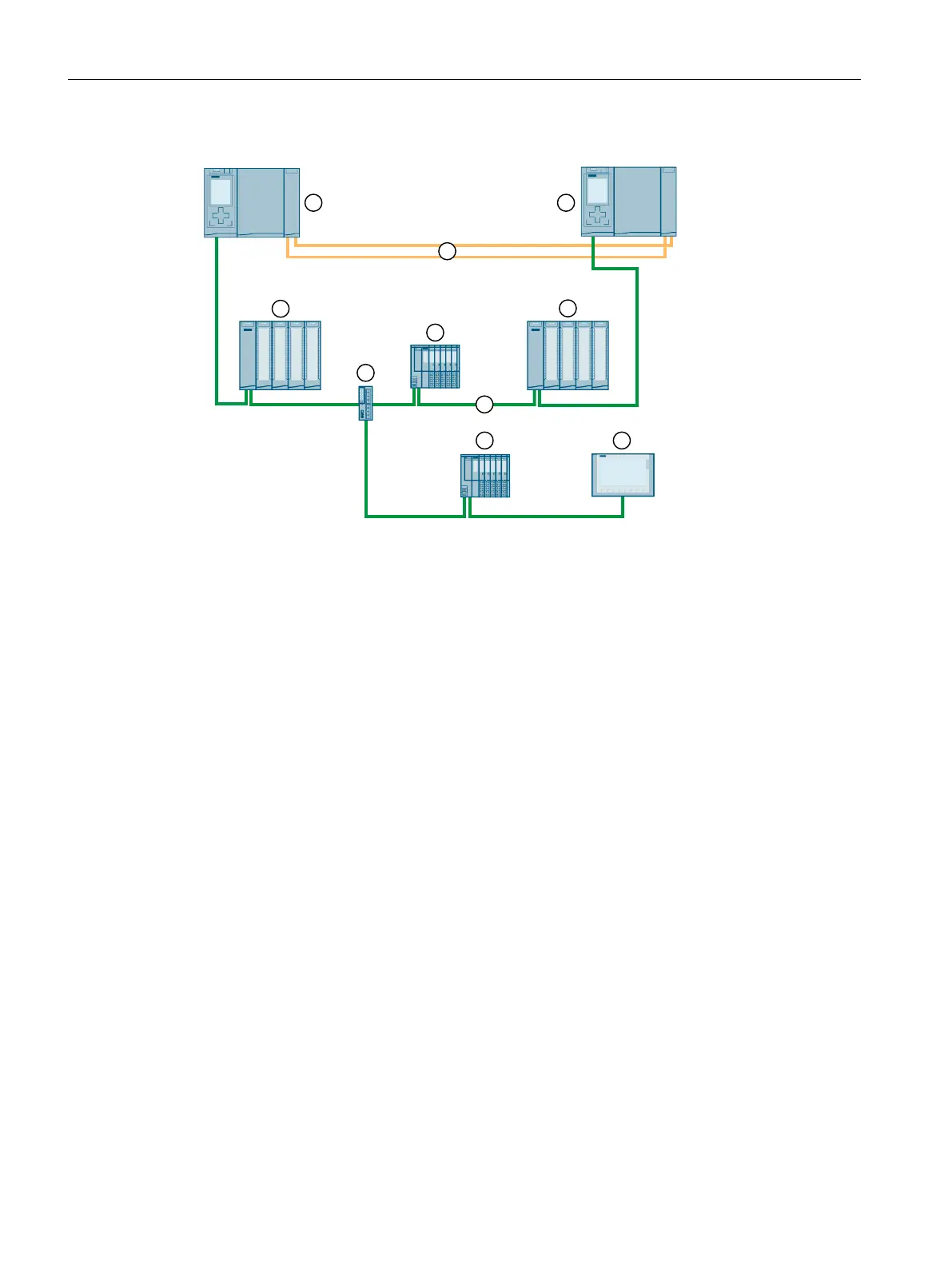

The figure below shows a configuration of the S7-1500H with S2 devices in a line topology.









① H-CPU
② Redundancy connections (fiber-optic cables)
③ IO device (with system redundancy S2)
④ Switch
⑤ PROFINET cable (line topology)
⑥ HMI device
Figure 4-7S7-1500H configuration with S2 devices and switch in a line topology
