Installation
2-10 SIMODRIVE base line A Start-Up
2.5. Cable connection
General As a standard configuration of SIMODRIVE base line A, SINUMERIK 802
C base line is applied together with SIEMENS servomotors (1FK7) in
CNC Turning/Milling machine. The components are wired up as shown in
the connection diagram Fig. 2-5. The required cable for the connection
between NC, drive and motors is also indicated in the figure.
6FX5002-2CJ00-1■■0
≤35 m
6FX2002-3AD01-1■■0
≤35 m
SIMODRIVE base line A
1FK7 Multi-pole
Pair Motor
SINUMERIK 802C base line
6FX5002-5■A01-1■■0
≤25 m
6FX5002-2CF02-1■■0
≤35 m

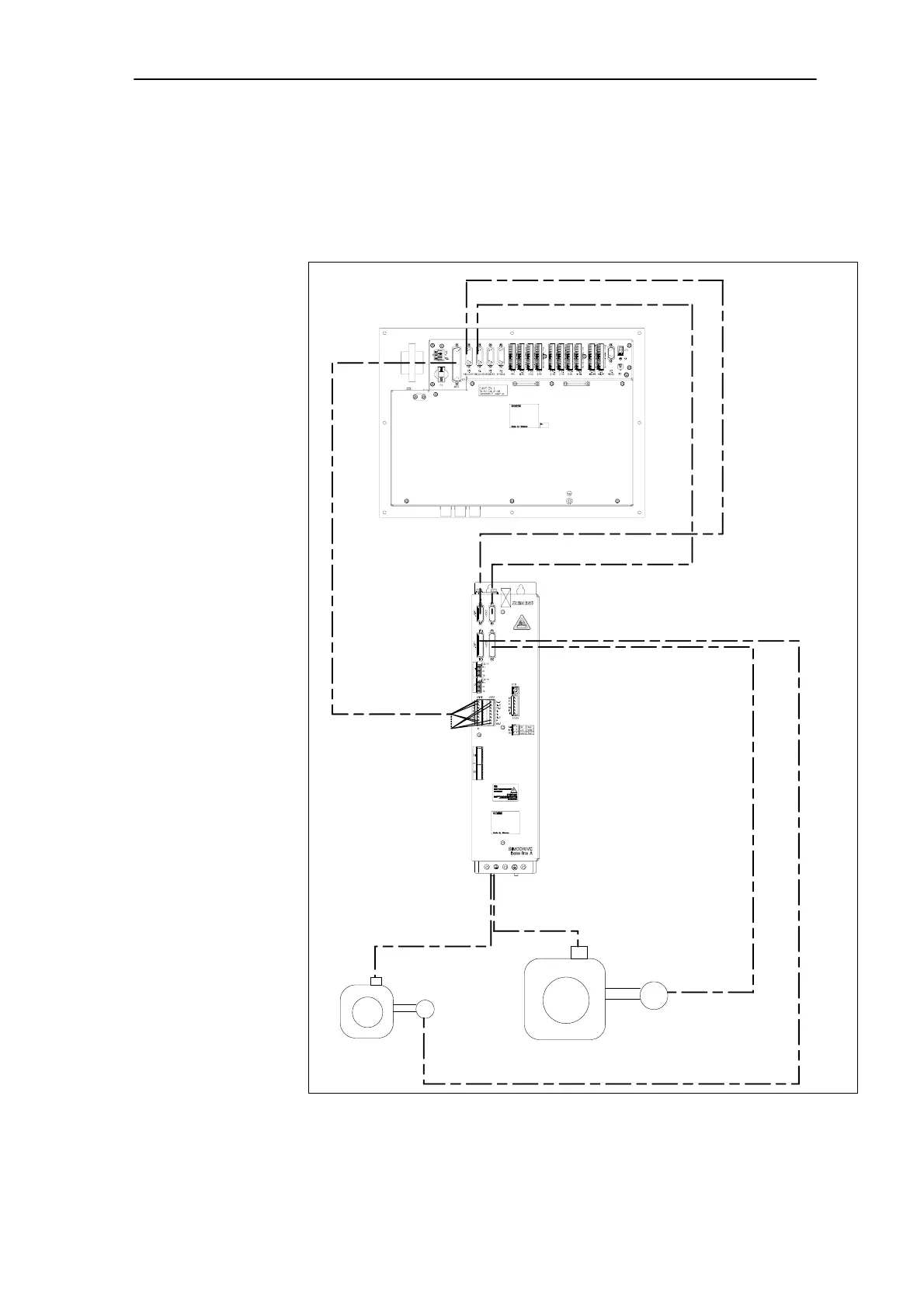

Fig.2-5 Cable connection example
(SINUMERIK 802C base line + SIMODRIVE base line A 2-axes)
