SIMODRIVE base line A Start-Up 1-1
1. Introduction
1.1. Components of SIMODRIVE base line A
What is SIMODRIVE SIMODRIVE base line A is a compact AC servo drive. It applies to
base line A economical CNC lathe, milling machine and drilling machine. It can also
be adapted to control diverse production machines.
Components SIMODRIVE base line A is designed in a compact structure. The internal
parts include following modules:
● Control module
● Infeed module
● Power module

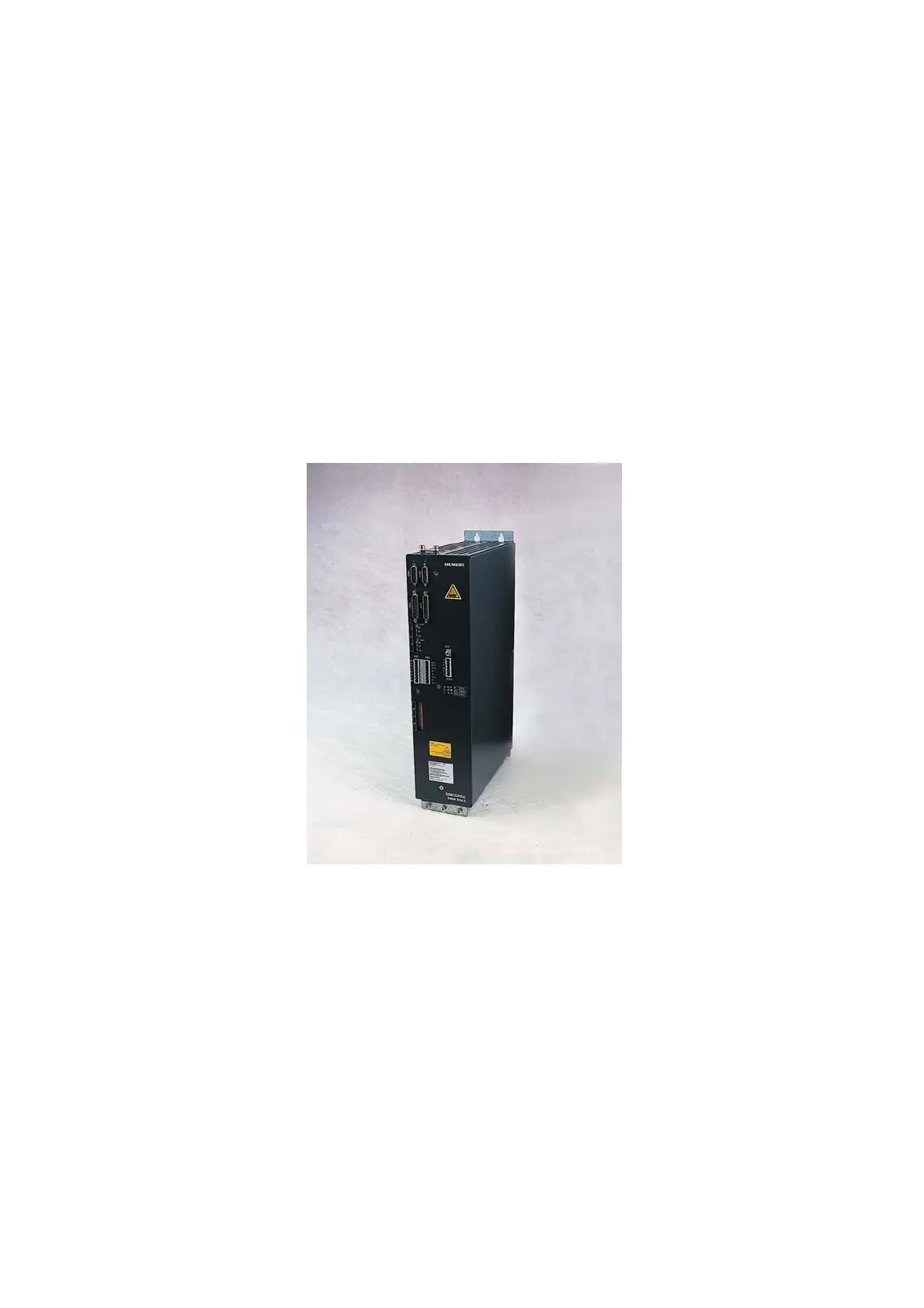

Fig.1-1 SIMODRIVE base line A (1-axis/2-axes module, V1/V2)
SIMODRIVE base line A SIMODRIVE base line A can be ordered with the following two
versions: versions:
● V1: 1-axis version, motor static torque of 6Nm, 11Nm, 8Nm, 16Nm;
● V2: 2-axes version, motor static torque of 3+3Nm, 3+6Nm, 3+8Nm,
6Nm+8Nm, 6+6Nm, 8+8Nm.
SIMODRIVE base line A SIMODRIVE base line A is mainly used together with SINUMERIK
application 802C and SINUMERIK 802C base line at present. With the application
of SIMODRIVE base line A, this solution shows an outstanding
performance price ratio.
