Installation
SIMODRIVE base line A Start-Up 2-25

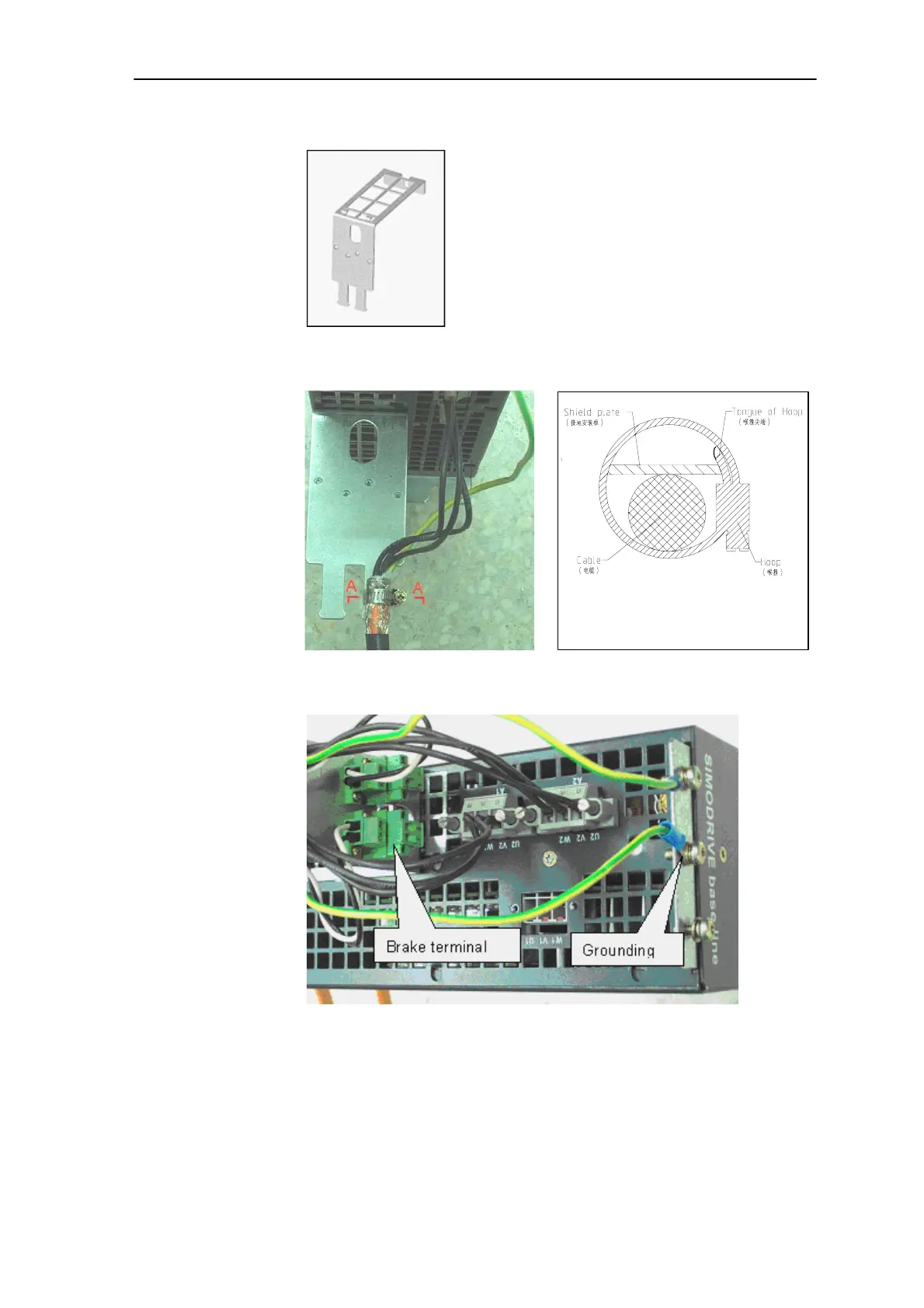

Fig.2-12 Shielded plate
Section Drawing of Cable Grounding A ~ A
Note: When cable grounding, the tongue of hoop must be separated from
the cable and located at each side of shield plate, so as to prevent
damaging the cable.
Fig.2-13 Mounting shielded plate
Fig.2-14 Connection of brake terminal
