7.3 Spare parts for SIMODRIVE POSMO A
7-260
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
7.3.3 Connection module as spare part
We recommend the following procedure if a connection module is to
replaced:
Caution
The positioning motor must be brought into a no–voltage condition
before the connection module is replaced.
not to scale
Drive unit
Connection module
Connection cover
Cheese-head screw
M3 x 6 - 8.8
SN 60730
Torx T10
max. 1.8 Nm

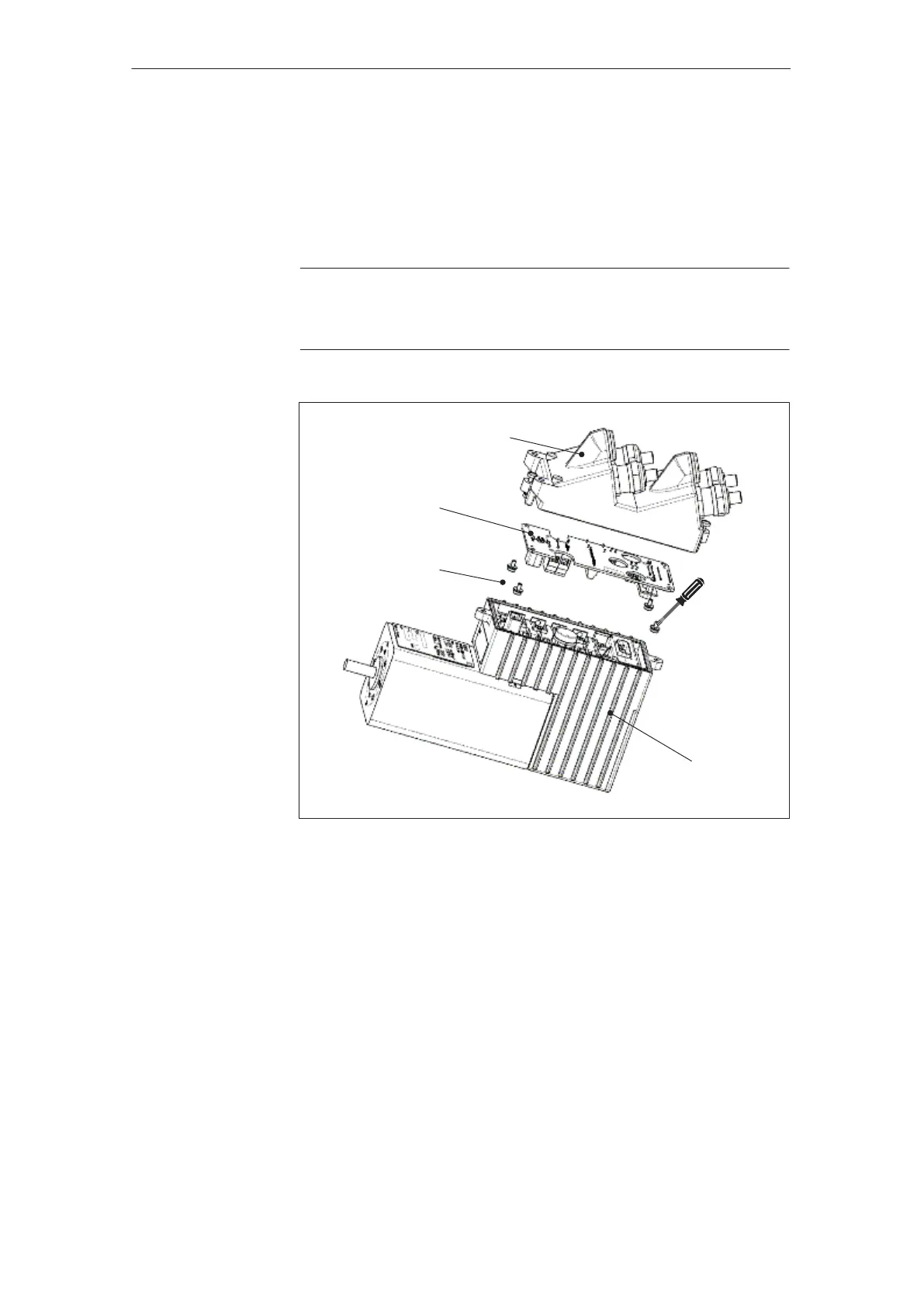

Fig. 7-2 Replacing the connection module, e. g. SIMODRIVE POSMO A – 75 W
The following are required to replace the connection module:
1. Tools
– Screwdriver Size 4 (1.0 x 6.5)
– Screwdriver Torx T10
2. New connection module
Replacing the
connection
module
What is required to
replace the con-
nection module?
