Siemens SIMOTICS S-1FK2 - Dimension Drawing 1 F☐2☐04

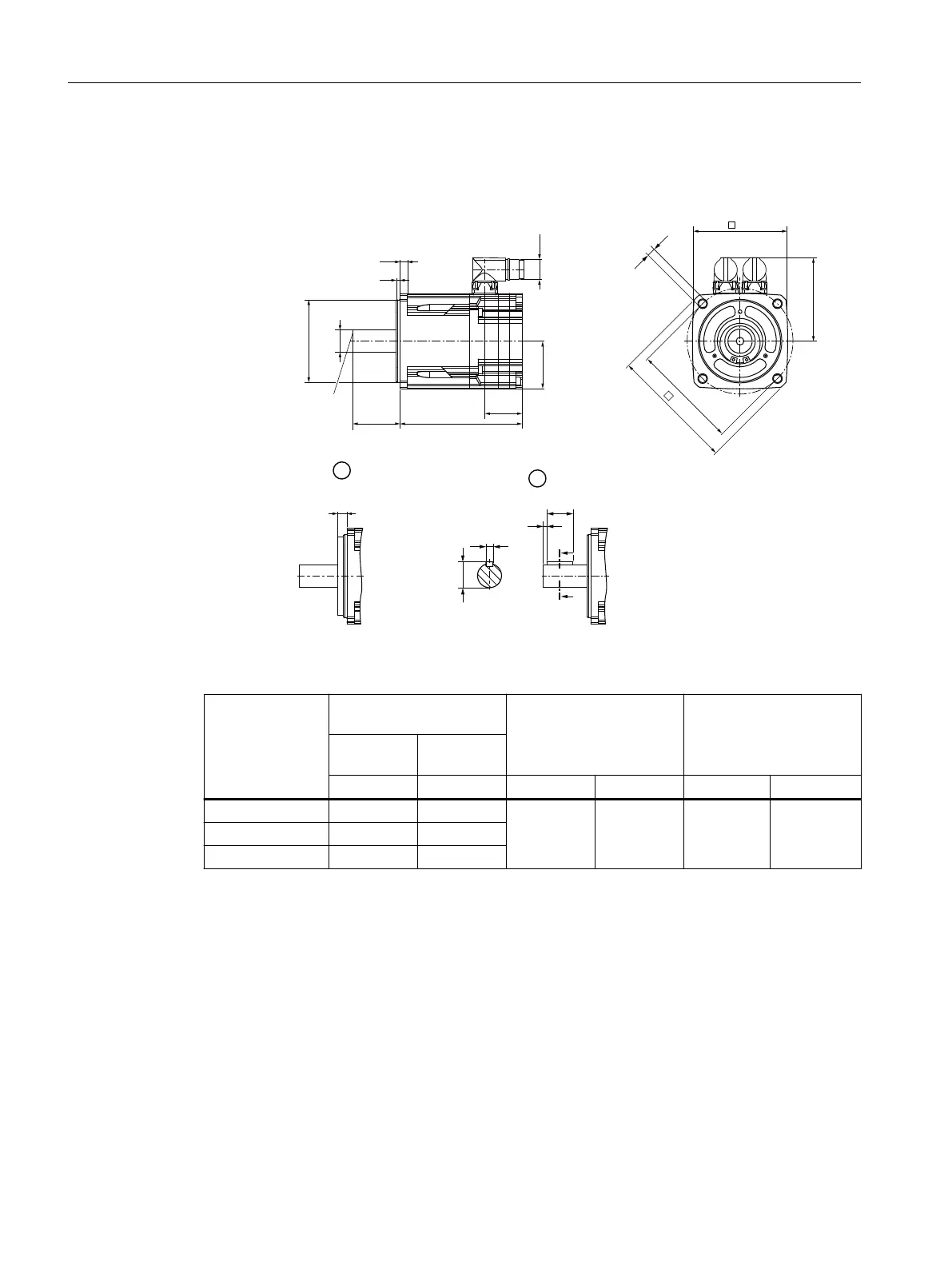

9.2 Dimension drawing 1F☐2☐04
The motor has the following dimensions in the following frame sizes:






%*/%3.GPS
%*/%3.GPS








LL


.
K

"
"
""
'௑௑
E
M

① Option with shaft sealing ring
② Option with feather key
Motor frame size Overall length of the mo‐
tor
Shaft option "0" or "1" Shaft option "2"
without
brake
with brake
k / mm k1 / mm d / mm l / mm d / mm l / mm
1F☐2104-4 98 142 19 (k6) 40 14 (k6) 23
1F☐2☐04-5 126 170
1F☐2☐04-6 144 188
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
Assembly drawings/dimension sheets
9.2 Dimension drawing 1F☐2☐04
1FK2 Synchronous Motors for SINAMICS S120
150 Con󹪝guration Manual, 02/2022, A5E46927724B AD
