9.7 Dimension drawing 1F☐2210

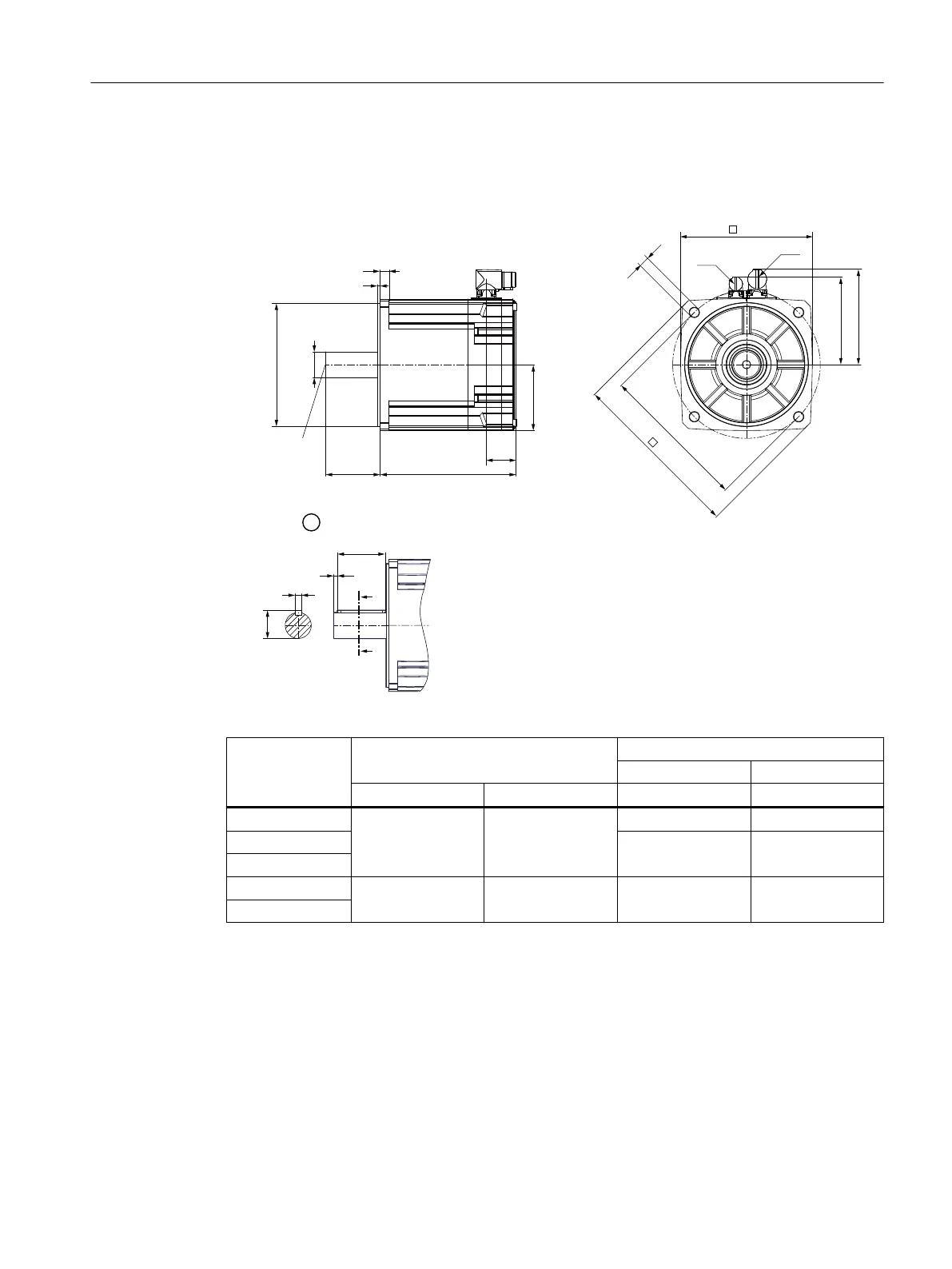

The motor has the following dimensions in the following frame sizes:



I
'௑

%*/%3.

LL







""
"
"

K

L



.
H
① Option with feather key
Motor frame size Connectors Overall length of the motor
without brake with brake
g1 h1 k / mm k1 / mm
1F☐2210-3A☐ M23 139 198 257
1F☐2210-4AB 223 282
1F☐2210-4AC
1F☐2210-4AF M40 159 248 307
1F☐2210-5A☐
You will 󹪝nd further dimensions in the dimension drawings in the relevant catalog.
The DT CONFIGURATOR supports you when con󹪝guring your drive.
In the DT CONFIGURATOR - you can simply and quickly 󹪝nd
• Technical data
• Characteristics
• dimension drawings
• 2D/3D CAD data
Assembly drawings/dimension sheets
