9.4 Dimension drawing 1F☐2205

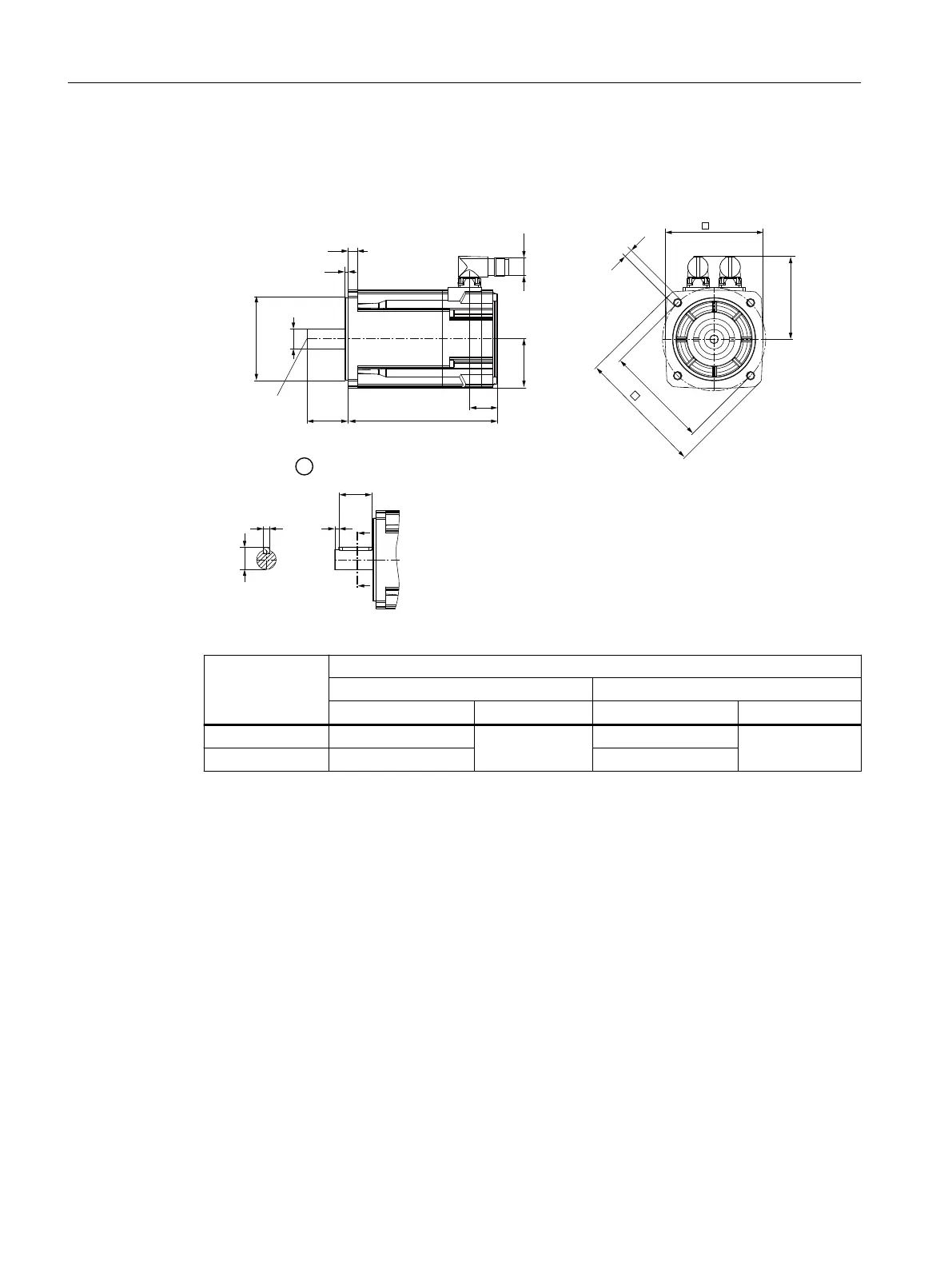

The motor has the following dimensions in the following frame sizes:
'
%*/%3.
.
LL
L
K
""
"
"
PP
① Option with feather key
Motor frame size Overall length of the motor
without brake with brake
k / mm o / mm k1 / mm o1 / mm
1F☐2205-2 145 41 188 53
1F☐2205-4 177 220
You will nd further dimensions in the dimension drawings in the relevant catalog.
Assembly drawings/dimension sheets
9.4 Dimension drawing 1F☐2205
1FK2 Synchronous Motors for SINAMICS S120
152 Conguration Manual, 02/2022, A5E46927724B AD
