3.9 Vibrational behavior
Vibration severity grade
Motors with keyway are balanced by the manufacturer using a half-key.
The vibration response of the system at the location of use is in󹪞uenced by output elements, any
built-on parts, the alignment, the installation, and external vibrations. This can change the
vibration values of the motor.
The motors conform to vibration severity grade A according to EN 60034-14 (IEC 60034-14).
The speci󹪝ed values refer only to the motor. The installation-dependent system vibration
behavior can increase these values at the motor.
The vibration severity grade is maintained up to the rated speed (n
N
)
OSNJO
(SBEF"
F꫻QFSN
NNT
W








       


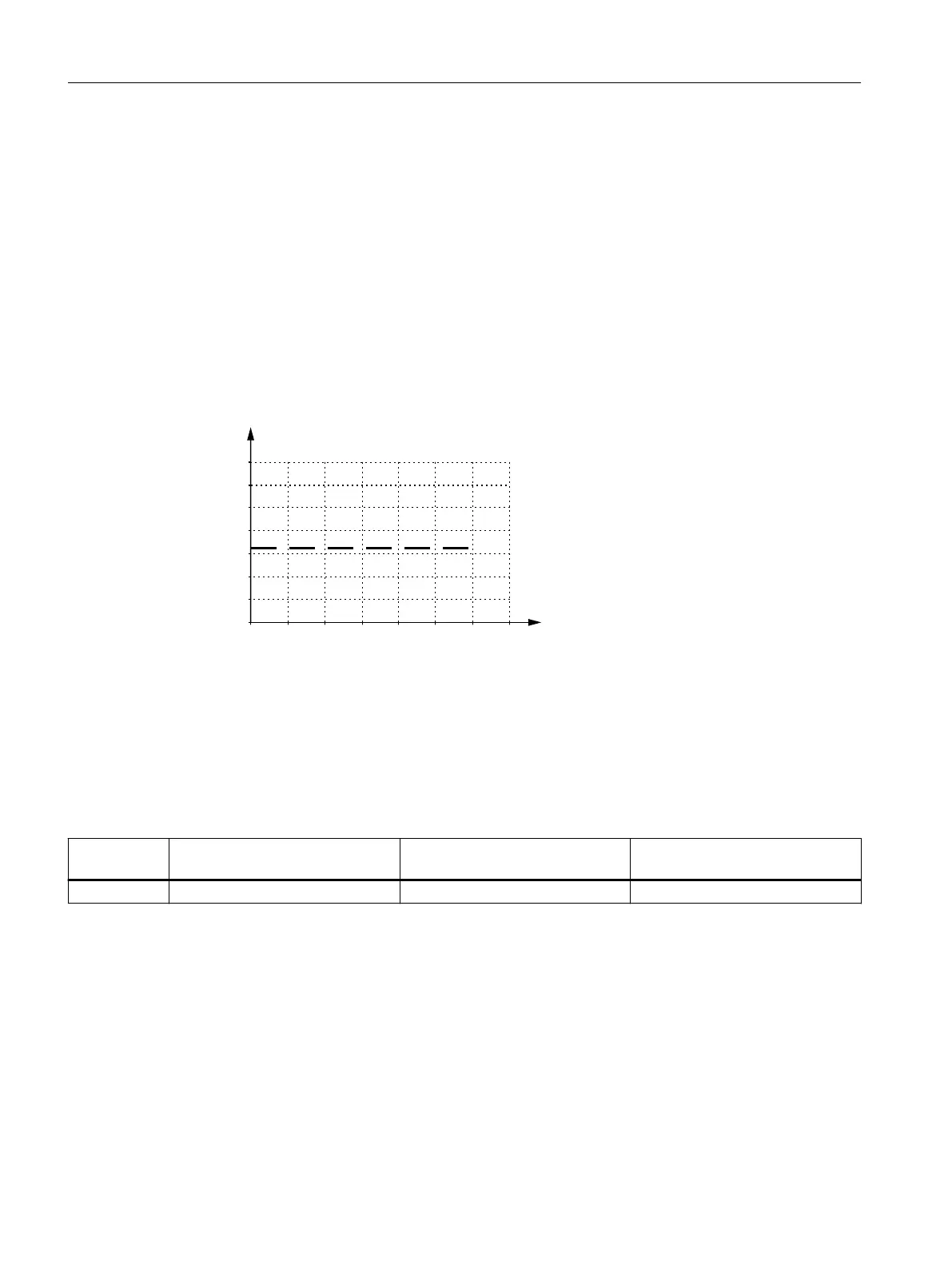

Figure 3-11 Vibration severity levels
Vibration response
Comply with the vibration values in the following table to ensure perfect functioning of the
motor and a long service life.
Motor Vibration velocity
V
rms
to ISO 10816
Vibration acceleration
a
peak
axial
Vibration acceleration
a
peak
radial
1F☐2☐☐☐ max. 4.5 mm/s 50 m/s
2
50 m/s
2
The measuring equipment must ful󹪝ll the requirements of ISO 2954 to evaluate the vibration
velocity
Select the measuring locations according to ISO 10816-1, Section 3.2.
The vibration acceleration is evaluated in the frequency range from 10 Hz … 2000 Hz. The
maximum peak in the measurement time range is taken into consideration.
The vibration values must not exceed the speci󹪝ed limits at any measuring location.
Mechanical properties
3.9 Vibrational behavior
1FK2 Synchronous Motors for SINAMICS S120
54 Con󹪝guration Manual, 02/2022, A5E46927724B AD
