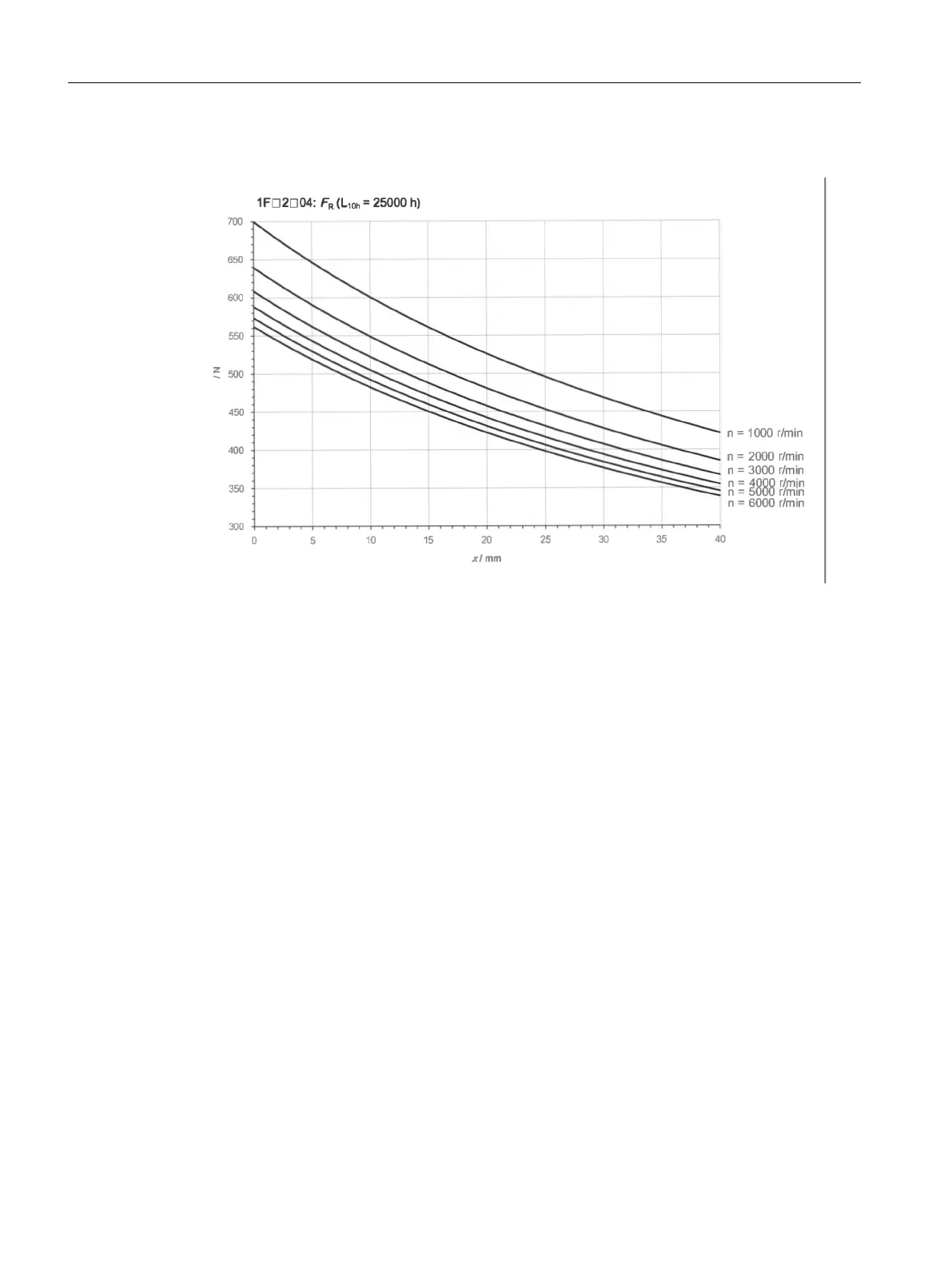

Radial force diagram 1F☐2☐04
Figure 3-3 Maximum permissible radial force F
R
at a distance x from the shaft shoulder for a nominal
bearing lifetime of 25000 h.
Mechanical properties
3.6 Radial and axial forces
1FK2 Synchronous Motors for SINAMICS S120
44 Conguration Manual, 02/2022, A5E46927724B AD
