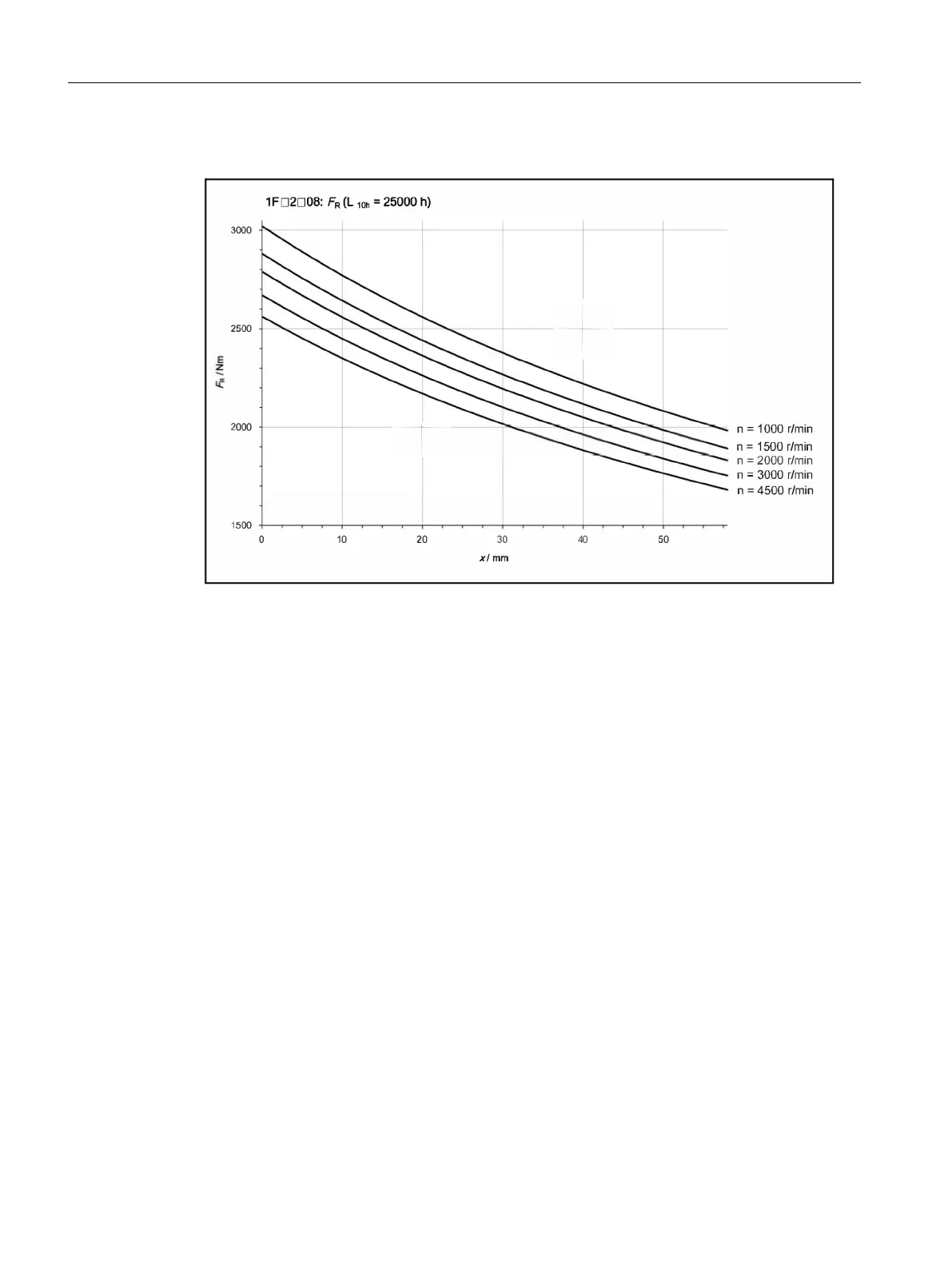

Radial force diagram 1F☐2208
Figure 3-7
Maximum permissible radial f
orce
F
R
at a distance x from the shaft shoulder for a nominal
bearing life
time of 25000 h.
Mechanical properties
3.6 Radial and axial forces
1FK2 Synchronous Mo
tors f
or SINAMICS S120
48
Conguration
Manual, 02/2022, A5E46927724B AD
49
51
Table of Contents
Introduction
5
Table of Contents
9
Fundamental Safety Instructions for the SIMOTICS Documentation
13
Fundamental Safety Instructions
13
General Safety Instructions
13
Equipment Damage Due to Electric Fields or Electrostatic Discharge
18
Security Information
18
Residual Risks of Power Drive Systems
19
Description of the Motors
21
Highlights and Benefits
21
Motors Used for the Intended Purpose
22
Technical Characteristics and Ambient Conditions
24
Directives and Standards
24
Technical Features
27
Torque Overview
28
Ambient Conditions
29
Derating Factors
30
Selection Based on the Article Number
33
Rating Plate Data
35
Mechanical Properties
37
Cooling
37
Degree of Protection
39
Types of Construction
41
Bearing Versions
42
Shaft Extension
43
Radial and Axial Forces
44
Axial Forces
44
Radial Forces
44
Sample Calculation of the Belt Pre-Tension
52
Radial Eccentricity, Concentricity and Axial Eccentricity
53
Balancing
55
Vibrational Behavior
56
Noise Emission
58
Bearing Change Interval
59
Service and Inspection Intervals
60
Motor Components
61
Encoder
61
Holding Brake
62
Types and Modes of Operation of the Holding Brakes
62
Properties
63
Technical Specifications
64
Configuration
67
Configuring Software
67
SIZER Configuration Tool
67
Configuring Procedure
68
Clarify the Drive Type
69
Define the Boundary Conditions and Incorporate Them into the Automation System
69
Define the Load Case, Calculate the Maximum Load Torque and Determine the Motor
70
Output Coupling
75
Brake Resistances (Armature Short-Circuit Braking)
76
Description of Function Braking Resistor
76
Dimensioning of the Construction of Braking Resistors
77
Dimensioning of Braking Resistors
80
Technical Data and Characteristics
83
Explanations
83
Motor Overview / Assignment Motor Modules / Power Cables
87
Data Sheets and Characteristics
97
High Dynamic
97
1Fk2103-2Ah
97
1Fk2103-4Ah
99
1Fk2104-4Af
100
1Fk2104-4Ak
101
1Fk2104-5Af
102
1Fk2104-5Ak
103
1Fk2104-6Af
104
1Fk2105-4Af
105
1Fk2105-6Af
106
1Fk2106-3Af
107
1Fk2106-4Af
108
1Fk2106-6Af
109
Compact
110
1Fk2203-2Ak
110
1Fk2203-4Ak
111
1Fk2204-5Af
112
1Fk2204-5Ak
113
1Fk2204-6Af
114
1Fk2205-2Af
115
1Fk2205-4Af
116
1Fk2206-2Af
117
1Fk2206-4Af
118
1Fk2208-3Ac
119
1Fk2208-4Ac
120
1Fk2208-5Ac
121
1Fk2210-3Ab
122
1Fk2210-3Ac
123
1Fk2210-4Ab
124
1Fk2210-4Ac
125
1Fk2210-5Ac
126
High Inertia
127
1Fk2306-2Ac
127
1Fk2306-4Ac
128
1Fk2308-3Ab
129
1Fk2308-4Ab
130
Preparation for Use
131
Transporting
131
Bearings
135
Electrical Connection
137
Permissible Line System Types
137
Circuit Diagram of the Motor
138
System Integration
139
Connection Notes
139
Motor Connection
139
Rotating the Connector on the Motor
140
Line Connection
142
Signal Connection
142
Connecting to a Converter
143
Selecting and Connecting the Cables
143
Handling the Quick-Action Locking
148
Routing Cables in a Damp Environment
149
Assembly Drawings/Dimension Sheets
151
Dimension Drawing 1F☐2☐03
151
Dimension Drawing 1F☐2☐04
152
Dimension Drawing 1F☐2105
153
Dimension Drawing 1F☐2205
154
Dimension Drawing 1F☐2☐06
155
Dimension Drawing 1F☐2208
156
Dimension Drawing 1F☐2210
157
Glossary
159
