Motor components and options
4.2 Options
S-1FT7 synchronous motors
102 Configuration Manual, 09/2018, A5E45099423B AA
4.2.4.11
Option Q13 - Encoder sealing
Z option Q13 improves sealing at the flange sealing surfaces of the encoder and power
connector on the motor with wetting sealant adhesive.
Encoder replacement is only possible in a specialist workshop or at the manufacturer's.
Option Q13 is only available for motors with DQI encoders that have the following letters at
the 14th position of the article number:
Article number
Encoder type
1FT7☐☐☐-☐☐☐☐☐-☐B☐☐
AS24DQI
1FT7☐☐☐-☐☐☐☐☐-☐K☐☐
1FT7☐☐☐-☐☐☐☐☐-☐C☐☐
AM24DQI
1FT7☐☐☐-☐☐☐☐☐-☐L☐☐
4.2.4.12
Option Q41-Q44 - Connector outlet directions for fixed fan connectors at 1FT7117
force-ventilated
With option Q41 ... Q44 you can select the outlet direction of the fixed fan connector,
e. g. 1FT7117-7SC71-1LH0-Z Q4☐
1)
.
1
Fan connector, outlet direction Q41 - transverse right
A
DE - Drive end
B
NDE - Non drive end

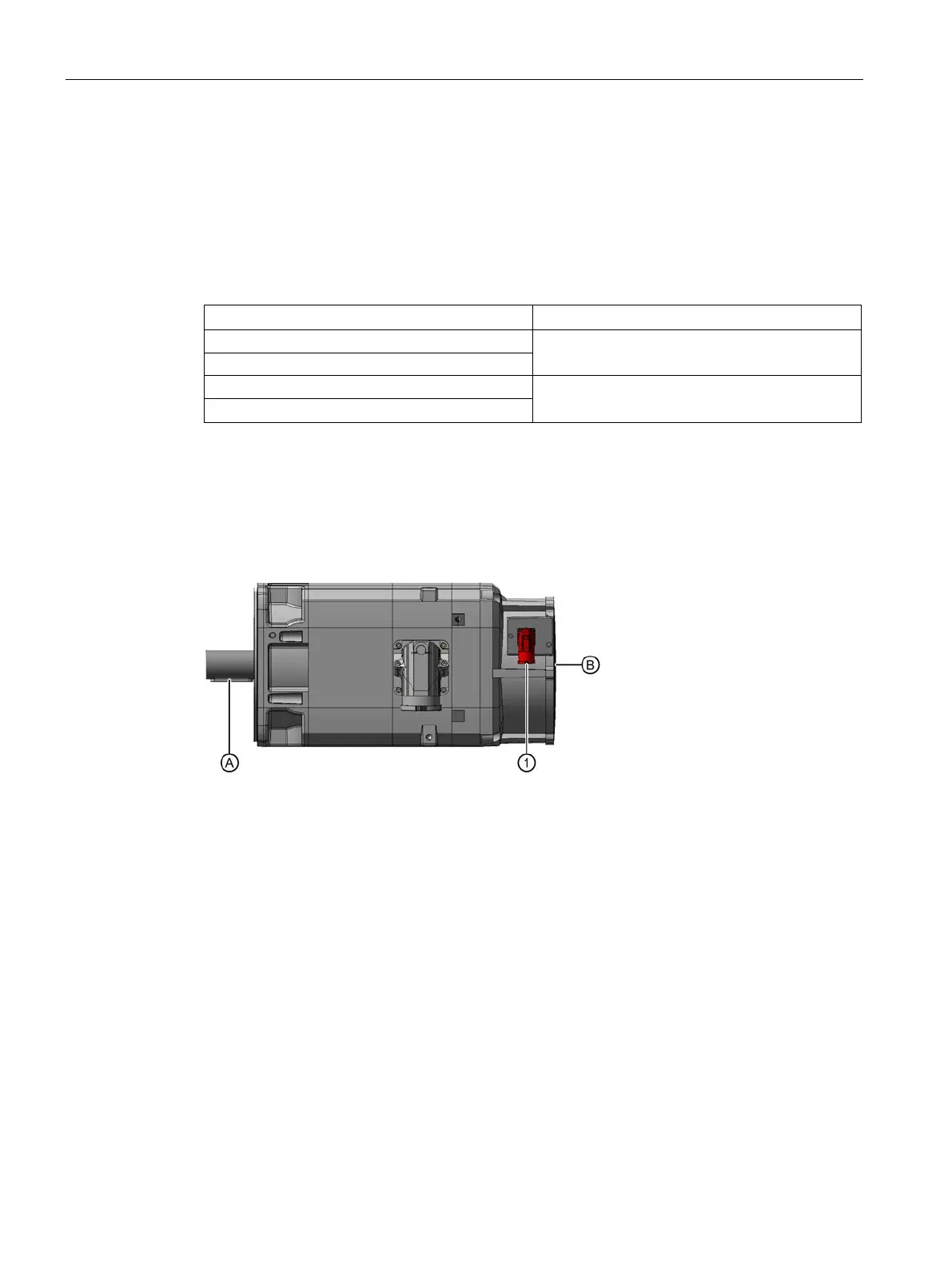

Figure 4-18 Outlet direction of the fixed fan connector
1) Selectable connector outlet direction of the fan connector in the following table
Table 4- 9 Outlet directions of the fixed fan connector
Q41 Transverse to the right
Q43 Axial to NDE
Q42
Transverse to the left
Q44
Axial to DE
