Motor components and options
4.2 Options
S-1FT7 synchronous motors
80 Configuration Manual, 09/2018, A5E45099423B AA
The following options are available for the 1FT7.
● Option B02 - factory certificate
● Option J☐☐ - planetary gearbox mounting
● Option K20 - Reinforced bearing
● Option L03 - increased vibration stress
● Option L06 - increased shock loads
● Option N05 - Alternative shaft geometry
● Option N16 - Increased chemical resistance
● Option N27 - Brake with low moment of inertia
● Option N40 - Increased resistance to industrial cleaning
● Option Q12 - sealing air connection (only in conjunction with IP67)
● Option Q13 - Encoder sealing
● Option Q41...Q44 - fan connector, fixed,
– transverse right or left
– axial DE or NDE
● Option X.., K23, K24 - painting
● Option Y84 - customer data on the rating plate
You can recognize the selected options on the rating plate by the following digits.
"-Z" is the code for an option in the article number
2 "X04" as example for identification of the options. Up to 2 options, separated by slashes, are
shown on the rating plate.
Field for customer data for the option Y84 (max. 20 characters, any distribution)

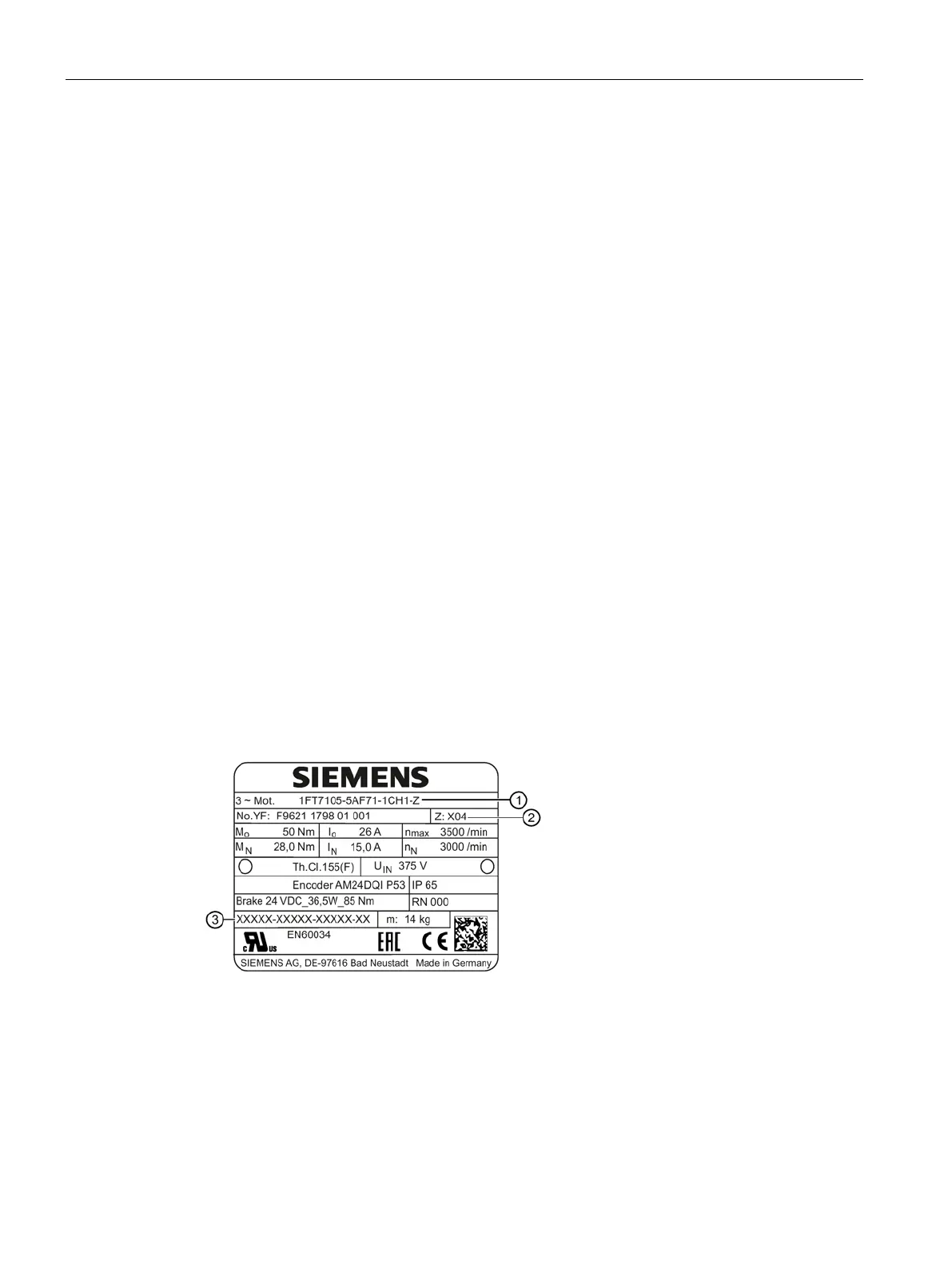

Figure 4-4 Rating plate 1FT7 code options
