Siemens SIMOTICS S-1FT7 - Radial Force Diagrams

Mechanical properties
3.7 Radial and axial forces
S-1FT7 synchronous motors
56 Configuration Manual, 09/2018, A5E45099423B AA
3.7.3
Radial force diagrams
Radial force 1FT703☐
1
Permissible radial force on the shaft

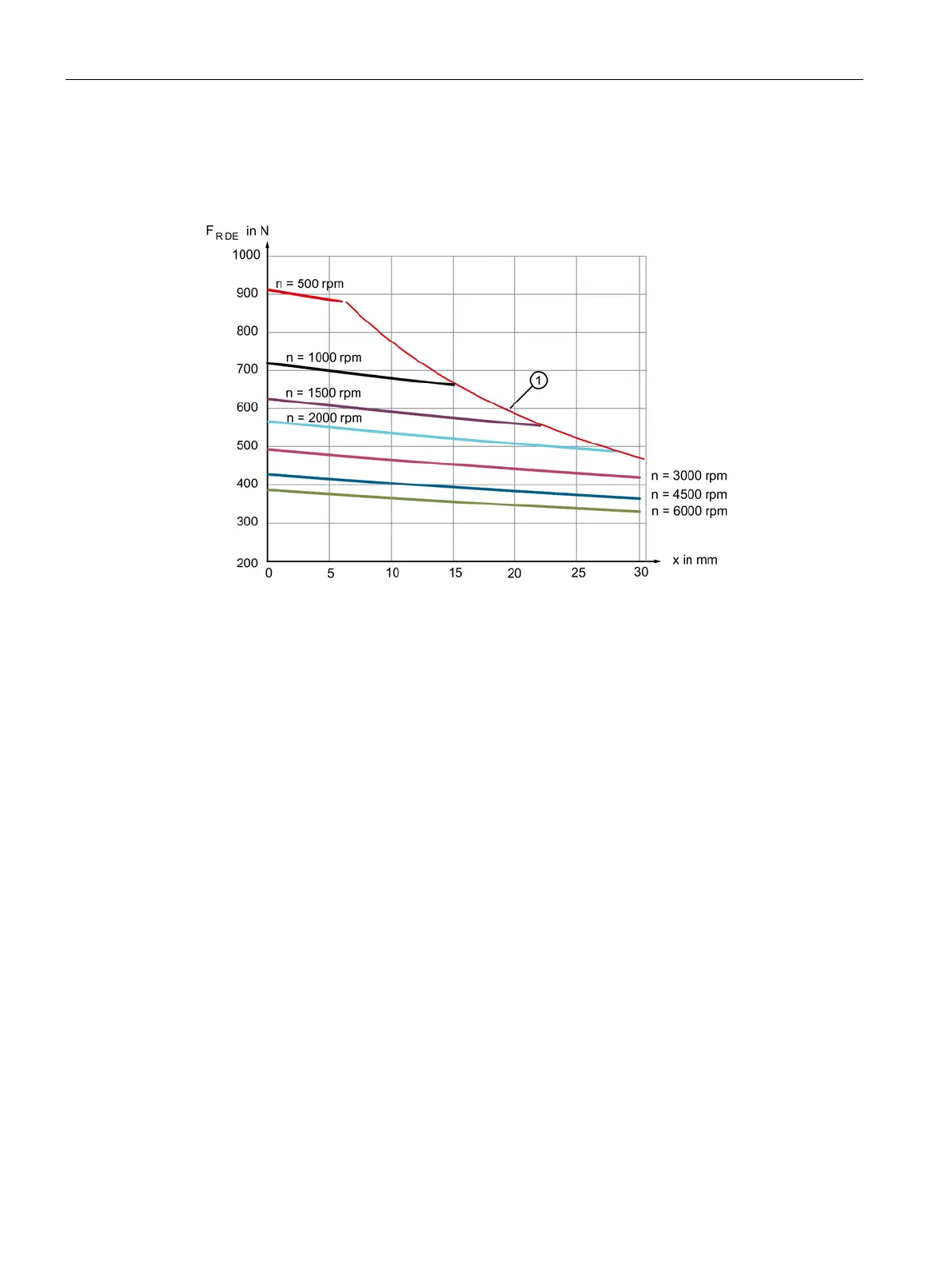

Figure 3-6 Radial force F
R
at a distance x from the shaft shoulder for a statistical bearing lifetime of
25000 hours
