Motor components and options
4.2 Options
S-1FT7 synchronous motors
82 Configuration Manual, 09/2018, A5E45099423B AA
Option B02 - Manufacturer’s test certificate
Option B02 provides a manufacturer’s test certificate according to DIN 55 350 Part 18 for
motors according to DIN EN 10204:2004 (DIN 50049).
You will find the 1FT7 motors that are available with option B02 in Section "Limited validity."
The manufacturer’s test certificate states and certifies the values of the motor for
● the induced voltage at 1000 rpm
● the winding resistance values (ohm)
● confirmation that the high-voltage test has been passed.

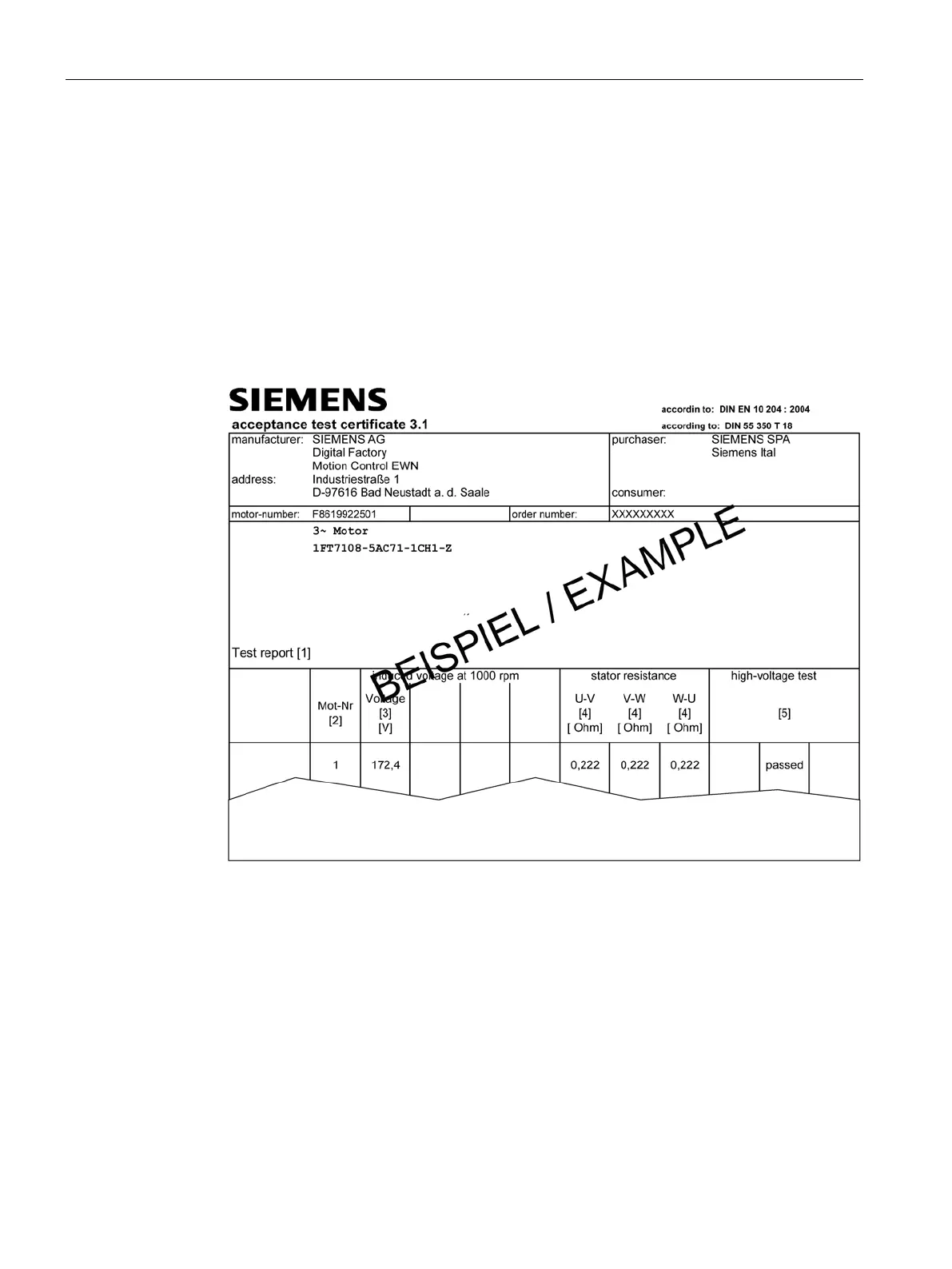

Figure 4-5 Manufacturer’s test certificate (example)
Limited validity for 1FT7 motors
Option B02 can be ordered for all 1FT7 motors with the exception of the
● core types
● 1FT7117
● 1FT713☐
