3.1.3.4
Coolant connection
Connection to the cooling circuit
The motor is connected to the cooling circuit by means of two female threads on the rear of
the motor. Which one is the inlet and which one is the outlet can be freely connected.
Cooling water connection for 1FT7: G 1/4 "
1
Ports (internal thread) for the water cooling

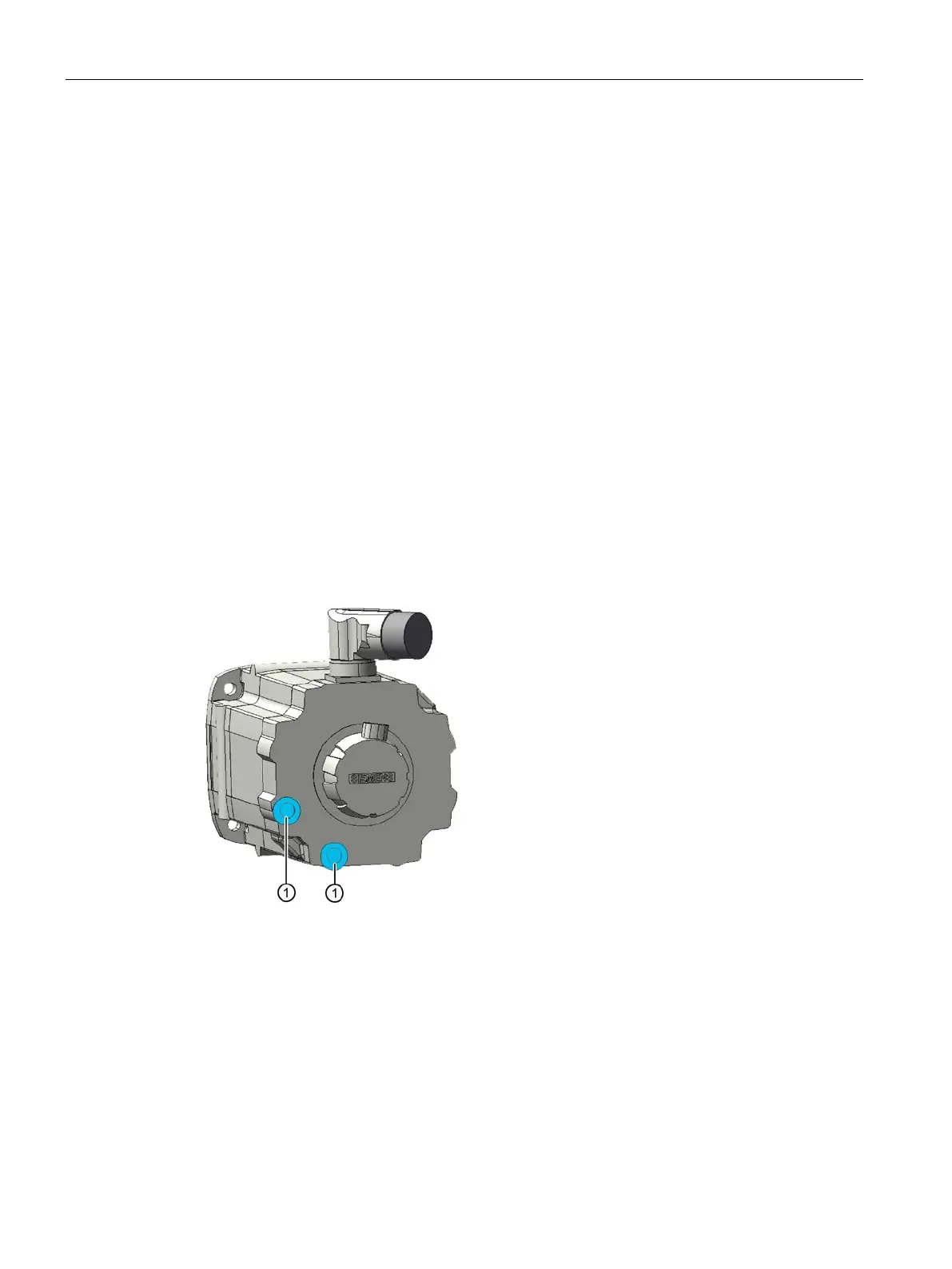

Figure 3-4 1FT7 water cooling connection
To ensure mechanical decoupling, the devices should be connected by means of hoses. See
Table "Materials and components of a cooling circuit"
