Preparation for use
7.1 Transporting
S-1FT7 synchronous motors
362 Configuration Manual, 09/2018, A5E45099423B AA
Transporting the unpacked motor
● Use suitable load suspension devices when transporting and installing the motor.
Lifting and transporting the motor using slings up to SH 80
Up to a shaft height of 80 mm, you can lift and transport the motor with slings.

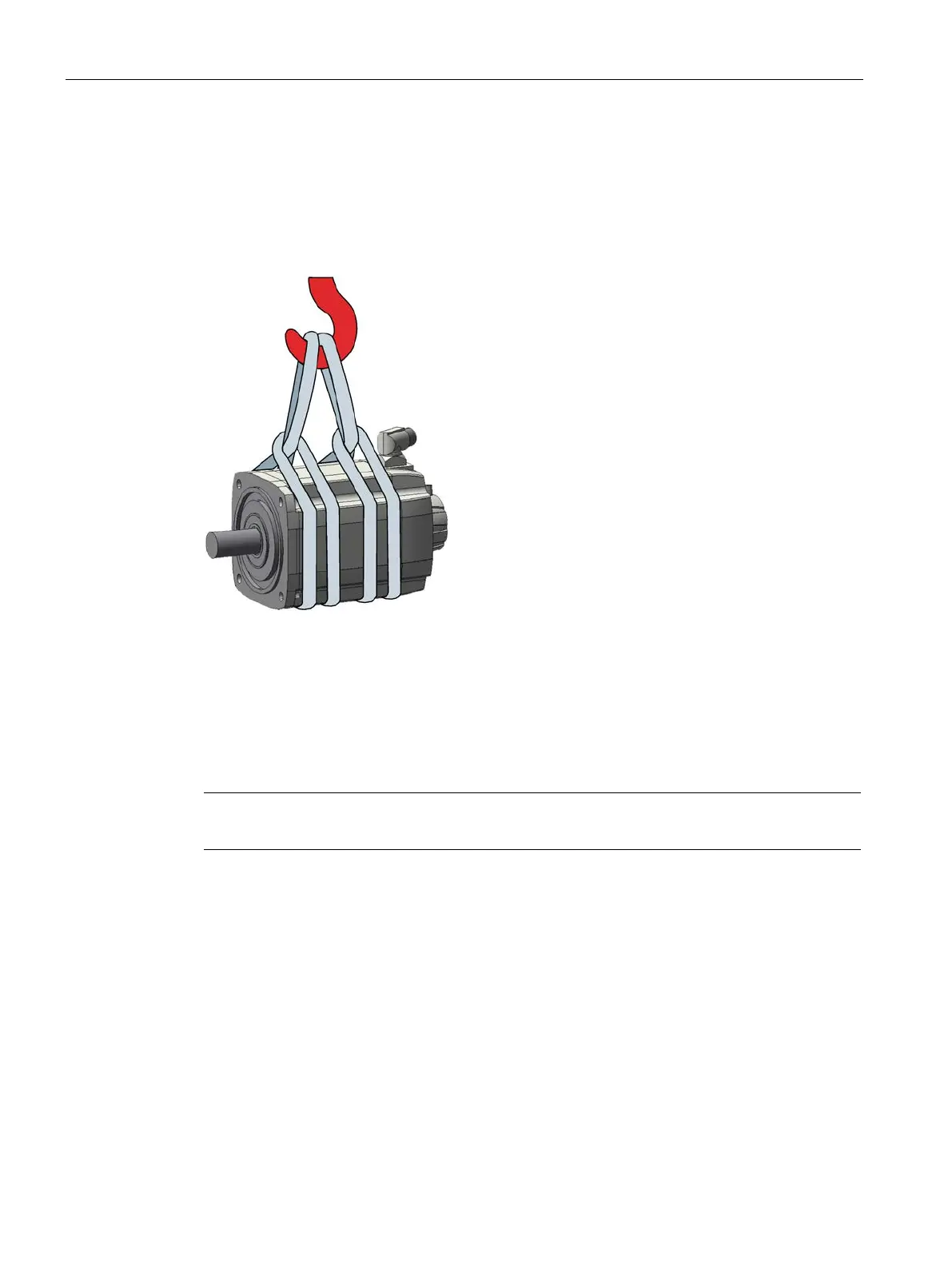

Figure 7-1 Transporting with slings
Lifting and transporting with lifting eyes as of SH 80
For motors as of a shaft height of 80 mm, use lifting eyes and a beam to lift and transport the
motor.
The threads for the lifting eyes are provided for 1FT708☐, 1FT710☐ and 1FT7117 motors in
M8 and for 1FT713☐ motors in M10.
Note
Use the threads for t
he lifting eyes exclusively for transportation.
