Electrical connection
8.3 System integration
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
395

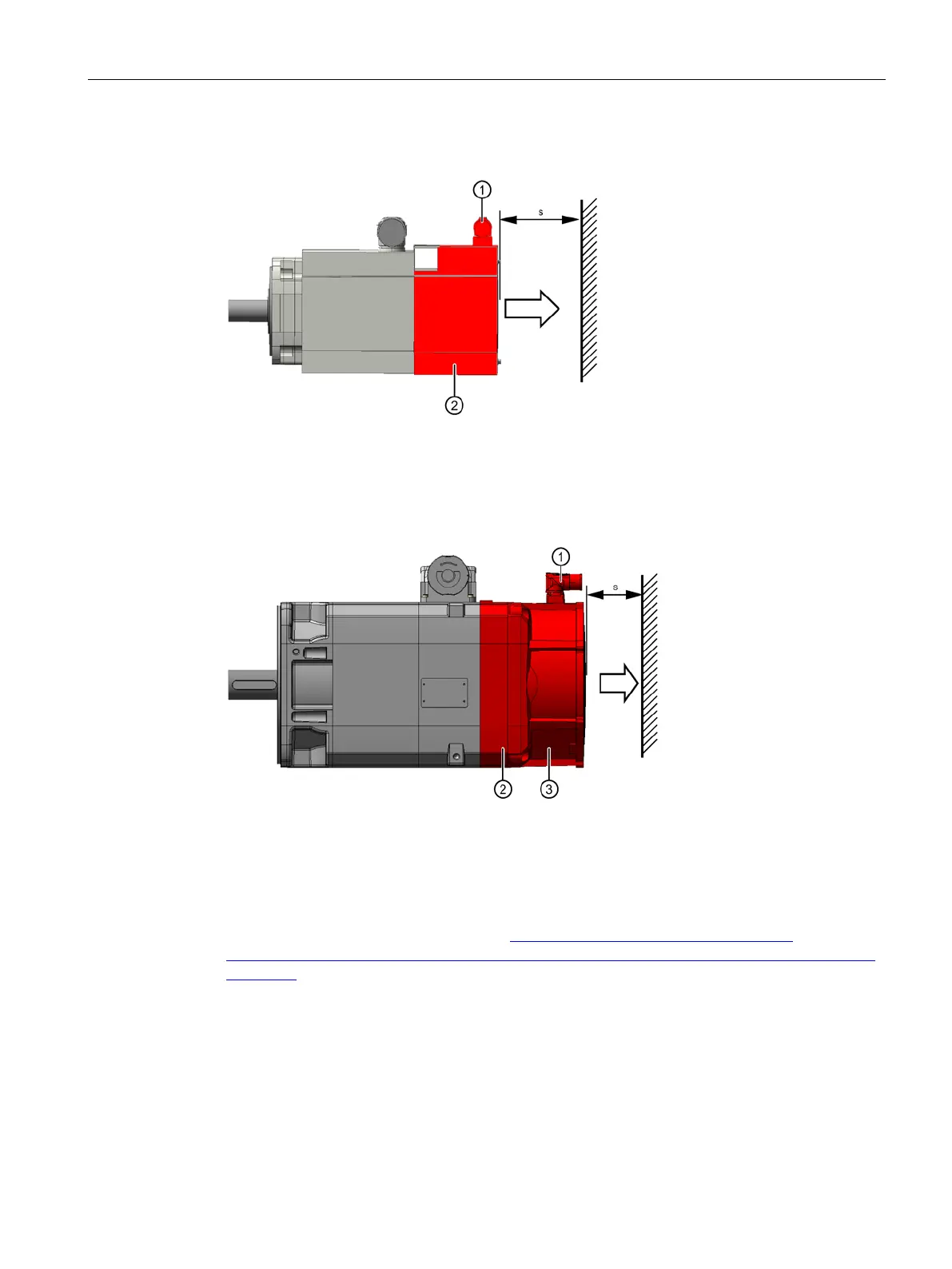

Minimum clearance for 1FT706 ... 1FT710
1
Fan connector
2
Fan cover
s
Minimum clearance 125 mm
Minimum clearance for 1FT713
1
Fan connector
2
Intermediate flange
3
Fan housing
s
Minimum clearance 65 mm
Detailed information on suitable signal cables is provided in "Chapter, "MOTION-CONNECT
connection systems" in Catalog D 21.4 (
https://intranet.for.siemens.com/org/i-dt-
mc/de/motion-control/support/infomaterial/kataloge/d-21-4-sinamics-s120-simotics/Seiten/d-
21-4.aspx)".
