Motor components and options
4.2 Options
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
93
Table of compatibility of 1FT7 N05 with 1FT5
1FT7034-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7042-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05 Diam. 14x30 mm 1FT504... compatible compatible
1FT7062-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7064-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z: Z=N05
Diam. 19x40 mm 1FT506... not compatible compatible
1FT7082-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7084-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7086-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
Diam. 24x50 mm 1FT507... compatible compatible
1FT7102-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7105-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
1FT7108-5Aâ–¡7â–¡-â–¡â–¡â–¡â–¡-Z; Z=N05
Diam. 32x58 mm 1FT510... compatible compatible
* The shafts are not compatible with the following motors: 1FT5070
-..., 1FT5071-..., 1FT5073-..., 1FT5100-..., 1FT5101-...,
1FT5103-...
** Flange compatibility means the same centering and the same diameter of the hole circle. However, the edge dimens
ion

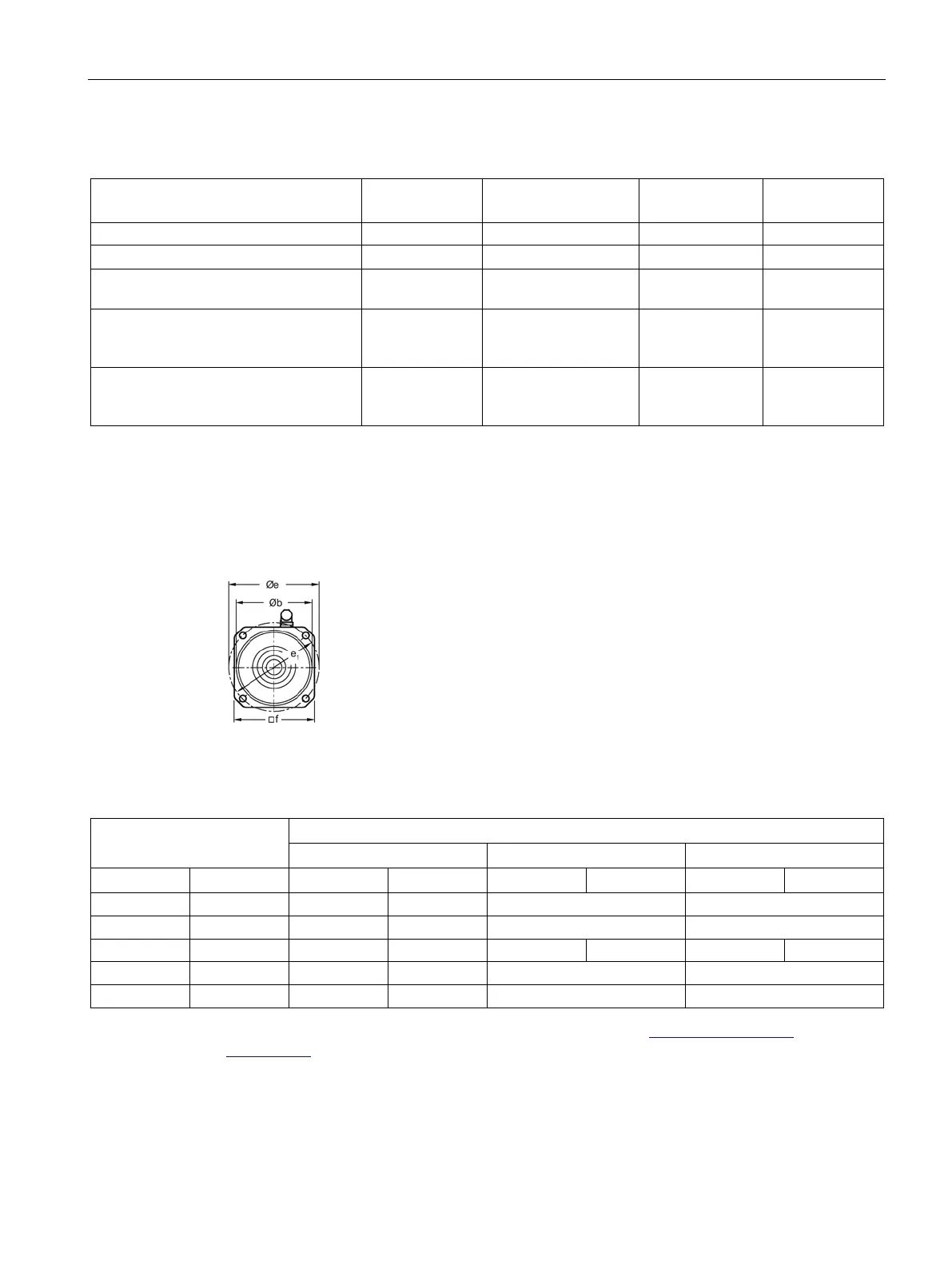

Table for comparison of the flange dimensions of the 1FT7 N05 with 1FT5
Diameter of the hole circle
Diameter of the centering edge
Flange dimensions on the motor
1FT704... 1FT504... 96 92 ∅ 100 ∅ 80
You can find additional information in the "DT Configurator (http://siemens.de/dt-
konfigurator)".
The cantilever force diagrams provided in the Configuration Manual are also valid for 1FT7
servomotors with option N05.
