Siemens SIMOTICS SD User Manual

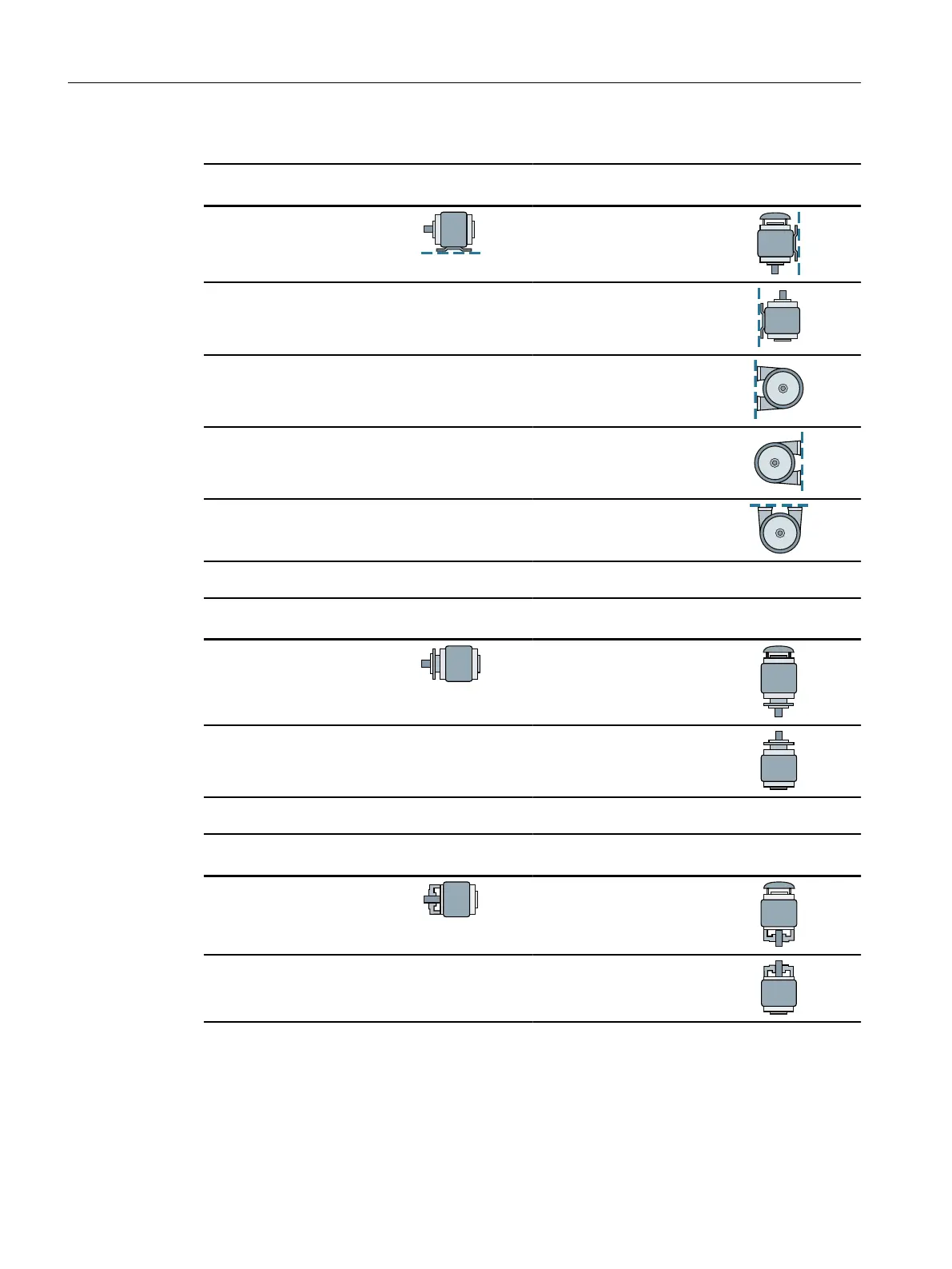

Table 3-2 Type of construction
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB3(IM1001) IM V5 (IM 1011)
  IM V6 (IM 1031)
  IMB6(IM1051)
  IMB7(IM1061)
  IMB8(IM1071)
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB5(IM3001) IM V1 (IM 3011)
  IM V3 (IM 3031)
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB14(IM3601) IM V18 (IM 3611)
  IM V19 (IM 3631)
Description
3.3Installation
1LE5, 1PC4 shaft heights 280 ... 355
